LFN55BM1-DU-G 1/2

Part of the LFN55B-M1 Series

Ordering Code: 0009547

UPC: 098268333183

Lead Free: YES

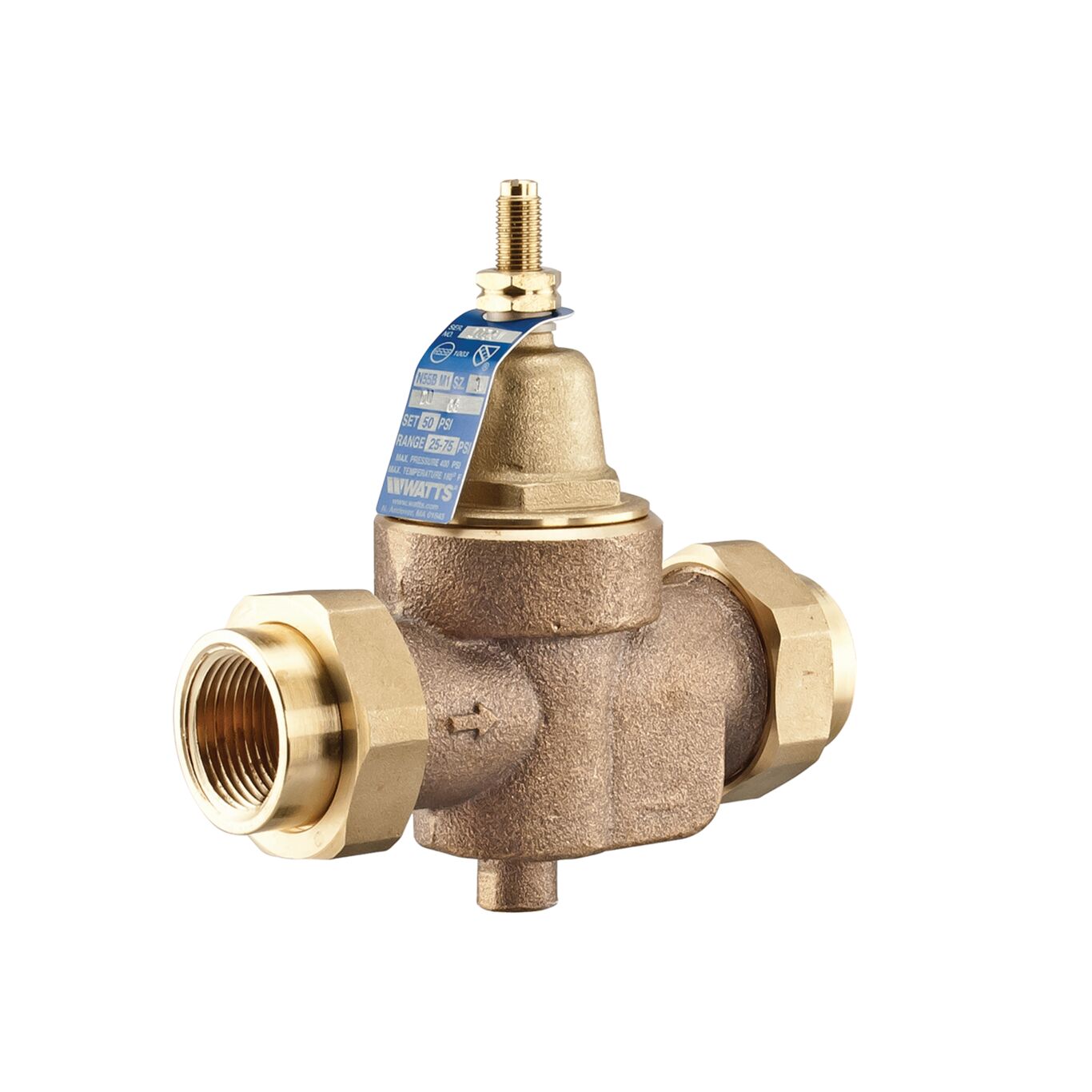

1/2 IN Lead Free Brass Water Pressure Reducing Valve, Double Union, FPT, Adjust 25-75 psi, Max Work 400 psi, Gauge Tapping

  • Sealed spring cage for accessible outdoor or waterworks pit installations
  • Integral stainless steel strainer removable for cleaning
  • Engineered copper-silicon body material
  • Gauge port tapping allows downstream pressure measurements
Specifications
Adjustable Reduced Pressure Range 25 to 75
Adjustable Reduced Pressure Range-BAR 1.8 to 5.2
Body Material Lead Free Copper Silicon Alloy
Brand Watts
Corrosion Resistant Coating No
Disc Material Reinforced EPDM
EAN 098268333183
Gauge Option Gauge Tapping
Inlet Connection Size 1/2 IN
Inlet Connection Type Union Joint
Inlet Thread Type NPT
Lead Free YES
Maximum Operating Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 27.60
Maximum Working Pressure-PSI 400
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 1/2 IN
Outlet Connection Type Union Joint
Outlet Thread Type NPT
Part Number 0009547
Series LFN55B-M1
Standard Reduced Pressure Setting-BAR 3.40
Standard Reduced Pressure Setting-PSI 50
Strainer Yes
Strainer Material Stainless Steel
Thermal Expansion Bypass Yes
Trim Material Bronze
Valve Style Standard
