758G DI SM 8

Part of the 758G Series

Ordering Code: M6762928

UPC: 643925583939

Lead Free: YES

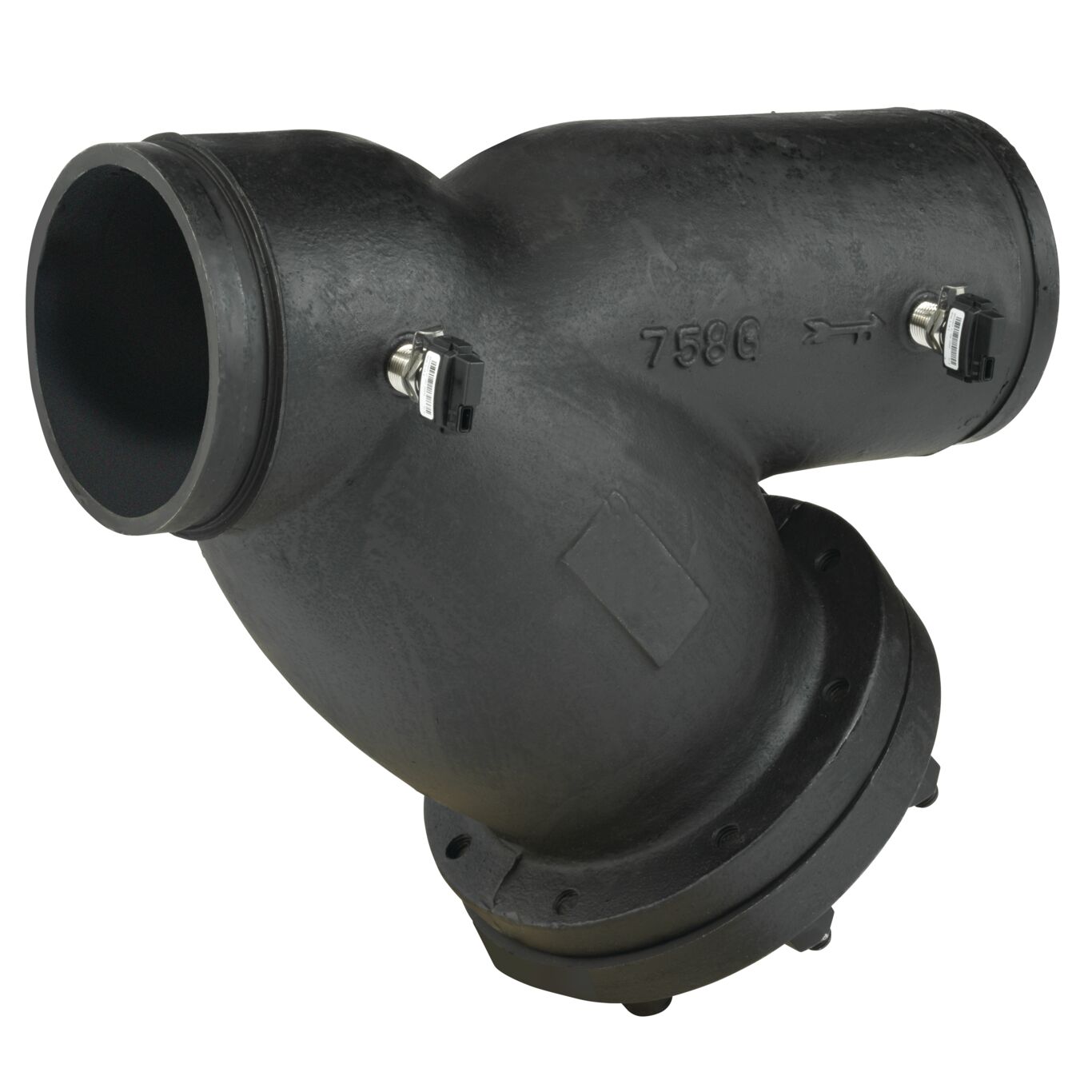

8 IN Ductile Iron Y Smart Strainer, Grooved, Class 300, LOCXEND

This 8 inch grooved ductile iron Y strainer, class 300 is used to filter undesirable particulate from pipelines, thereby protecting other equipment downstream. This LOCXEND(TM) Y strainer is designed for installation in grooved end piping systems. It has a 0.125 perforated 304 stainless steel screen. The threaded blowoff allows for a variety of means of cleaning the unit. This strainer includes two pressure sensors that provide users with realtime strainer basket pressure differential monitoring, data stream, and full basket alerts via BMS connectivity and/or cellular gateway. This enables them to make informed decisions pertaining to maintenance of the strainer. The Smart Strainer provides a proactive way to avoid unnecessary downtime and ensures efficient and smooth operation of the overall system.

Features

Includes two pressure sensors that are installed at the inlet and outlet of the WYE strainer
Activation kit included to enable pressure monitoring feature
Ductile iron
Grooved end connections
0.125 Perf screen
Class 300

Specifications
Blowdown Outlet Connection	Female Threaded
Blowdown Outlet Size	2 IN
Body Material	Ductile Iron
Body Pattern	Y-Pattern
Bolt Material	SAE J429 Gr. 5
Brand	Mueller Steam Specialty
Class Rating	125
Control Type	Does Not Apply To Product
EAN	643925583939
Epoxy Coating Type	None
Flange Material	Ductile Iron
Gasket Material	Non-Asbestos
Grooved Coupling Material	Does Not Apply To Product
Inlet Connection Size	8 IN
Inlet Connection Size-Metric	200 MM
Inlet Connection Type	Grooved Joint
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Operating Temperature-Celsius	296.00
Maximum Operating Temperature-Fahrenheit	565
Maximum Pressure And Temperature	640 psi at 100 Degree F
Maximum Pressure-BAR	44.00
Maximum Pressure-PSI	640
Maximum Working Pressure And Temperature	640 psi at 100 Degree F
Minimum Temperature - Celsius	-28.60
Minimum Temperature-Fahrenheit	-20
Outlet Connection Size	8 IN
Outlet Connection Type	Grooved Joint
Outlet Thread Type	Does Not Apply To Product
Part Number	M6762928
Plug Material	Does Not Apply To Product
Pressure-Temperature Rating	Does Not Apply To Product
Pressure-Temperature Rating-BAR	44 BAR at 38 Degree C
Retainer Cover Material	Ductile Iron
Retainer Cover Type	Bolted
Screen Material	Stainless Steel
Screen Size	ONE_EIGHTH
Seat Material	Does Not Apply To Product
Series	758G
Strainer Type	Wye
WOG Rating	640 psi WOG at 100 Degree F
