Discontinued - Replaced By: 007M1DCDA-OSY-GPM 2

Part of the 007 Series

Ordering Code: 0062666

UPC: 098268574883

Lead Free: NO

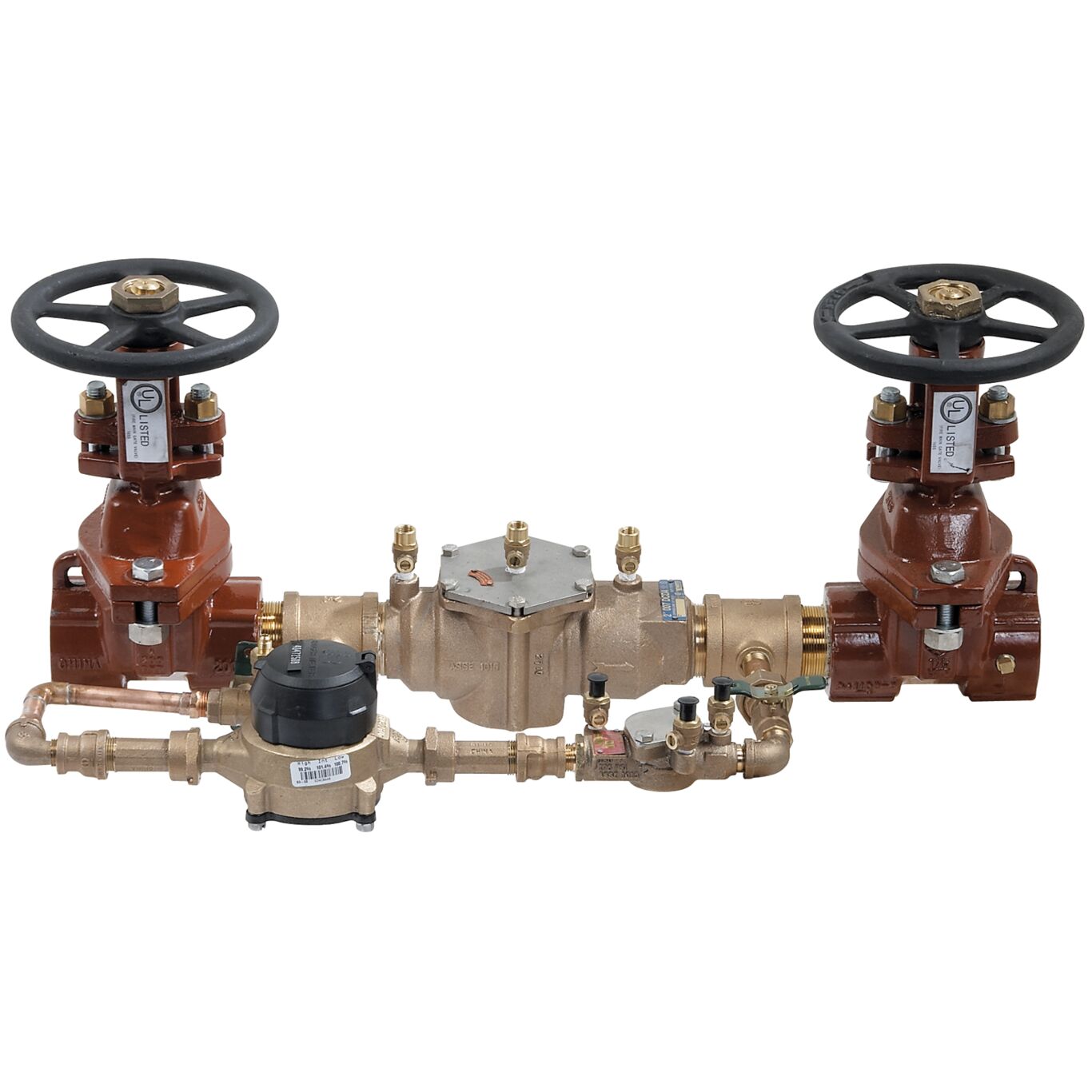

2 In Bronze Double Check Detector Assembly With Osy Shutoff, Gallons/Minute Meter, Single Top Entry

This 2 inch double check detector assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazards such as on fire protection systems and from other contaminants found at the service line entrance. This compact modular design with a single access cover for easy maintenance is approved for horizontal and vertical flow up installation. It consists of a bronze body, outside stem and yoke resilient seated gate valves, four test cocks, and captured spring check valves. It comes with a gallon per minute meter to detect underground leaks and unauthorized water use.

Product Features

  • Furnished with a gallon per minute meter
  • No special tools are required for servicing
  • Bronze body
  • Replaceable seats and discs
Backflow Preventer Type Double Check Detector Assembly
Body Finish Bronze
Body Material Bronze
Brand Name Watts
Bypass Yes
Cap And Tether No
Disc Material Silicone
EANUCCCode 098268574883
Elbow Fitting No
Hazard Protection Level Non Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 IN
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Lead Free NO
Maximum Temperature-Fahrenheit 110
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type GPM
Minimum Temperature - Celsius 0.50
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 2 IN
Outlet Shutoff Valve Type Outside Stem And Yoke Gate Valve
Part Number 0062666
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Series 007
Strainer No
Type Kit
