5000CIV

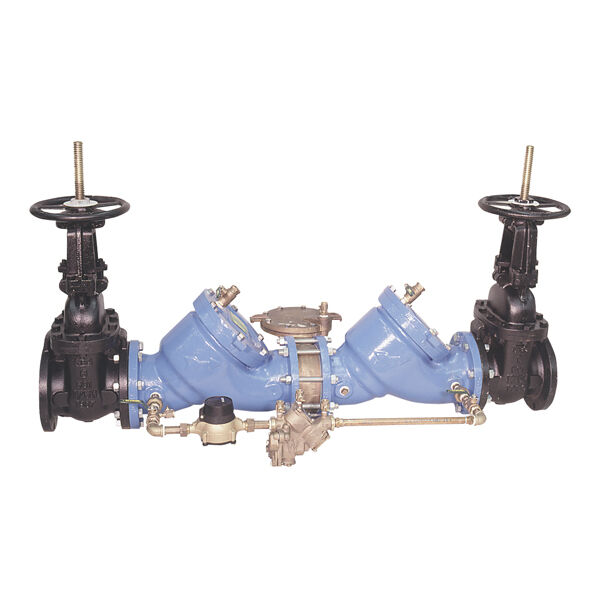

Series 5000CIV Reduced Pressure Detector Assemblies prevent the reverse flow of fire protection system substances from being pumped or siphoned into the potable water supply. The 5000CIV incorporates a meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of an epoxy-coated cast iron body with stainless steel trim, bronze gate valves, a pressure-differential relief valve, shutoff valves, and bronze ball-type test cocks. Series 5000CIV provides maximum flow at low pressure drop utilizing the air-in/water-out design principle for protection during emergency combined backsiphonage and backpressure conditions. Maximum Working Pressure: 175psi (12.06 bar).
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 5000CIV
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

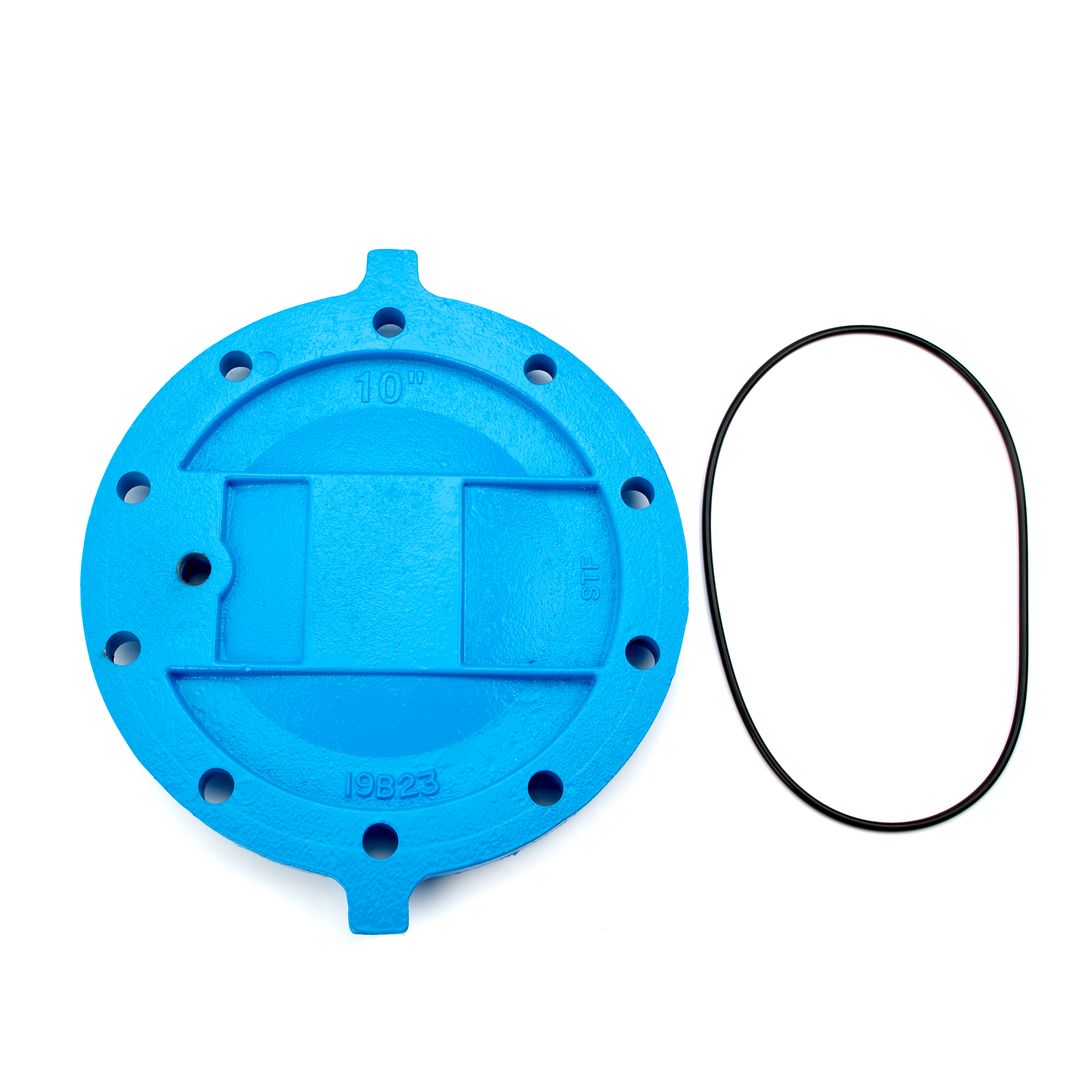

ARK 5000CIV-C 10
Cover Kit |
</br>5000CIV</br> |
Cover, Cover O-ring, Lubricant</br> |
|

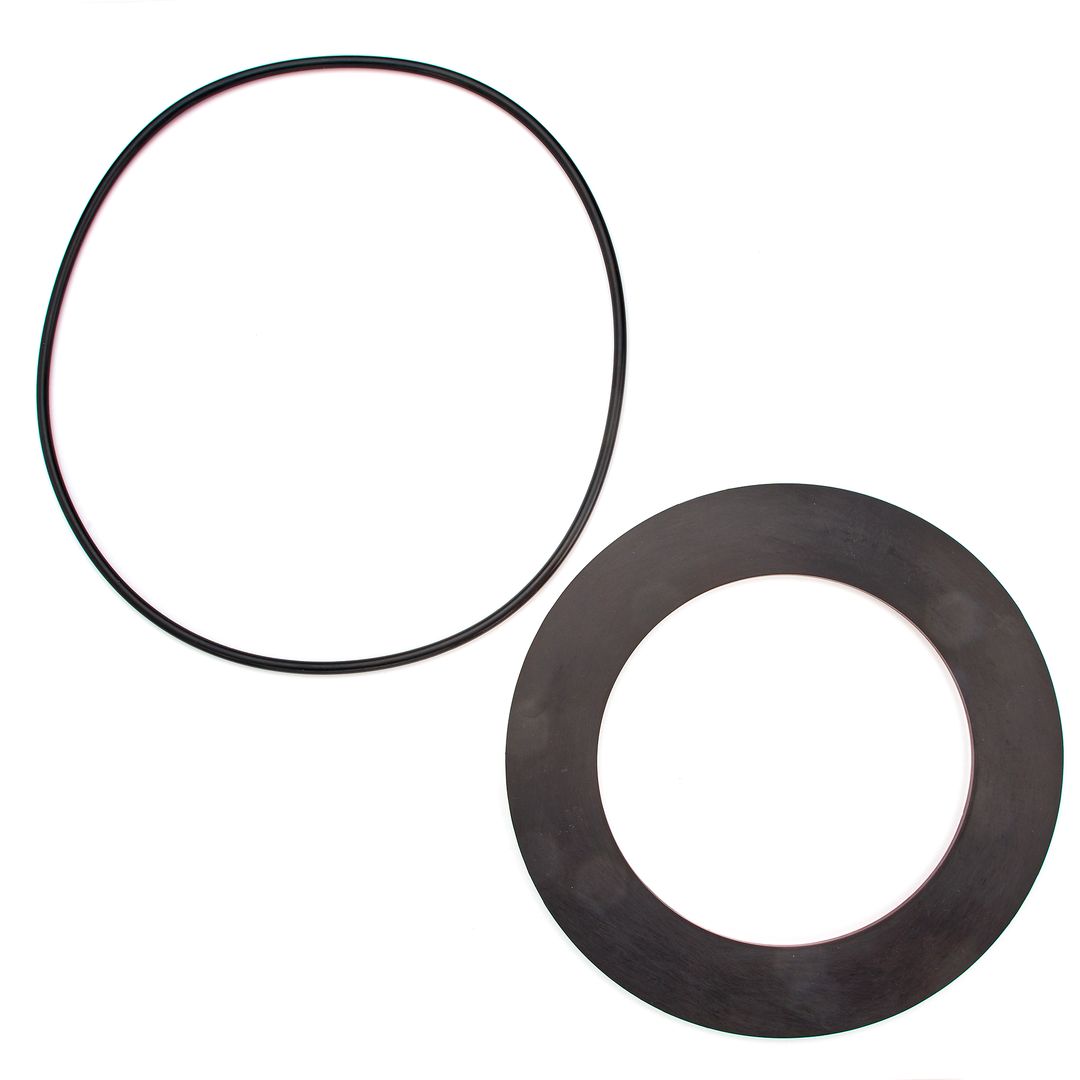

ARK 5000CIV-RC1 10
First Check Rubber Parts Kit |
</br>5000CIV</br> |
Check Disc, Cover O-ring, Lubricant</br> |
|

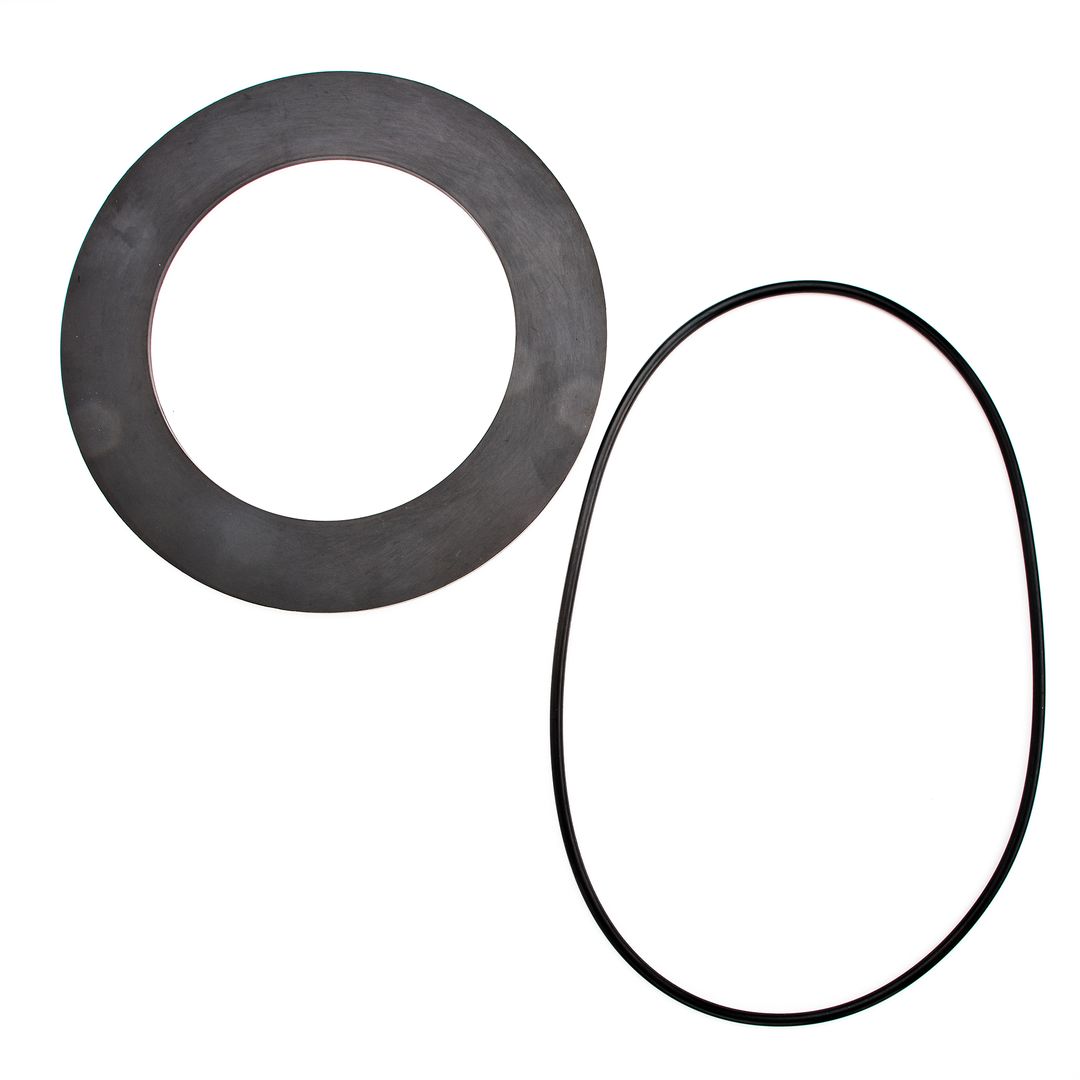

ARK 5000CIV-RC2 10
Second Check Rubber Parts Kit |
</br>5000CIV</br> |
Check Disc, Cover O-ring, Lubricant</br> |
|

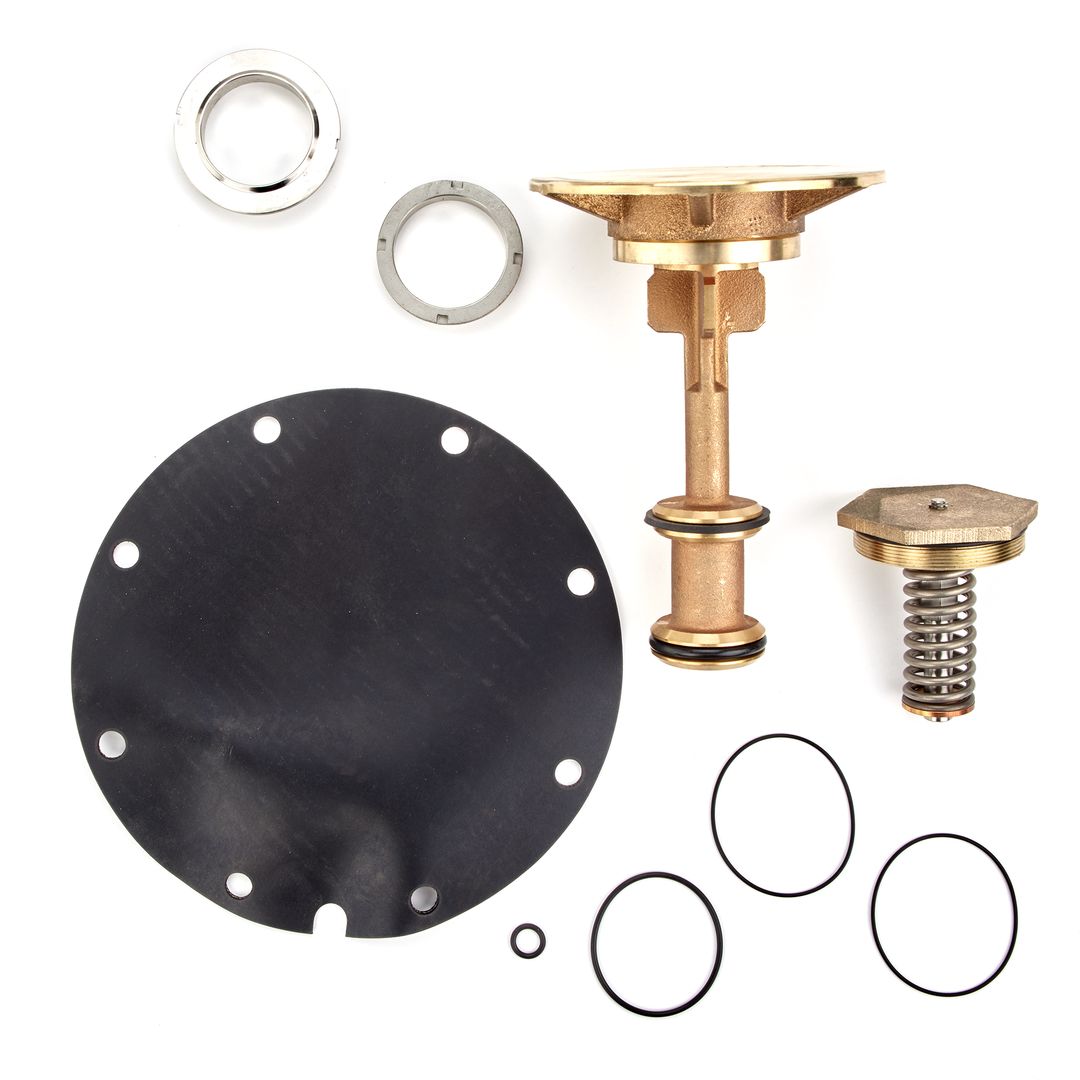

ARK 5000CIV-VT 4-10
Total Relief Valve Kit |
</br>5000CIV</br> |
Adapter O-ring, Diaphragm, Disc, Piston Assembly Seat, Seat O-ring, Lubricant</br> |
|

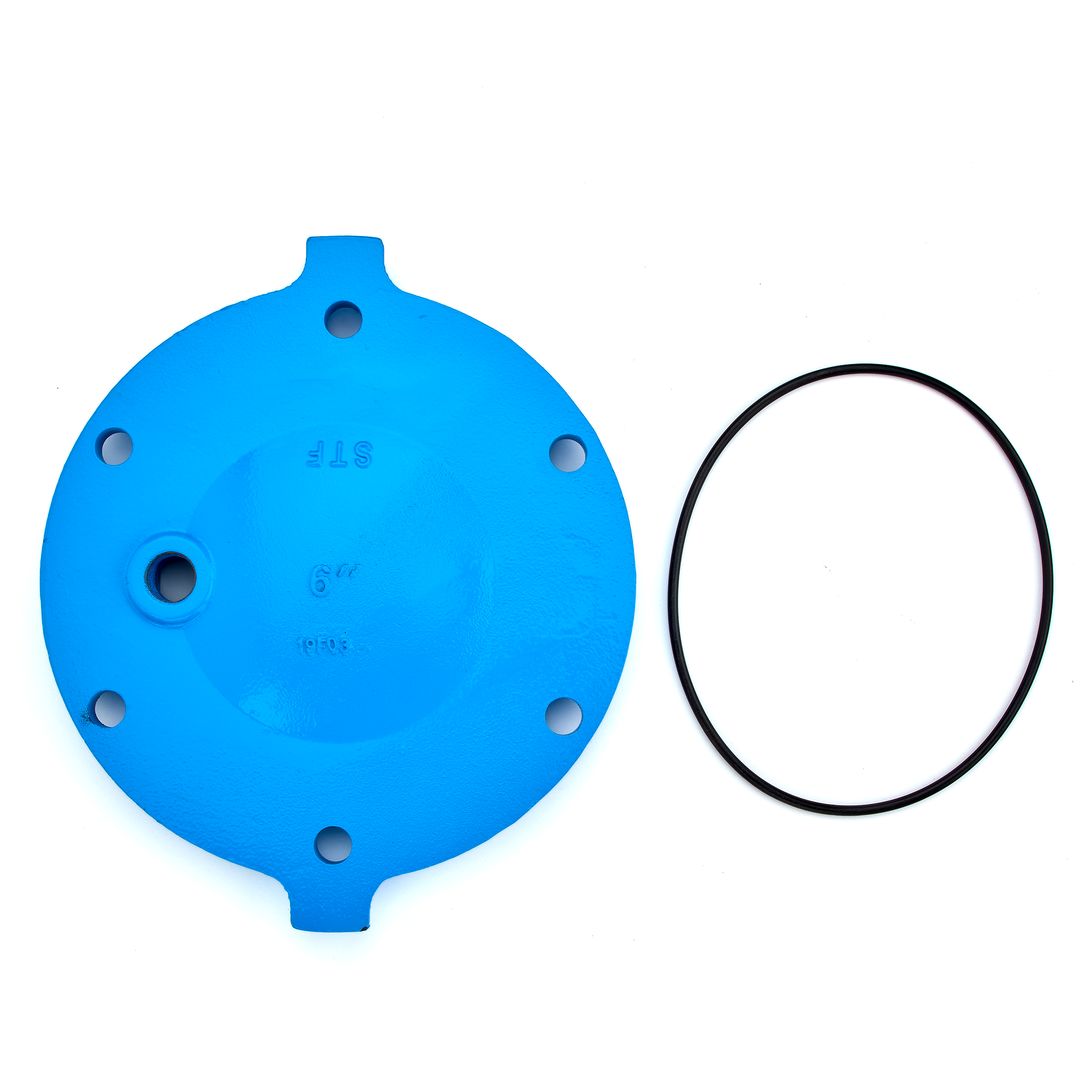

ARK 5000CIV-C 6
Cover Kit |
</br>5000CIV</br> |
Cover, Cover O-ring, Lubricant</br> |
|

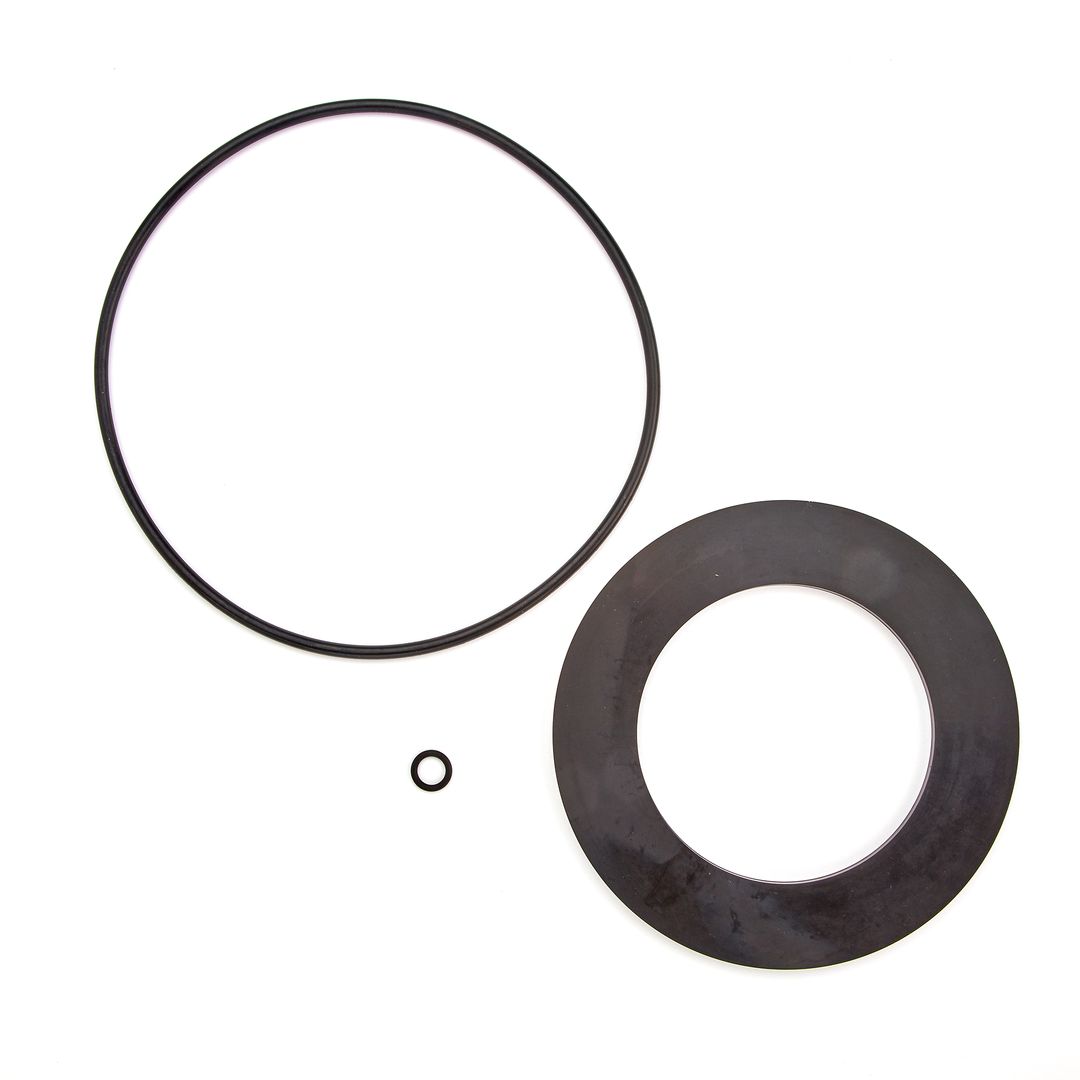

ARK 5000CIV-RC1 6
First Check Rubber Parts Kit |
</br>5000CIV</br> |
Lower Stem O-ring, Check Disc, Cover O-ring, Lubricant</br> |
|

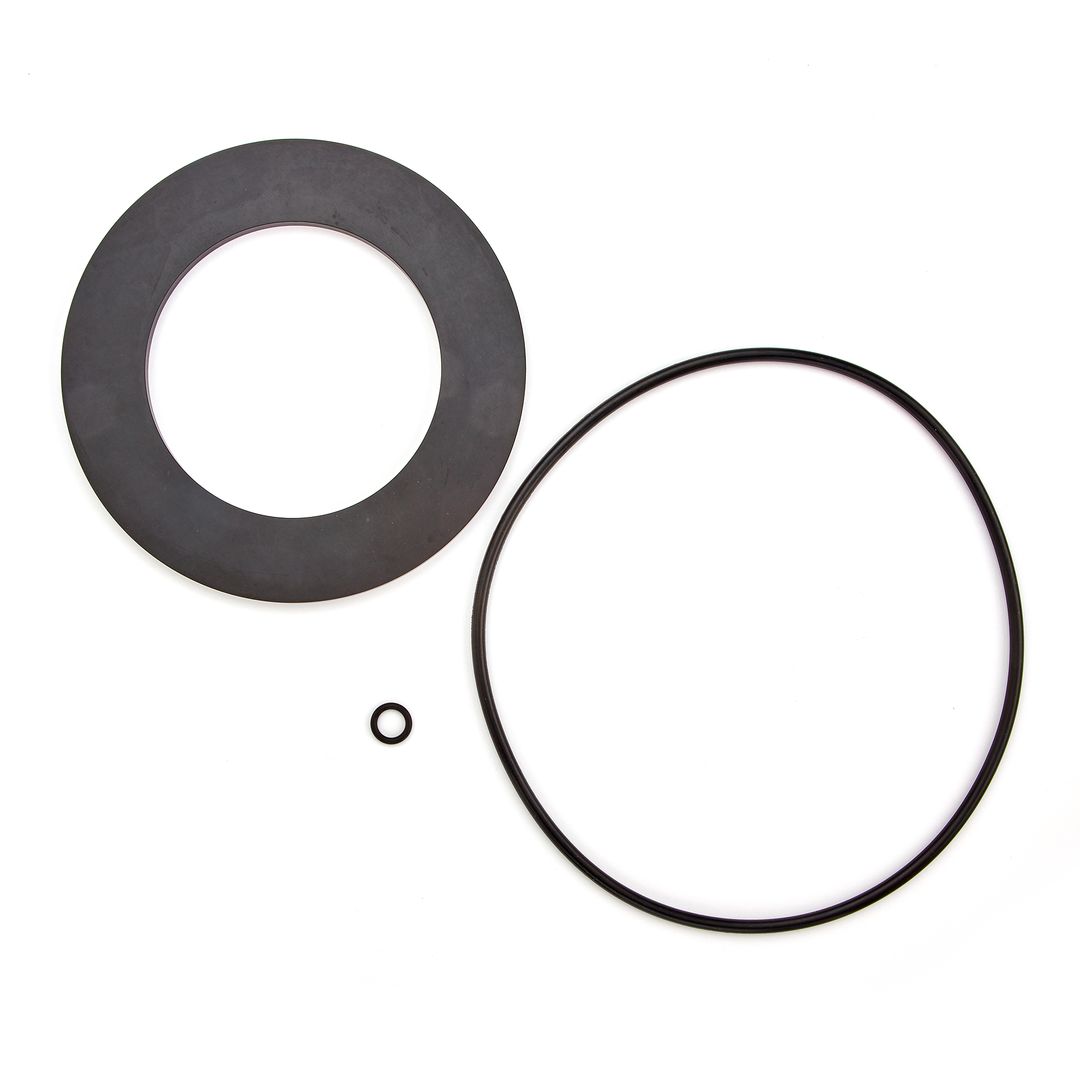

ARK 5000CIV-RC2 6
Second Check Rubber Parts Kit |
</br>5000CIV</br> |
Lower Stem O-ring, Check Disc, Cover O-ring, Lubricant</br> |
|

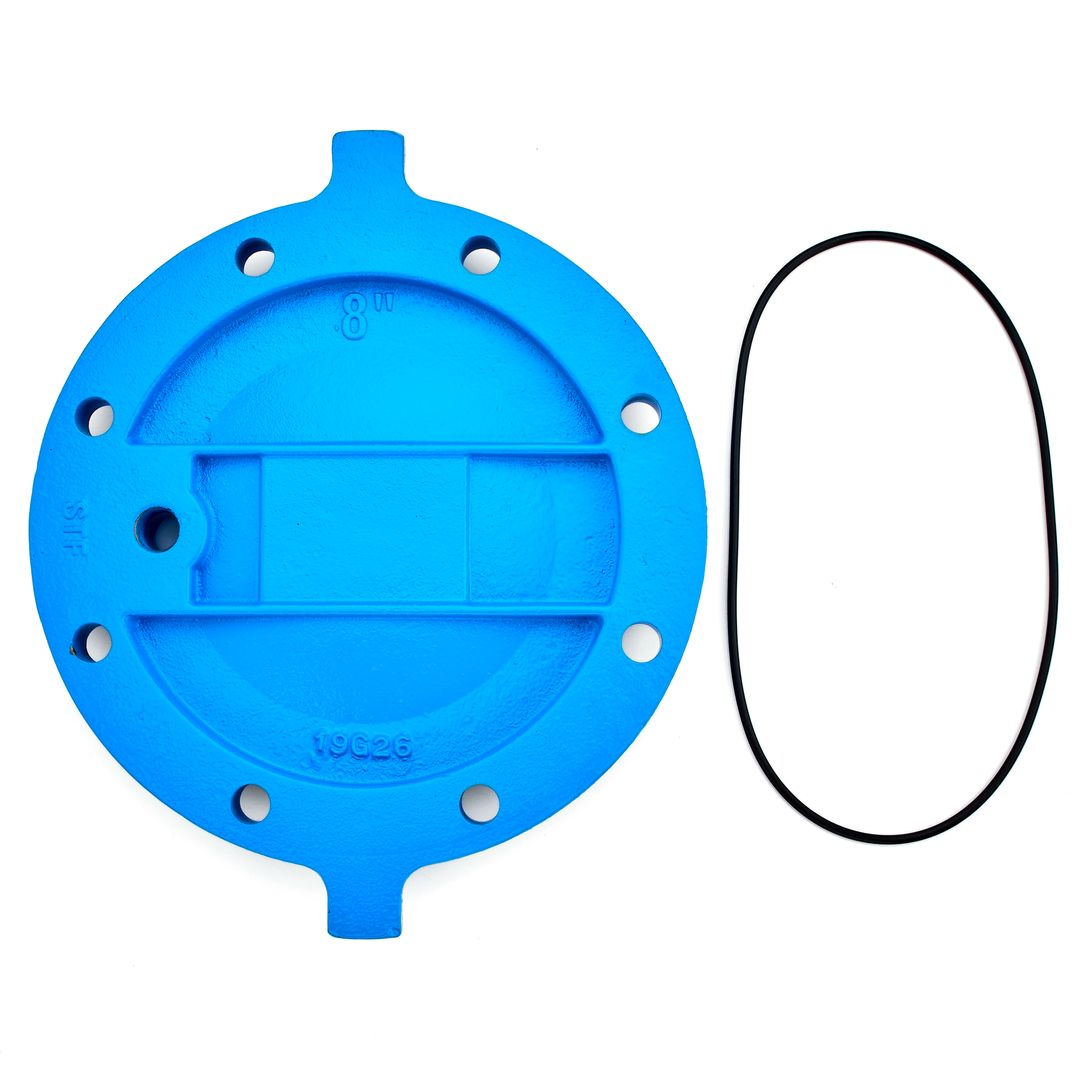

ARK 5000CIV-C 8
Cover Kit |
</br>5000CIV</br> |
Cover, Cover O-ring, Lubricant</br> |
|

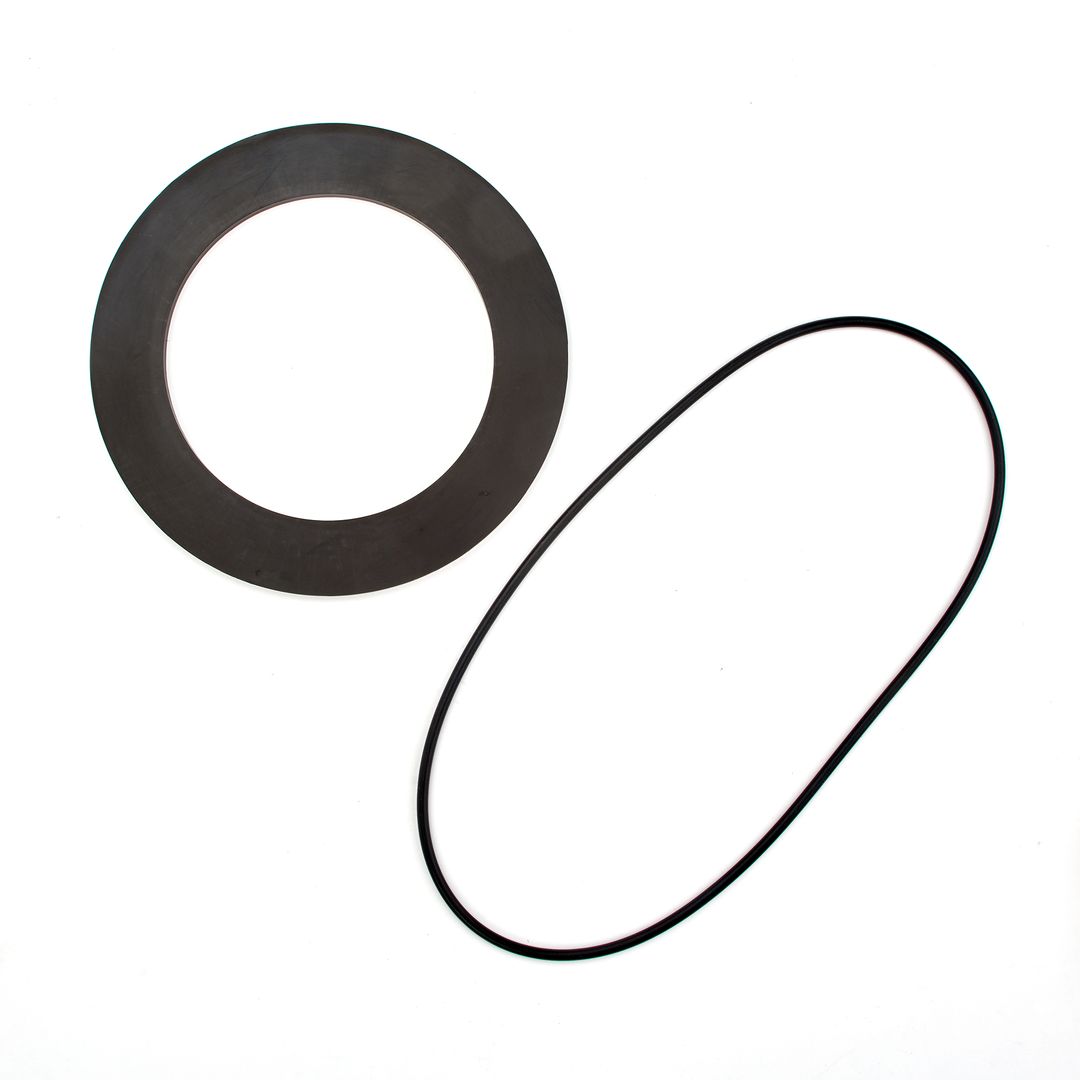

ARK 5000CIV-RC1 8
First Check Rubber Parts Kit |
</br>5000CIV</br> |
Check Disc, Cover O-ring, Lubricant</br> |
|

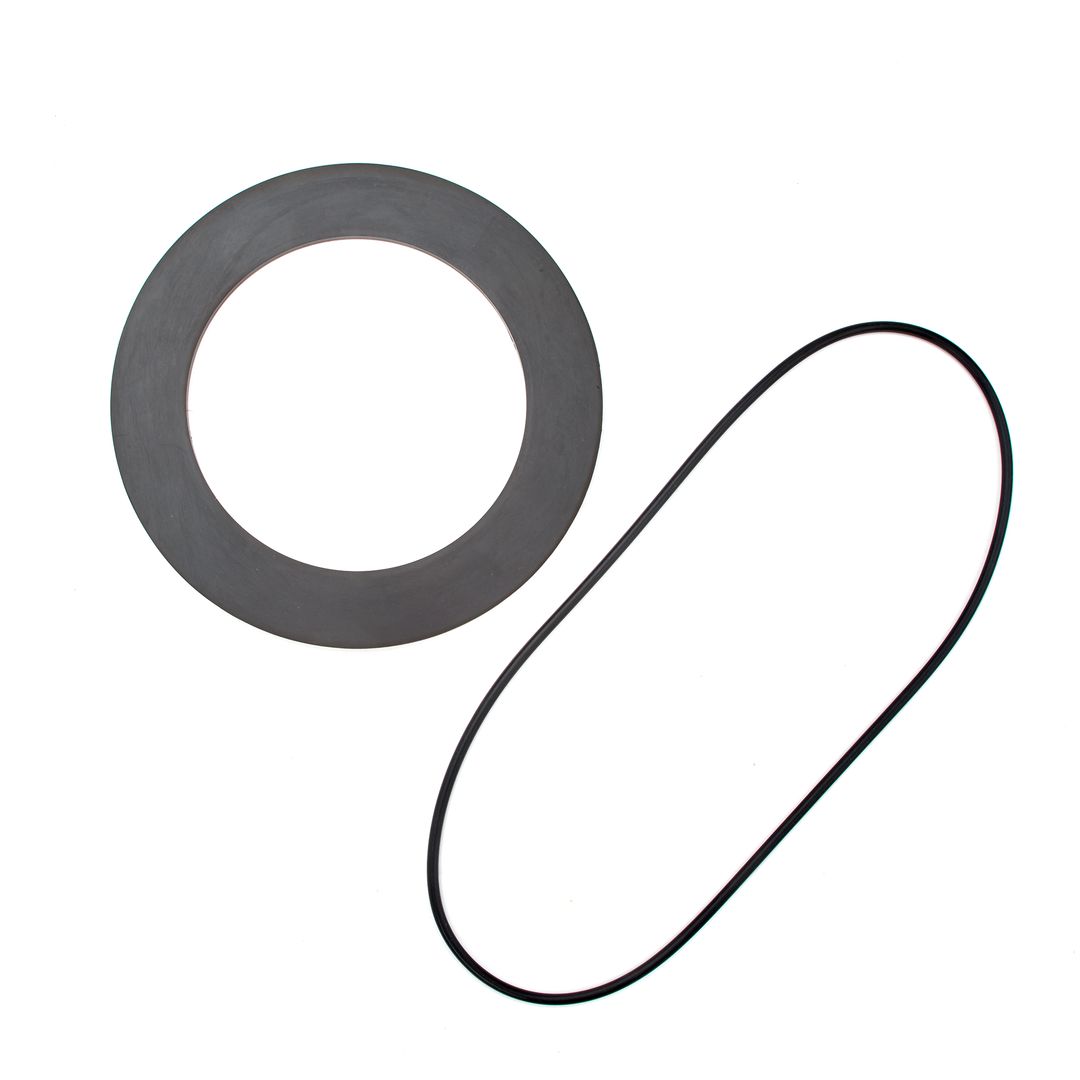

ARK 5000CIV-RC2 8
Second Check Rubber Parts Kit |
</br>5000CIV</br> |
Check Disc, Cover O-ring, Lubricant</br> |
