LF009
Reduced Pressure Valve Assembly Backflow Preventers with Flood Sensor, Sizes 1/4 - 3 IN
LF009
Reduced Pressure Valve Assembly Backflow Preventers with Flood Sensor, Sizes 1/4 - 3 IN
Features
- Sensor on relief valve for flood detection, sizes 1/2 to 3 IN
- Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
- The valve body for 2 1/2 and 3 inch sizes shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Extremely compact design is easy to install and service
- Large body passages for low pressure drop
- Captured springs for safer maintenance
- Screwdriver slotted ball valve test cocks
Nexa pairs integrated sensing hardware with free, upgradable software to empower facilities with unprecedented visibility and control over their water systems, helping teams protect assets, deliver consistent performance, and drive measurable ROI.
Learn more about Nexa

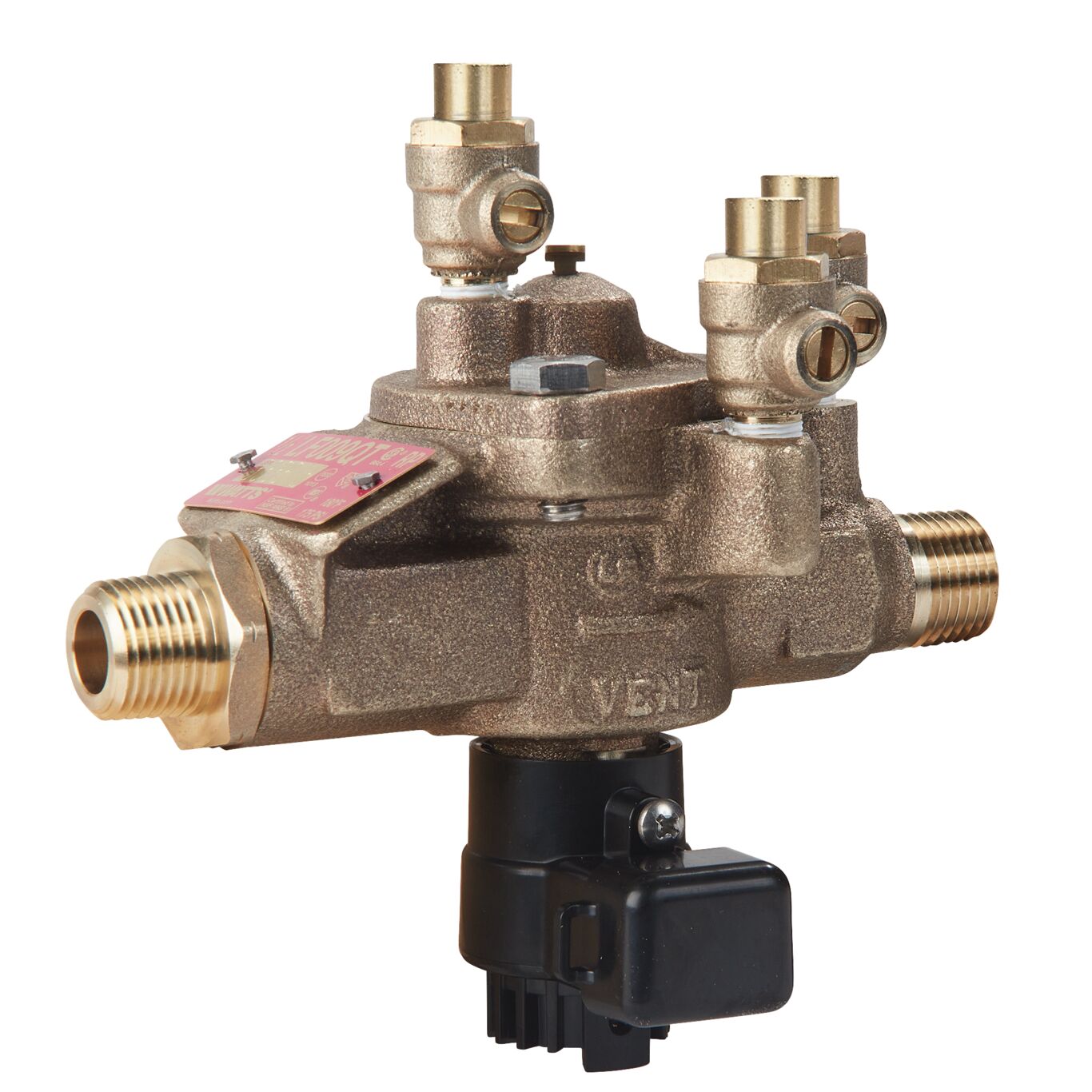

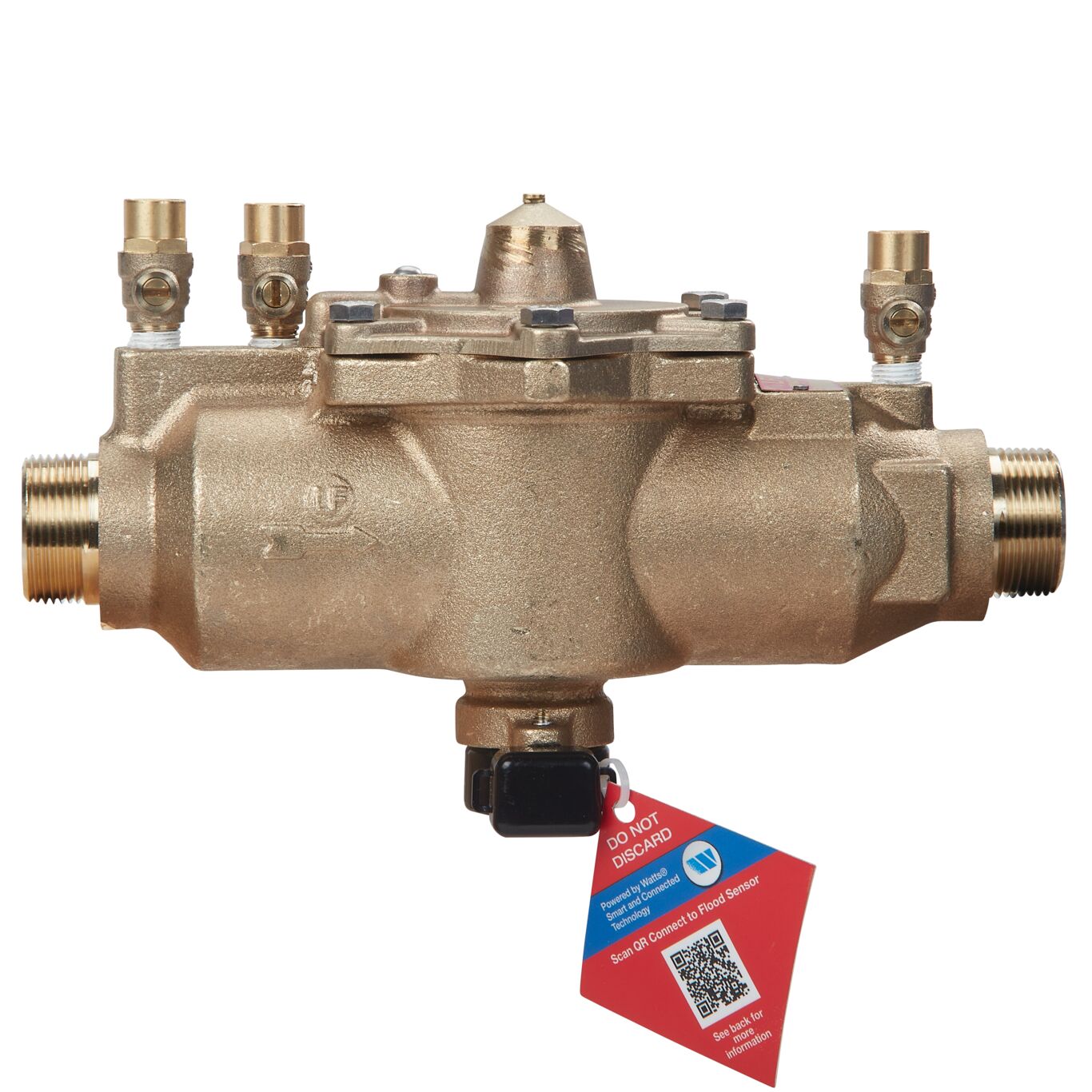

Series LF009 Lead Free* reduced pressure zone assemblies feature a flood sensor using SentryPlus Alert® technology to detect continuous discharge from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi. Available for sizes 1/2 to 3 IN.

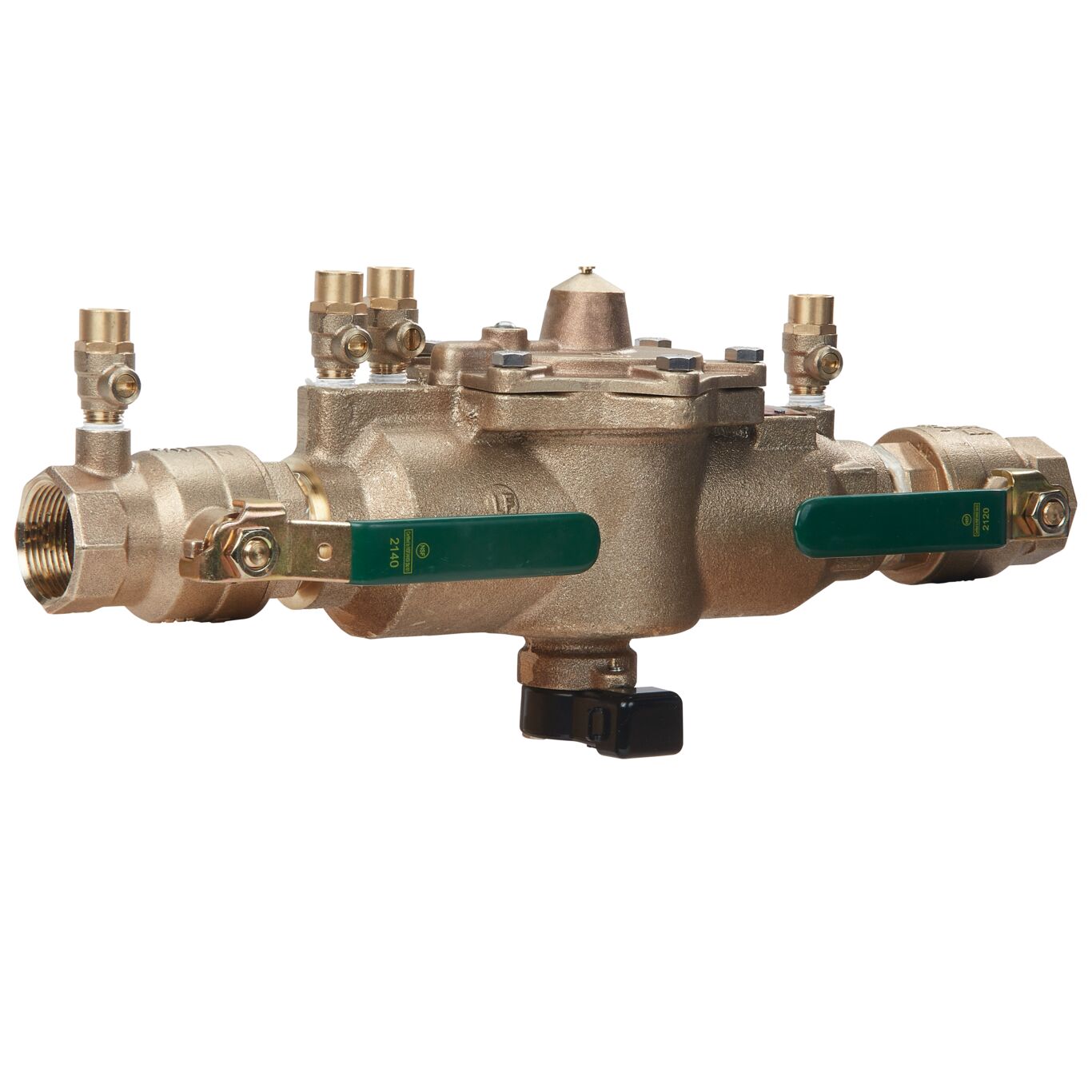

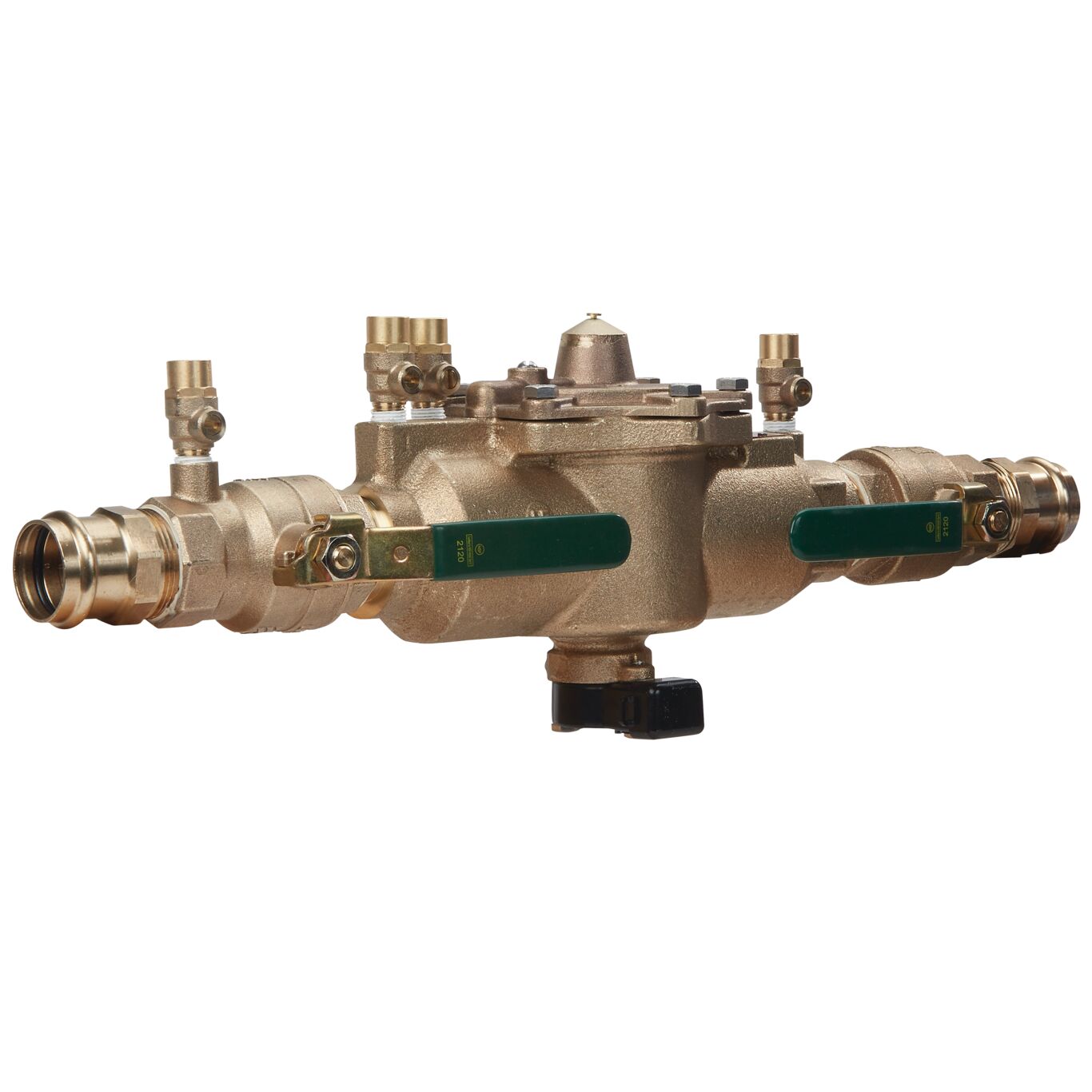

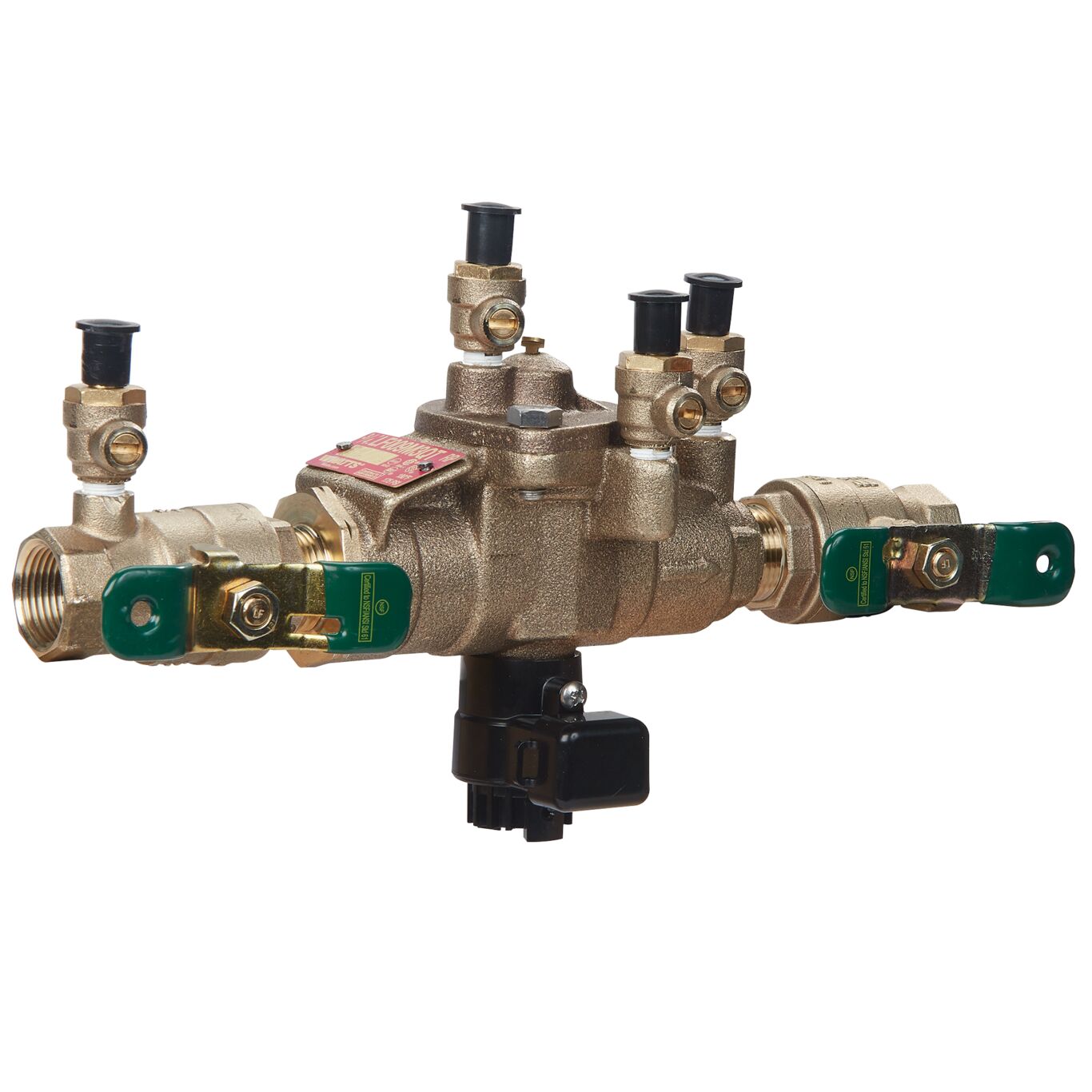

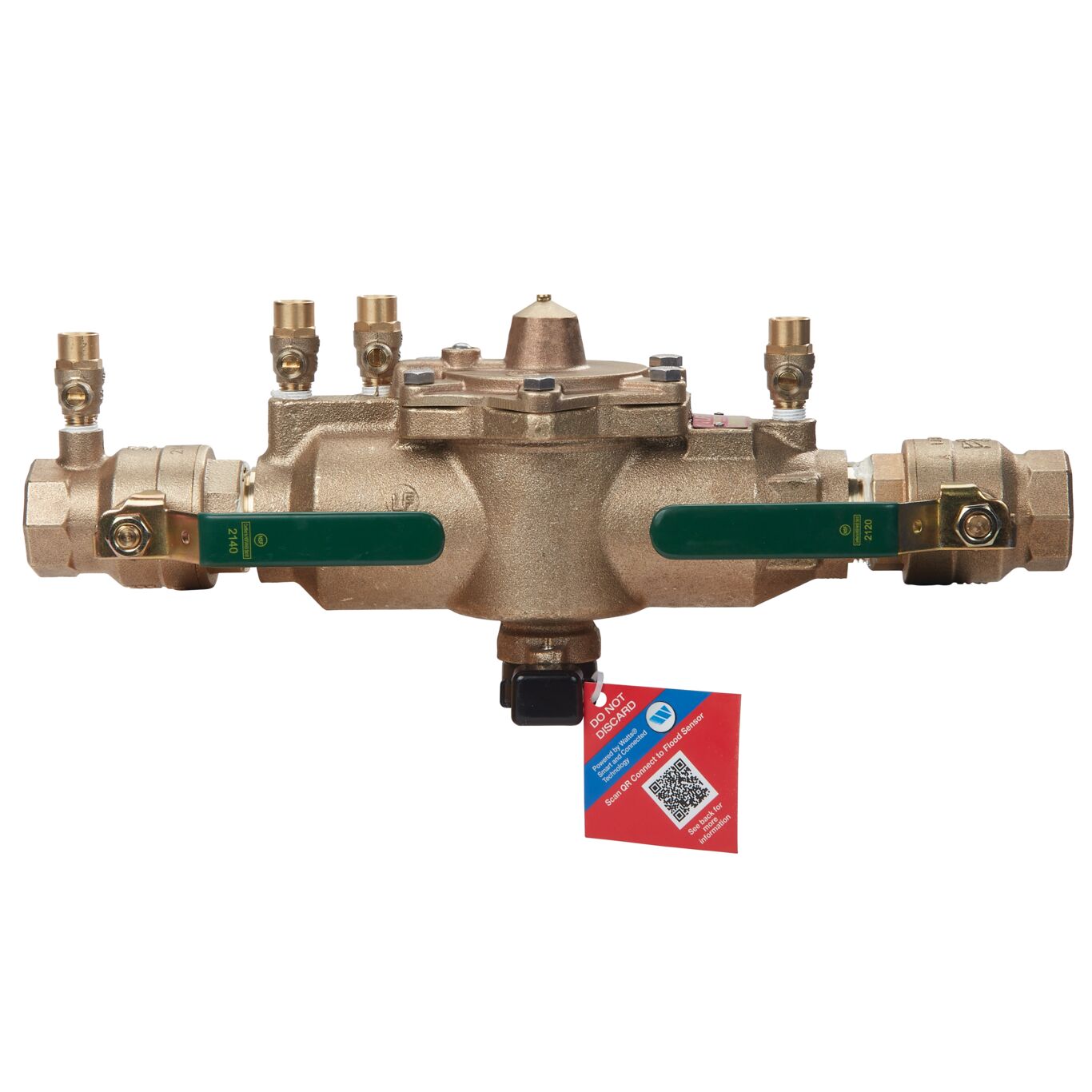

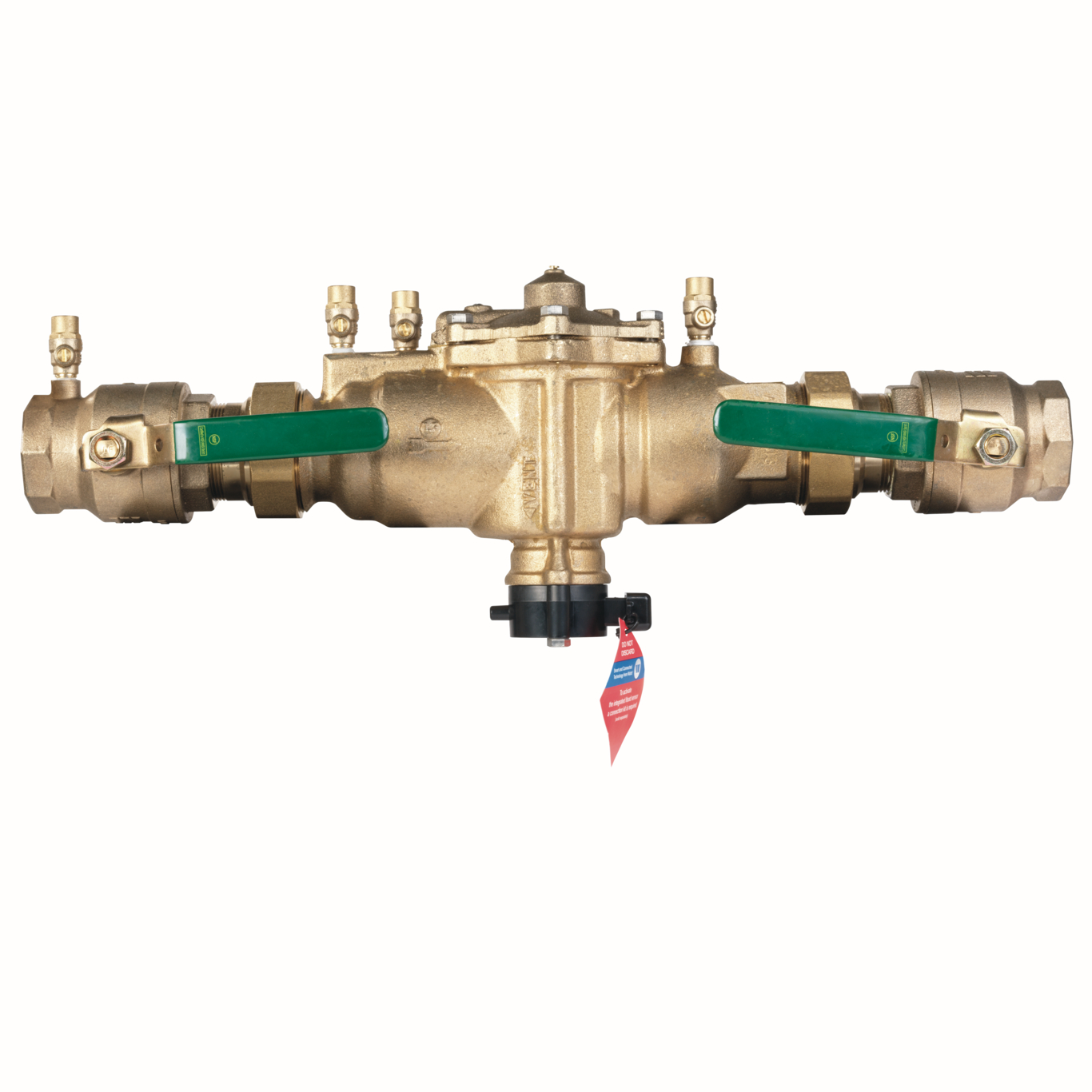

This series prevents the reverse flow of contaminated water caused by backsiphonage or backpressure from entering the potable water supply. It is ideal for protection at health hazard cross-connections or for containment at the service line entrance. The compact, modular design facilitates maintenance and provides easy access to internal components. All small diameter assemblies, in sizes ranging from 1/4 to 2 inch, are constructed of lead free cast copper silicon alloy. Check with local water authorities for installation requirements.
To learn more visit: https://www.watts.com/floodprotectionsystem

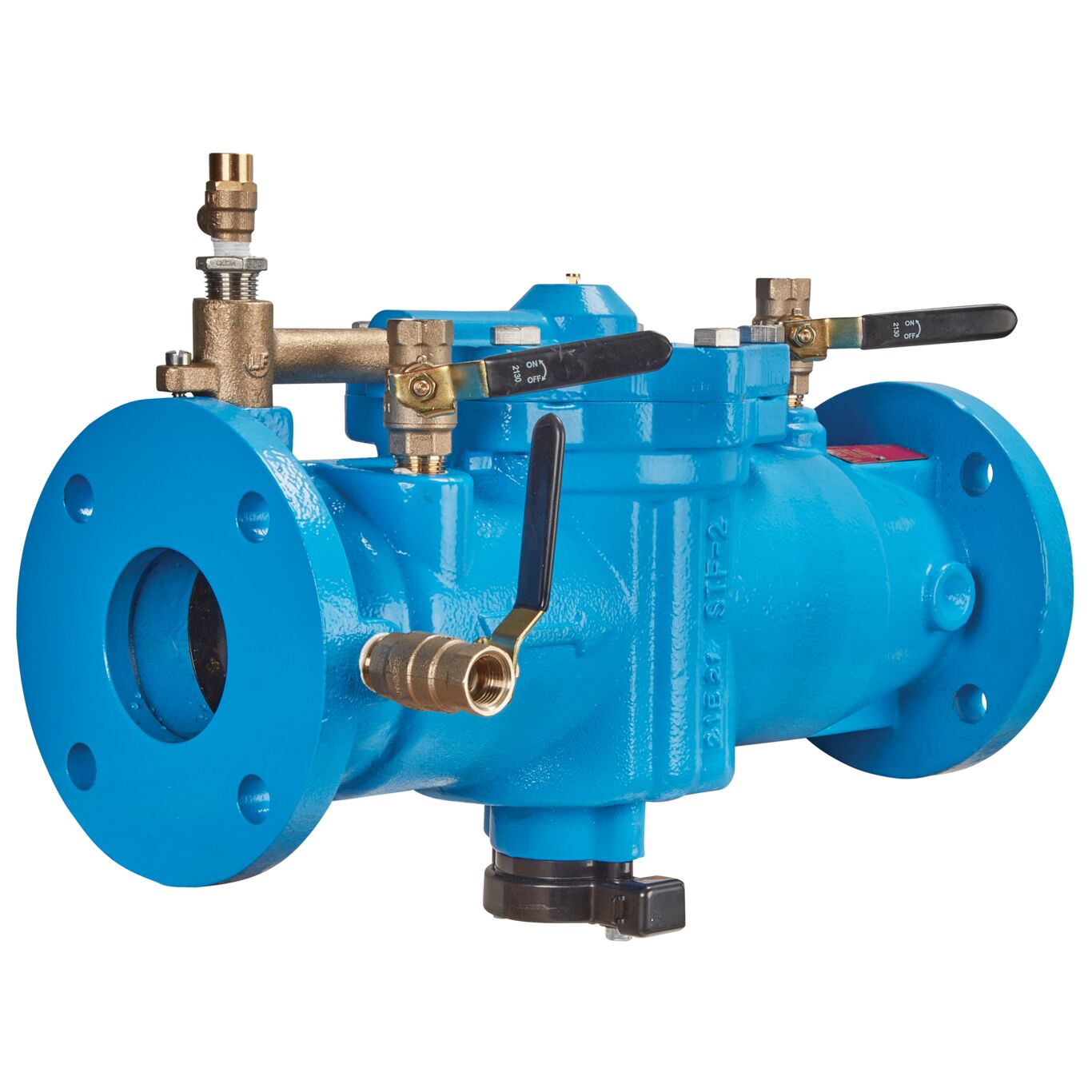

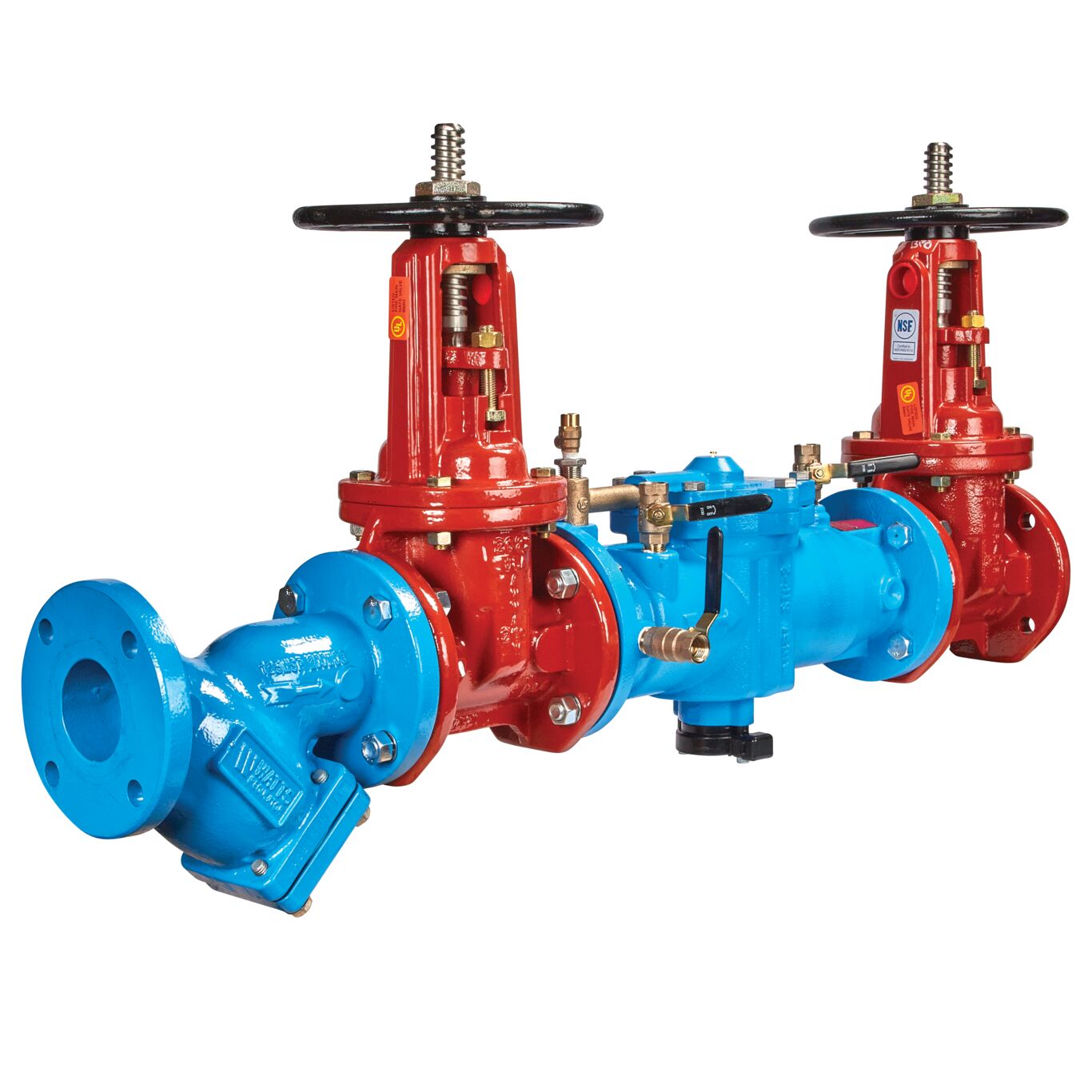

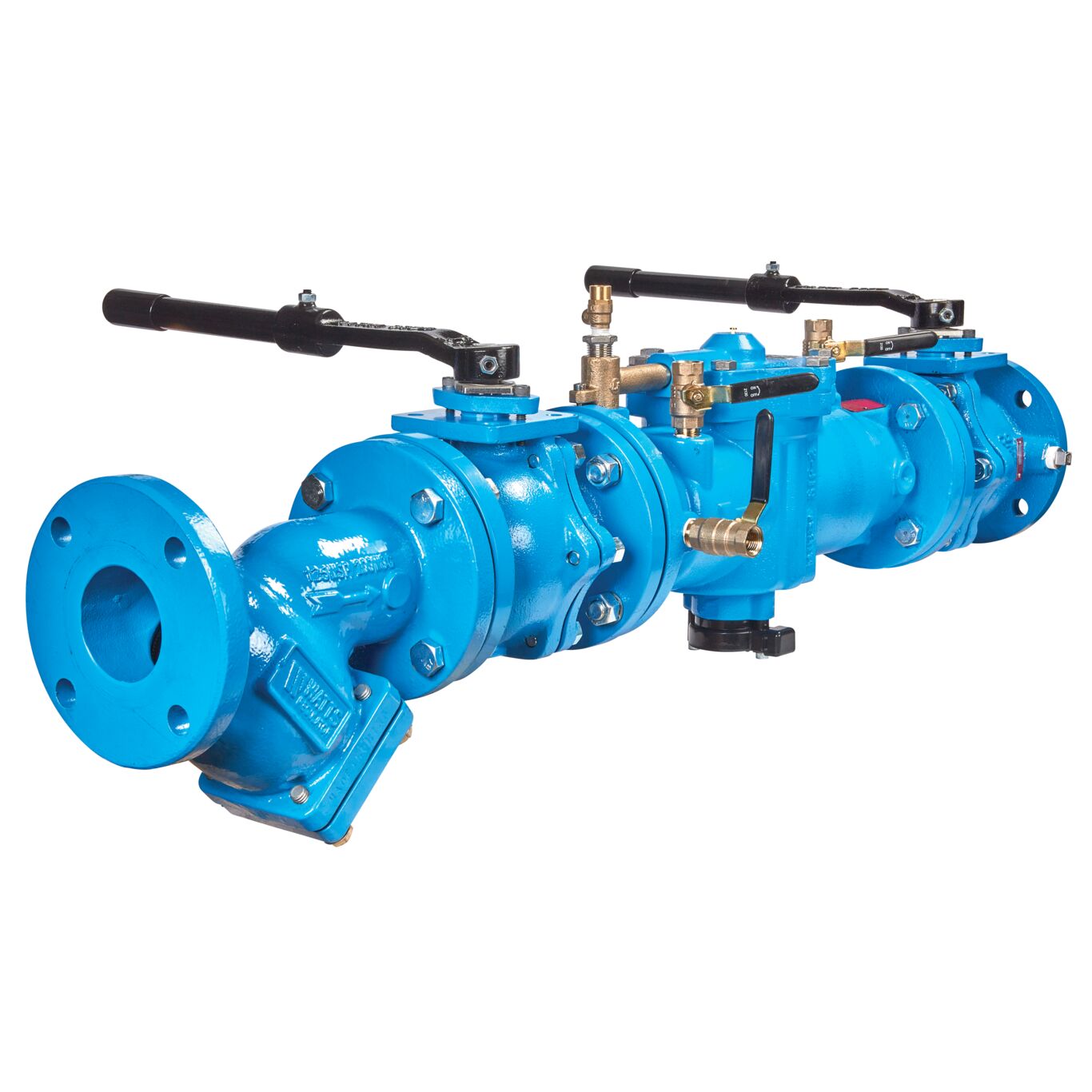

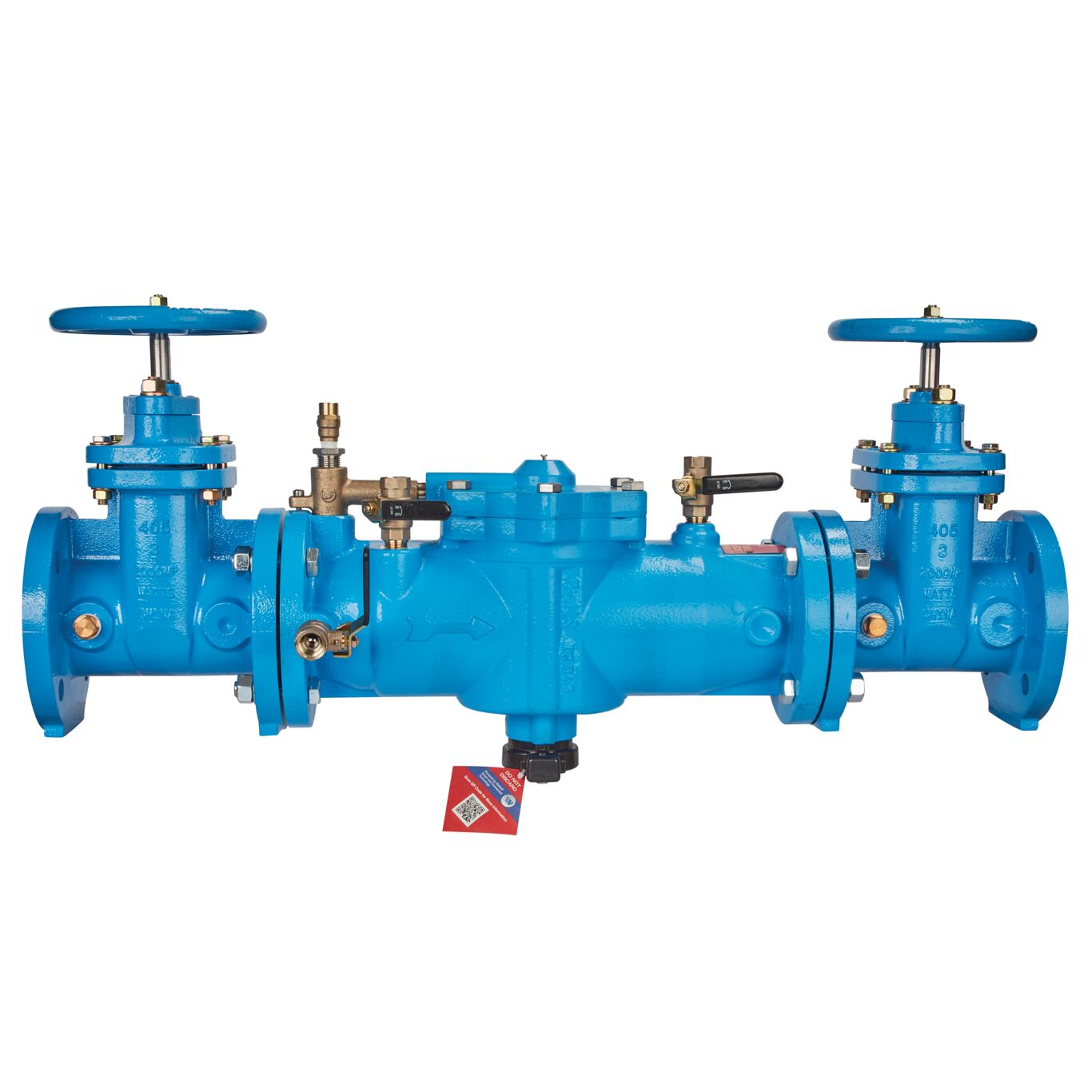

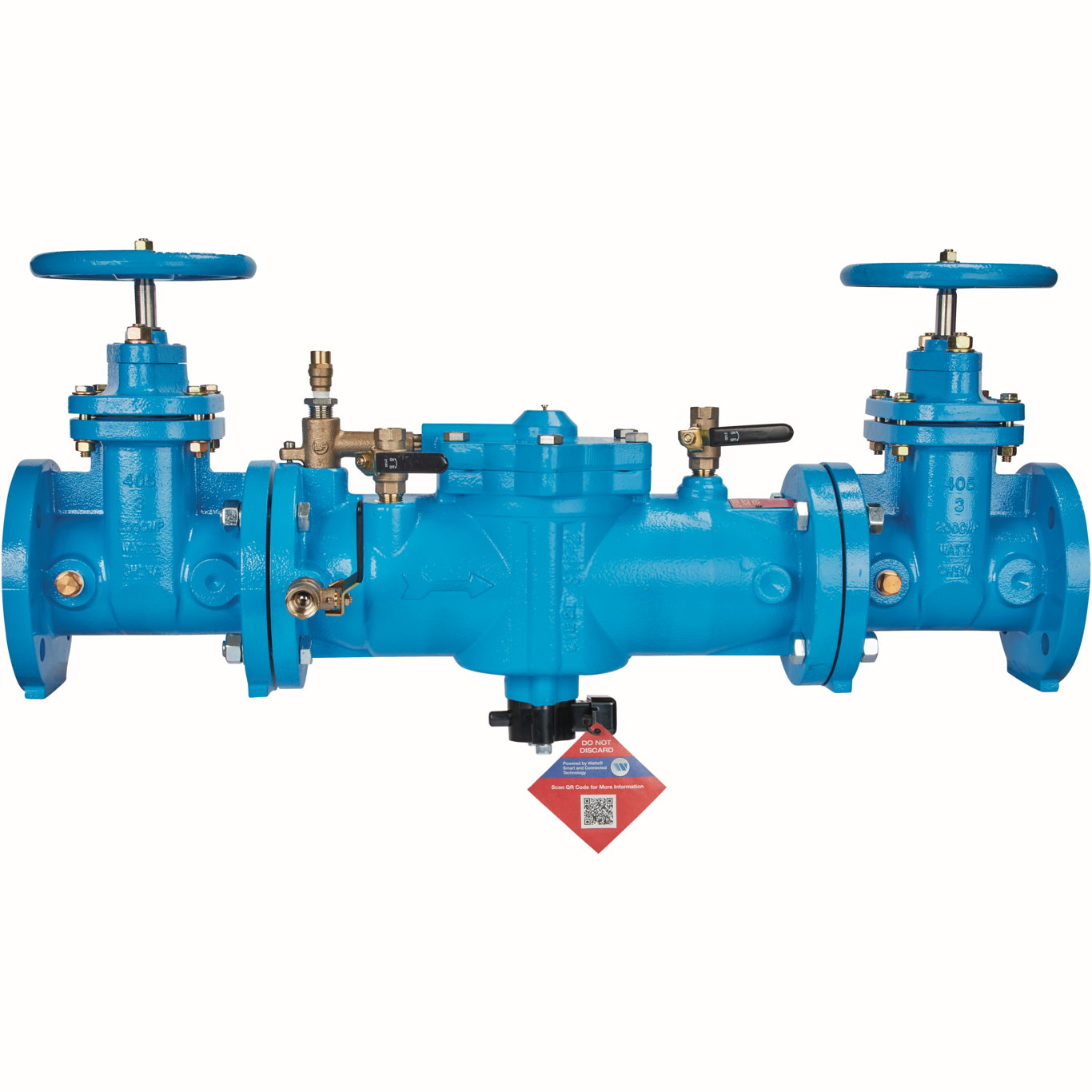

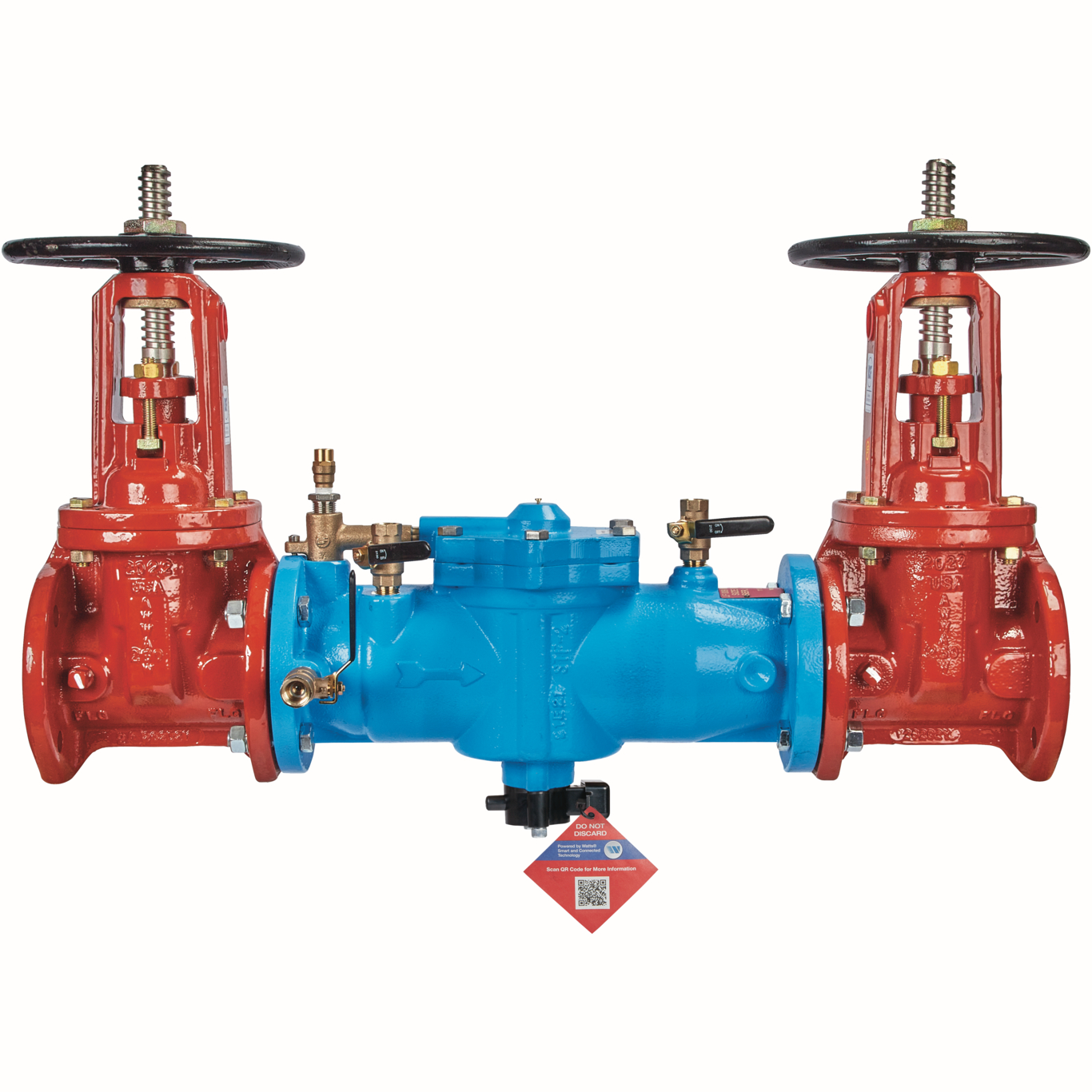

All large diameter assemblies, in sizes 2 1/2 and 3 inch, feature cast iron unibody construction coated with ArmorTek®, a patented 3‑part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
To learn more visit: https://www.watts.com/armortek
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Video - Watts LF009 RPZ Overview
Discover the features and benefits of the Watts LF009 Reduced Pressure Zone Assembly, designed to protect potable water supplies with lead-free construction and easy maintenance for a variety of plumbing applications.
Runtime : Watch Now
Video - Watts LF009 RPZ Installation
This video guides you through the proper installation steps for Watts backflow prevention assemblies, ensuring safe and effective protection of your plumbing system.
Runtime : Watch Now
Video - ArmorTek in Las Vegas Five Years After Install
See how Armortek’s advanced coating system has successfully protected valves from corrosion and microbiological damage over five years in a real-world Las Vegas installation.
Runtime : 00:01:44Watch Now
Video - Watts LF009 RPZ Troubleshooting and Service
Get step-by-step troubleshooting and maintenance instructions for Watts backflow prevention assemblies, including diagnosing relief valve issues and performing repairs to keep your system running smoothly.
Runtime : Watch Now
Video - ArmorTek Advanced Coating System Overview
Armortek’s patented triple-layer coating protects valves from corrosion and microbiologically induced damage, extending their lifespan and enabling repair and recycling for sustainable water management.
Runtime : 00:01:13Watch Now
Video - How to Activate Your Flood Detection System
Learn how to quickly register, activate, and test your SentryPlus Flood Sensor Upgrade Kit using the Syncta platform for seamless automated flood protection and customizable alerts.
Runtime : Watch Now
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LF009
No results found
| Model | Used On - Series or Model | Kit Contents |
|---|---|---|
|
FP-BF-BMS 2 1/2-10
Activation Kit |
</br>009, LF009, LFU009, SS009, U009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |

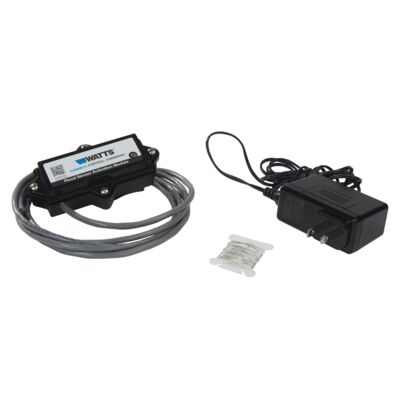

Sensor Activation Module with Cable, Ground Wire, Power Adapter</br> |
|
FP-BF-CFS 2 1/2-10
Activation Kit |
</br>009, LF009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |

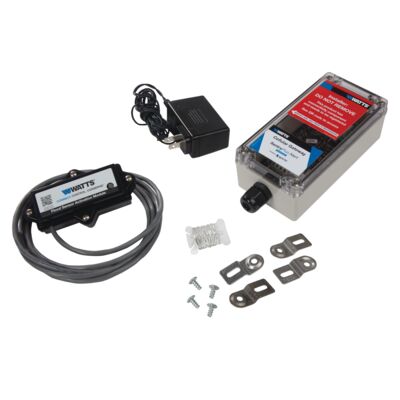

Sensor Activation Module with Cable, Cellular Gateway with Mounting Kit, Ground Wire, Power Adapter</br> |
|

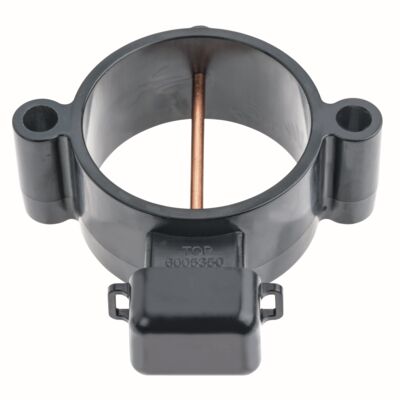

FP-BF-SA-009/909 2-3 M2
Upgrade/Repair Kit |
009, 909, 909RPDA</br></br> |
Flood Sensor and 2 Sets of Mounting Bolts</br> |
|
SCM-BF-CONN KIT
Activation Kit |
</br>Watts 009/LF009, LF909, LF919, 909RPDA, 957, 957RPDA, 994, 994RPDA; Ames C400, C500, 5000SS, 4000SS, FEBCO LF860, 825Y, LF825Y, LF866, LF880V, LF886V</br> |
Sensor Control Monitor, Power Adapter, Mounting Feet, and Quick Start Guide</br> |
|
LFRK 009-C 1/4-1/2
Cover Kit |
</br>009</br> |

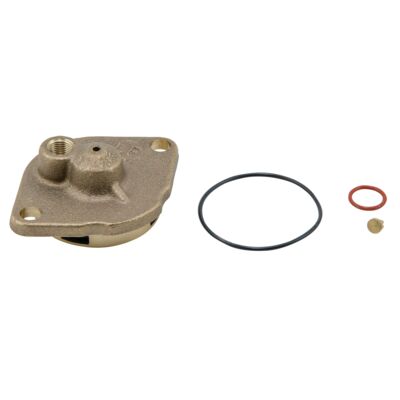

Cover, Cover O-ring</br> |
|

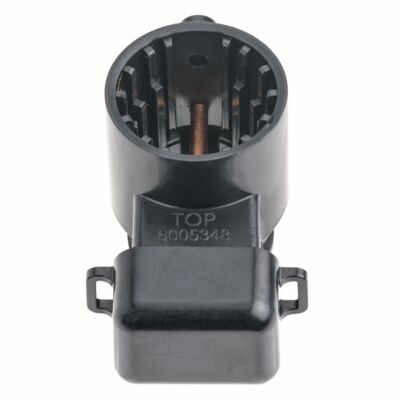

FP-BF-SA-009-1/2-3/4 M2
Upgrade/Repair Kit |
009</br></br> |
Flood Sensor and Screws</br> |
