3200
Dielectric Flanged Pipe Fittings
3200
Dielectric Flanged Pipe Fittings
Features
- Maximum pressure is 175 psi (12.1 bar)
- Iron pipe thread connections
- Maximum temperature is 180 degrees F (82 degrees C)
- Designed and manufactured to the highest quality standards
- Meet federal specifications for tensile strength and thread end connections

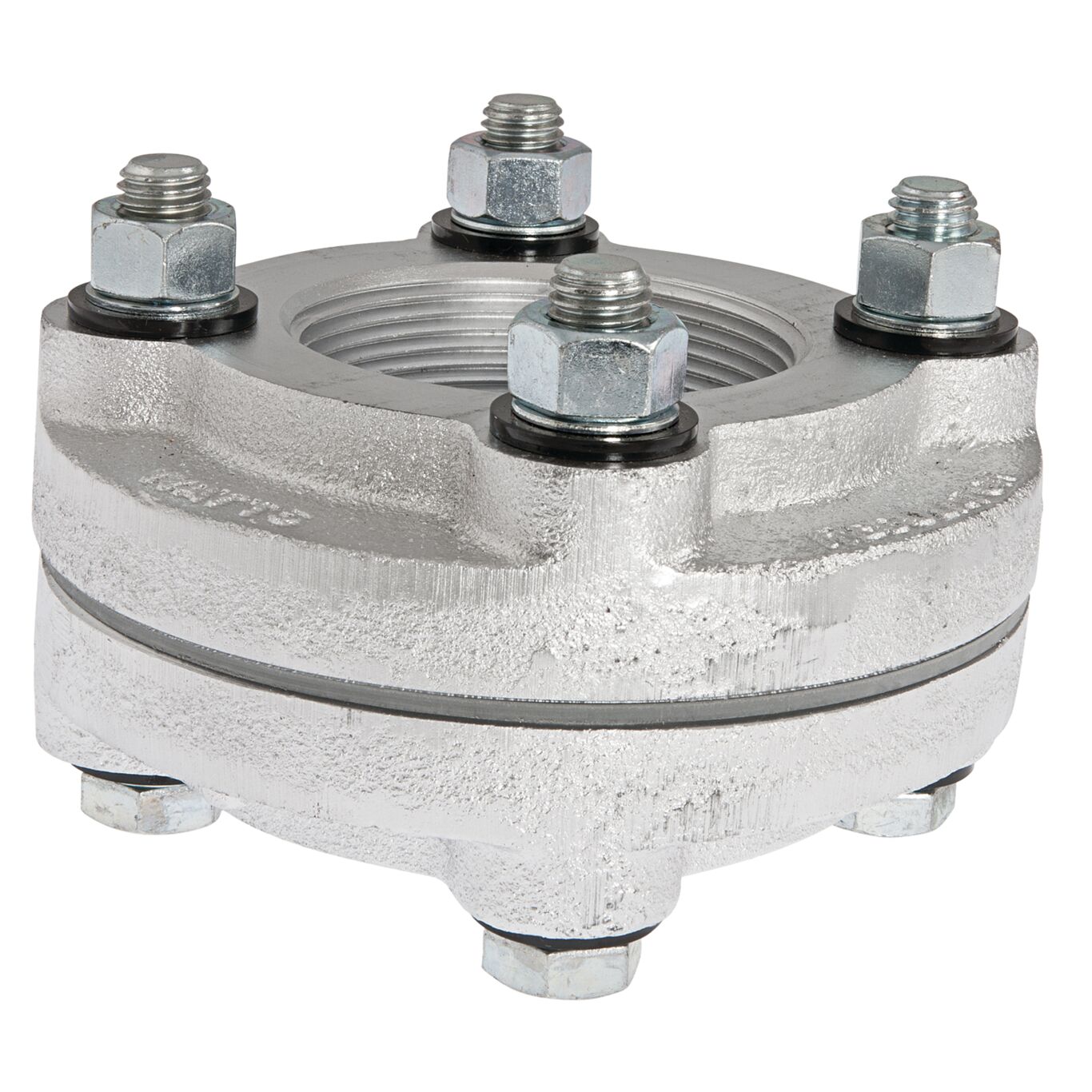

Series 3200 Dielectric Flanged Pipe Fittings are used in commercial and residential applications to prevent accelerated corrosion and deterioration in the piping system due to galvanic and stray current. It is installed between pipes made from dissimilar metals, and features an iron pipe thread to iron pipe thread connection. It consists of 2 flange fittings and a gasket. Series 3200 is ideal in applications such as hot water storage tanks, water and air conditioners, processing tanks, steam, gas, and water piping. Maximum Pressure: 175psi (12 bar)
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 3200
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

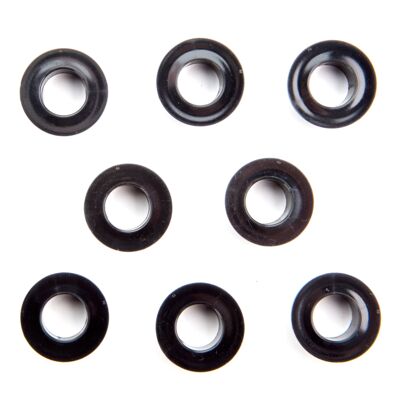

INK-J-KIT
Insulator Kit |
Model 3000 Dielectric Union Flanged Fitting</br></br> |
8 Insulators Per Kit</br> |
|

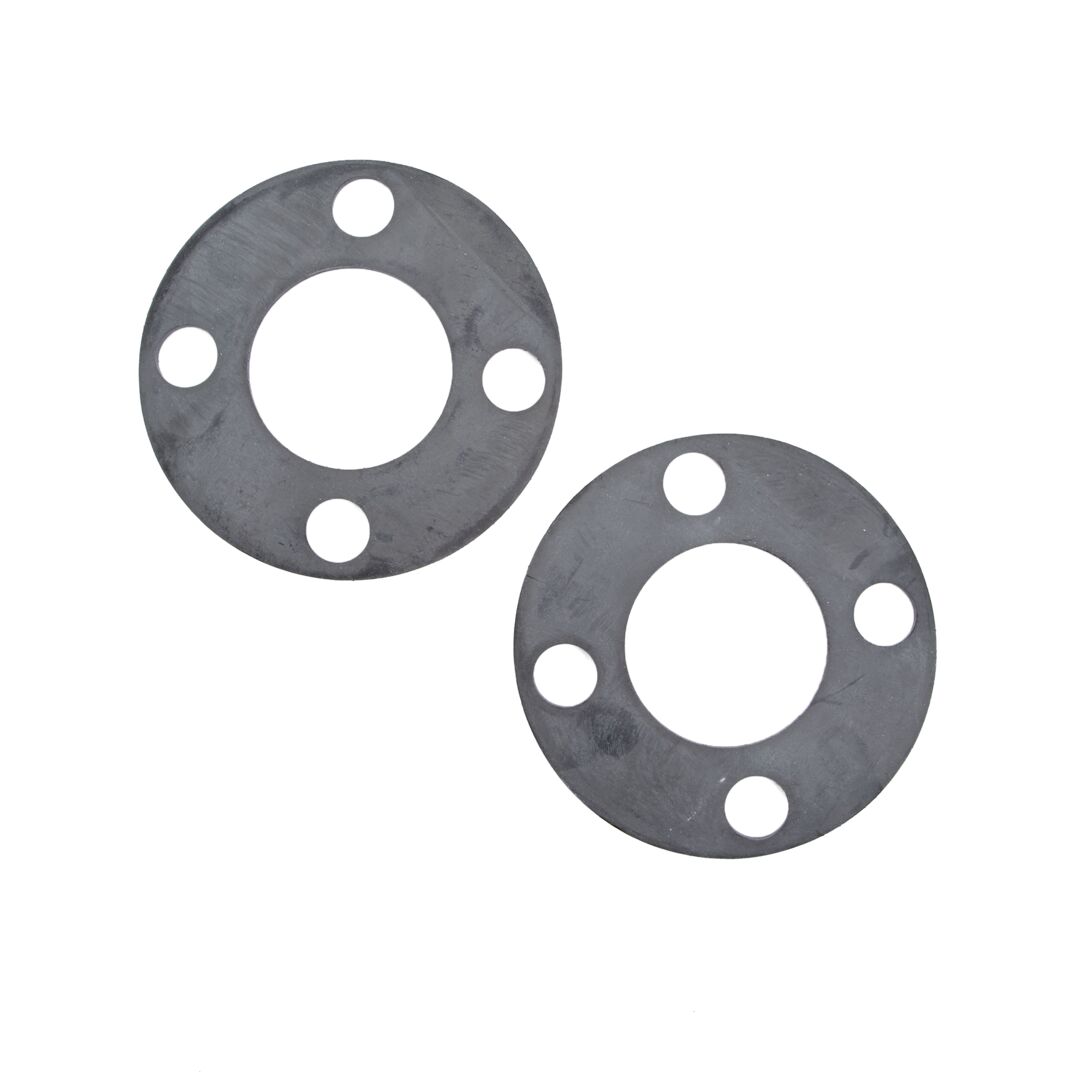

KIT GA-N
Gasket Kit |
Dielectric Union Valve</br></br> |
2 Ga Gaskets Per Kit</br> |
|

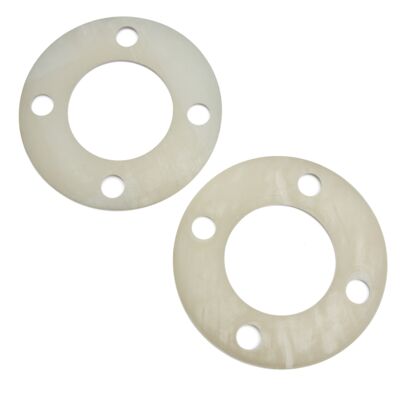

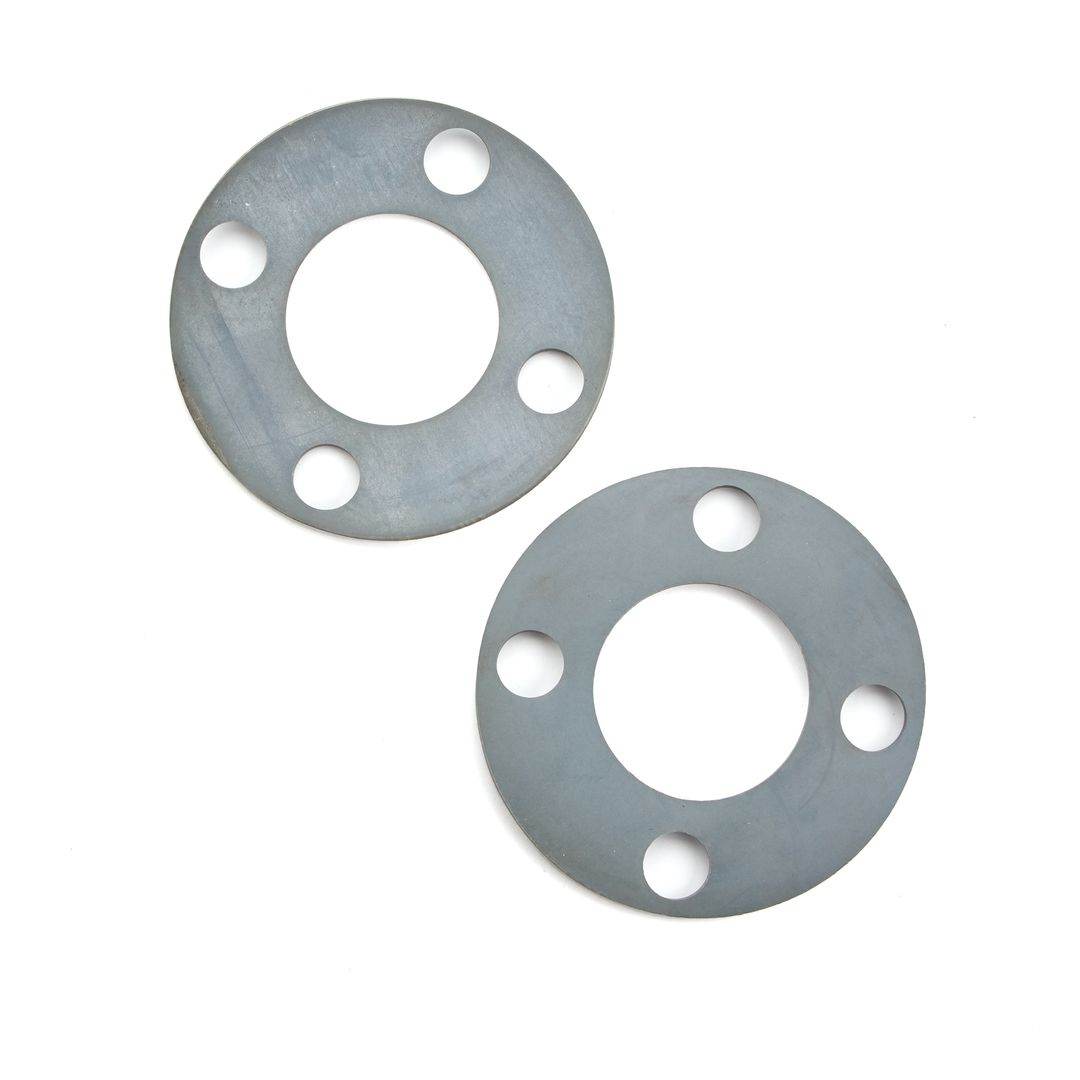

KIT GB-N
Gasket Kit |
Series 3100, 3200 Dielectric Union</br></br> |
2 Gb Gaskets Per Kit</br> |
|

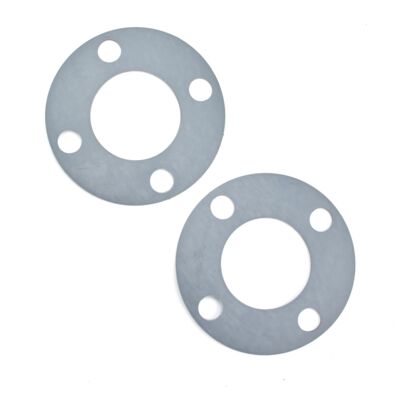

KIT GA-P
Gasket Kit |
Series 3100, 3200 Dielectric Union</br></br> |
2 Ga Gaskets Per Kit</br> |
|

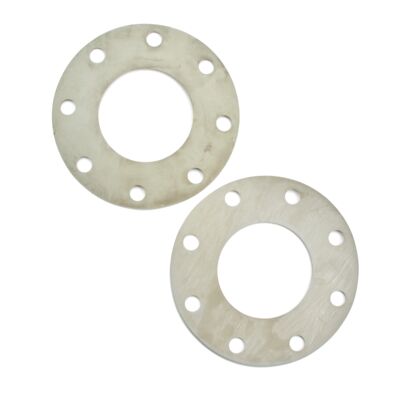

KIT GB-P
Gasket Kit |
Series 3100, 3200 Dielectric Union</br></br> |
2 Gb Gaskets Per Kit</br> |
|

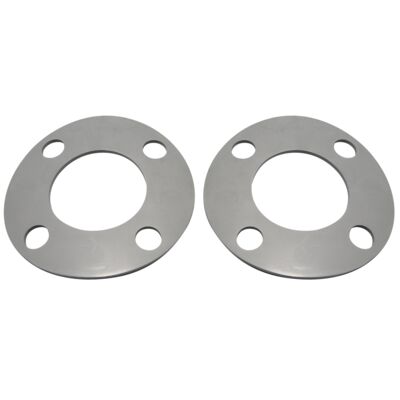

KIT GA-Q
Gasket Kit |
Series 3100, 3200 Dielectric Union</br></br> |
2 Ga Gaskets Per Kit</br> |
|
KIT GB-Q
Gasket Kit |
Series 3100, 3200 Dielectric Union</br></br> |
2 Gb Gaskets Per Kit</br> |
|
KIT GA-R
Gasket Kit |
Series 3100, 3200 Dielectric Union</br></br> |
2 Ga Gaskets Per Kit</br> |
|
KIT GB-R
Gasket Kit |
Series 3100, 3200 Dielectric Union</br></br> |
2 Gb Gaskets Per Kit</br> |
