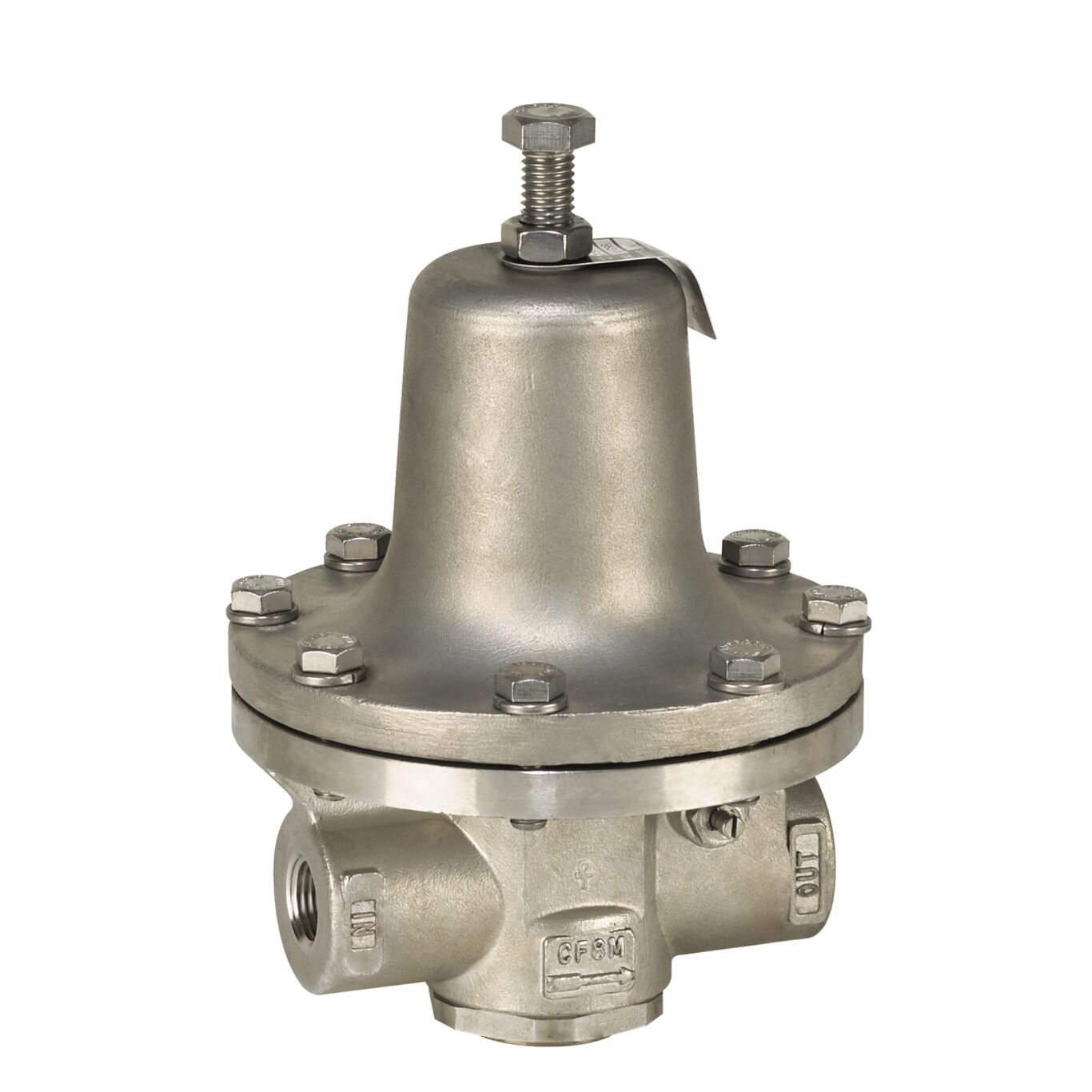

152SS
Stainless Steel Process Steam Pressure Regulators
152SS
Stainless Steel Process Steam Pressure Regulators
Features
- Highly sensitive response to reduced pressure changes, with ability to maintain full volume without appreciable reduced pressure drop
- Sensitivity adjuster eliminates vibrating that can arise due to critical flow requirements
- Serviceable in-line
- Stainless steel body with stainless steel strainer, seat, and diaphragm
Series 152SS Stainless Steel Process Steam Pressure Regulators are used in commercial, industrial, and institutional applications to regulate steam pressure in autoclaves, steam tables/irons, vulcanizers and large capacity process services. They are highly sensitive to reduced pressure changes. They have a stainless steel body construction with NPT threaded female inlet and outlet connections, stainless steel strainer, stainless steel seat, stainless steel diaphragm, PTFE disc, and sensitivity adjustment feature for critical flow. Series 152SS offers full volume with minimum pressure drop and in-line serviceability. It is ideal for use on sterilizers, process lines, testing fixtures, and oil lines. Tight seating Model 152SS-T available for dead end and liquid services. Maximum Supply Pressure: Up to 300psi (21 bar) at 420 degreeF (216 degreeC).
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 152SS
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

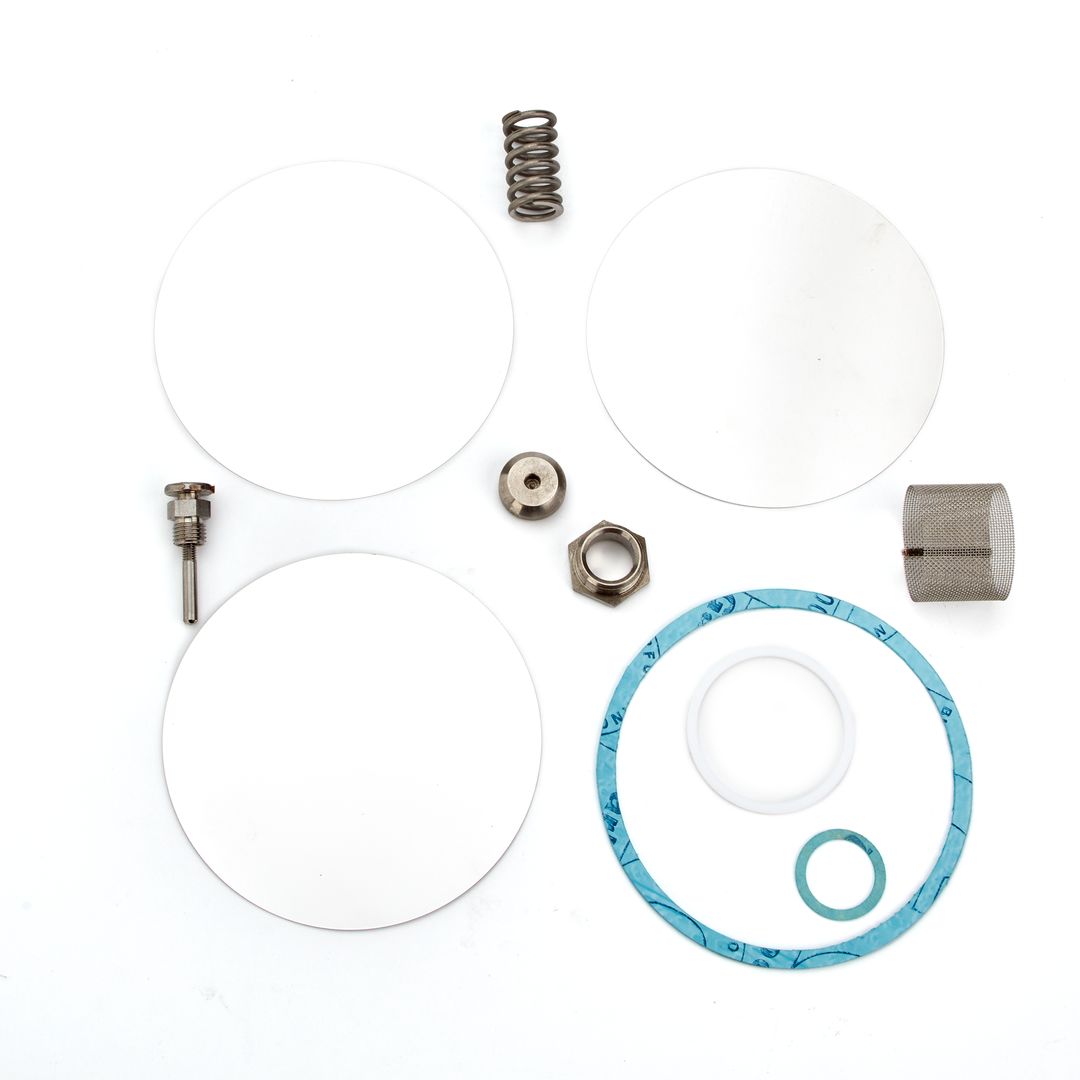

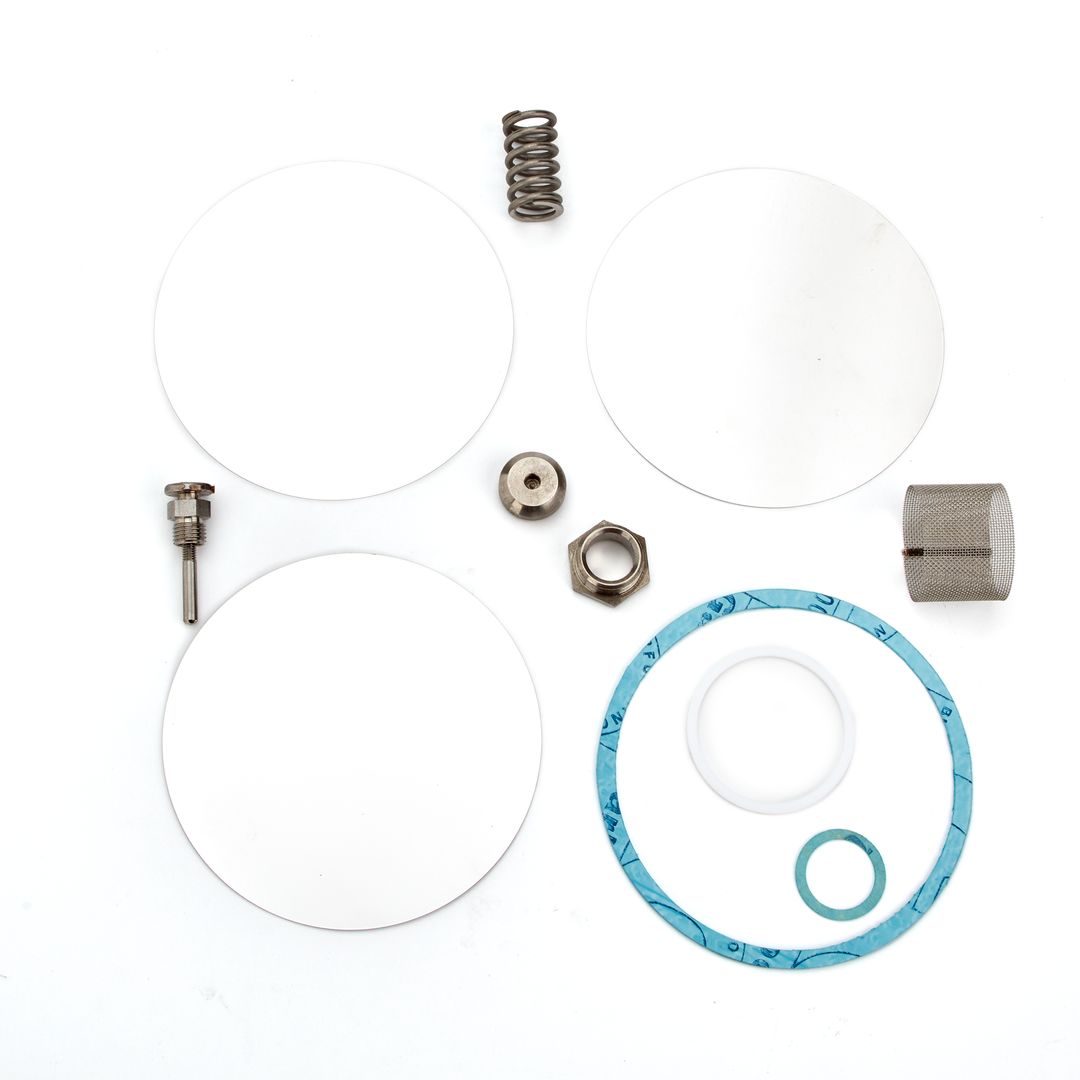

RK 152SS 3/4-1
Repair Kit |
Series 152SST Steam Pressure Regulator</br></br> |
Stem & Bushing Assembly, Diaphragm, Diaphragm Gasket, Bottom Plug Gasket, Strainer, Disc And Seat</br> |
|

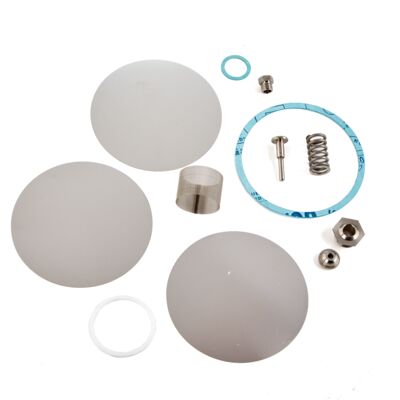

RK 152SS
Repair Kit |
Series 152SS and 152SST Steam Pressure Regulator</br></br> |
Stem and Bushing Assembly, Diaphragm, Diaphragm Gasket, Bottom Plug Gasket, Strainer, Disc and Seat</br> |
|

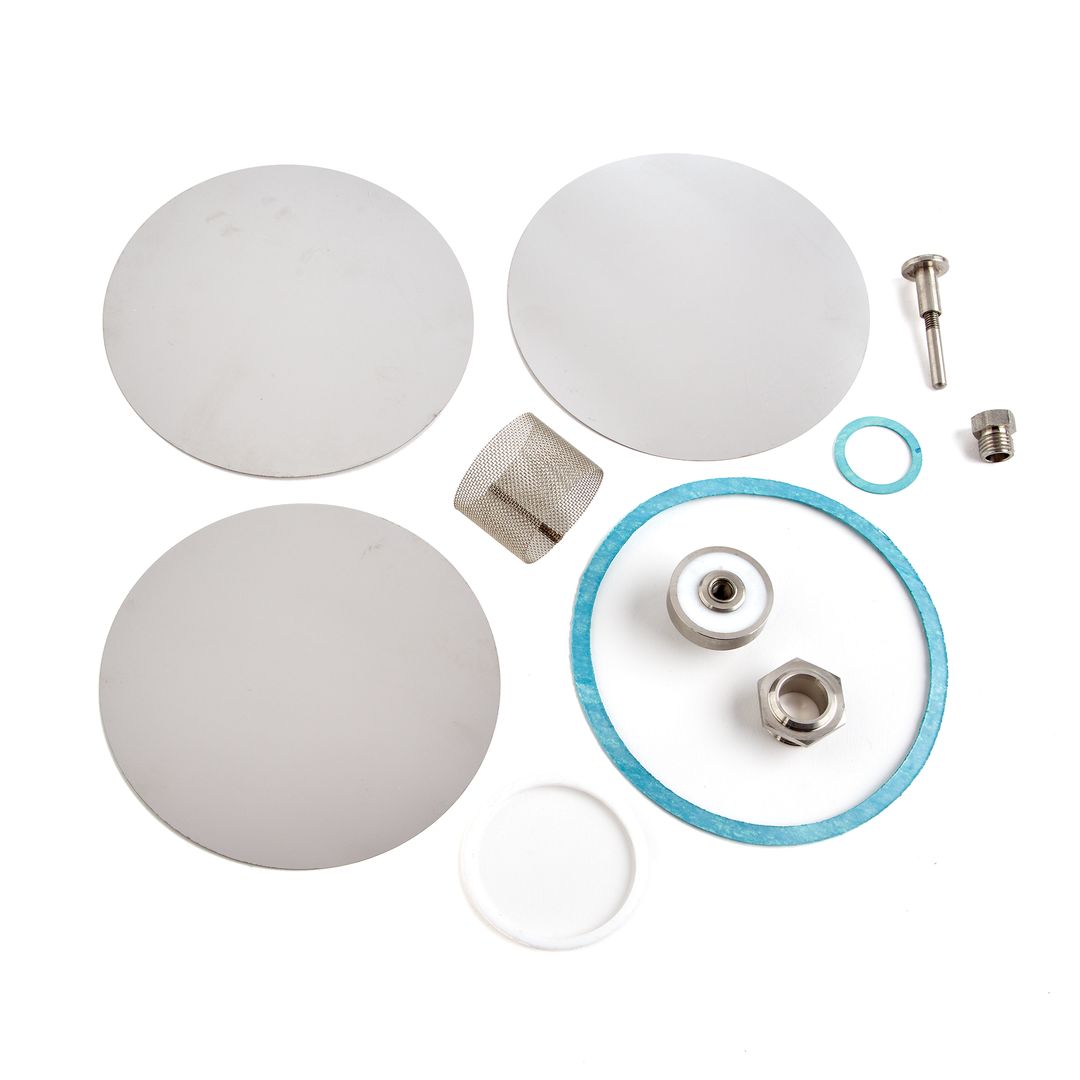

RK 152SST 3/4
Repair Kit |
Series 152SS Steam Pressure Regulator</br></br> |
Stem & Bushing Assembly, Diaphragm, Diaphragm Gasket, Bottom Plug Gasket, Strainer, Disc And Seat</br> |
|

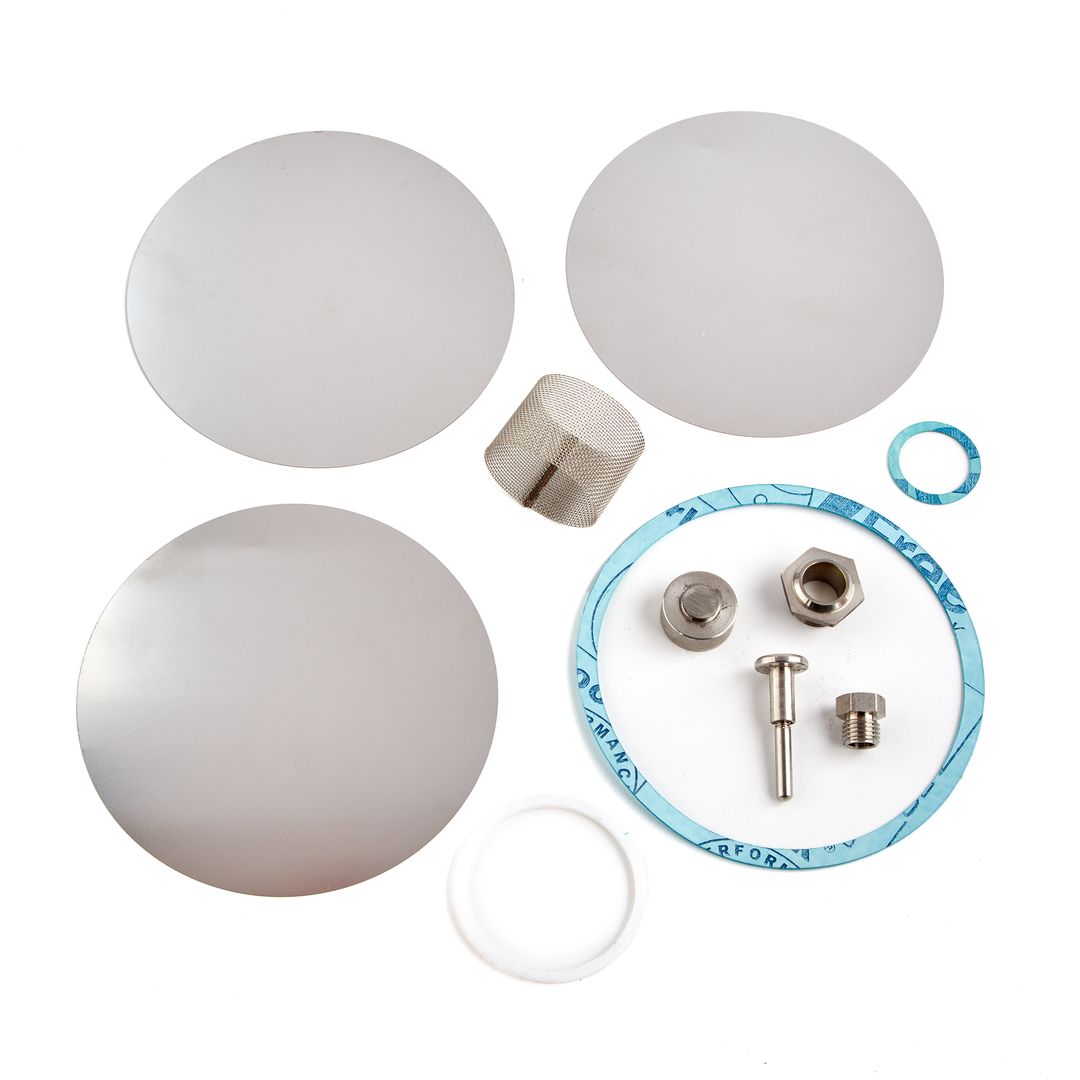

RK 152SST 1/2
Repair Kit |
Series 152SST Steam Pressure Regulator</br></br> |
Stem and Bushing Assembly, Diaphragm, Diaphragm Gasket, Bottom Plug Gasket, Strainer, Disc, Seat</br> |
