C200-BFG 8

Part of the C200 Series

Ordering Code: 0191419

UPC: 737733003960

Lead Free: YES

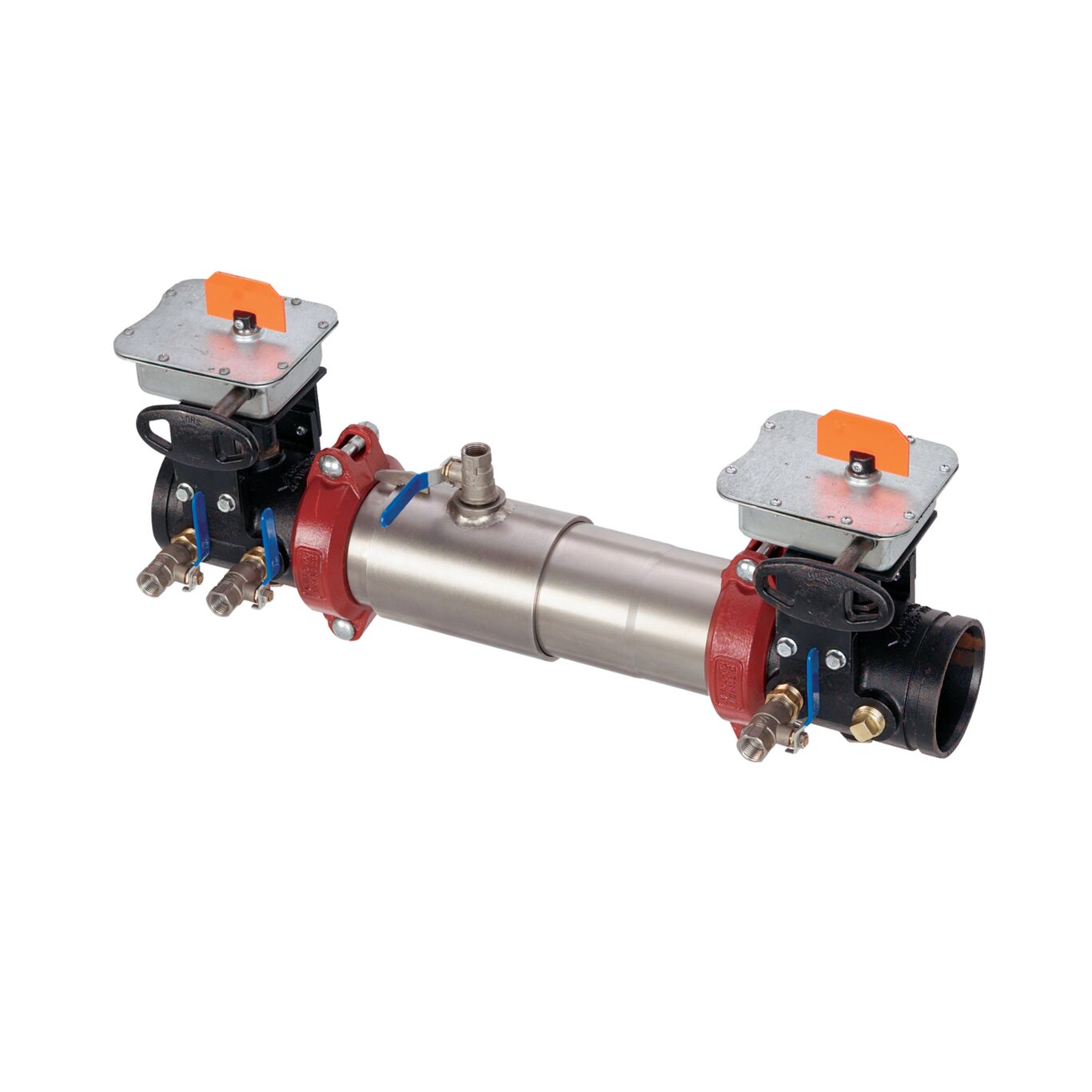

8 IN SS Double Check Valve Backflow Preventer Assembly, Colt, Grooved Gear Butterfly Shutoff Valves, Tri-Link Checks

This Colt(TM) 8 inch lead free double check valve backflow preventer assembly is designed to prevent the reverse flow of fire protection substances and water of non-potable quality from being pumped or siphoned into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is ideal for protection at cross-connections identified as non-health hazards such as on fire sprinkler systems and from other contaminants found at the service line entrance. This compact modular design with a single access sleeve for easy maintenance is approved for horizontal or vertical installation in accordance with the direction of the flow arrow on the assembly. It consists of a stainless steel body, tri-link check valves, grooved gear operated butterfly valves with tamper switch, and test cocks.

Features

Stainless steel body
Single housing sleeve access port design for easy maintenance
Ball valve type test cocks
No special tools are required
Compact design
Tri-link check modules provides lowest pressure loss
Groove fittings allow integral pipeline adjustment
The maximum working pressure is 175 psi (12.06 bar)
The wetted surface of this product contacted by consumable water contains less than one quarter of one percent (0.25 percent) of lead by weight

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Double Check Valve Assembly
Body Finish	Stainless Steel
Body Material	Stainless Steel
Body Pattern	Straight
Brand	Ames Fire & Waterworks
Buy American Act Compliant	NO
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Rubber
EAN	737733003960
Elbow Fitting	No
Hazard Protection Level	Non Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	8 IN
Inlet Connection Type	Grooved Joint
Inlet Shutoff Valve Type	Gear Operated Butterfly Valve
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	12.06
Maximum Working Pressure-PSI	175
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	8 IN
Outlet Connection Type	Grooved Joint
Outlet Shutoff Valve Type	Gear Operated Butterfly Valve
Outlet Thread Type	Does Not Apply To Product
Part Number	0191419
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backpressure and Backsiphonage
Seat Material	Rubber
Series	C200
Strainer	No
Tradename	Colt
