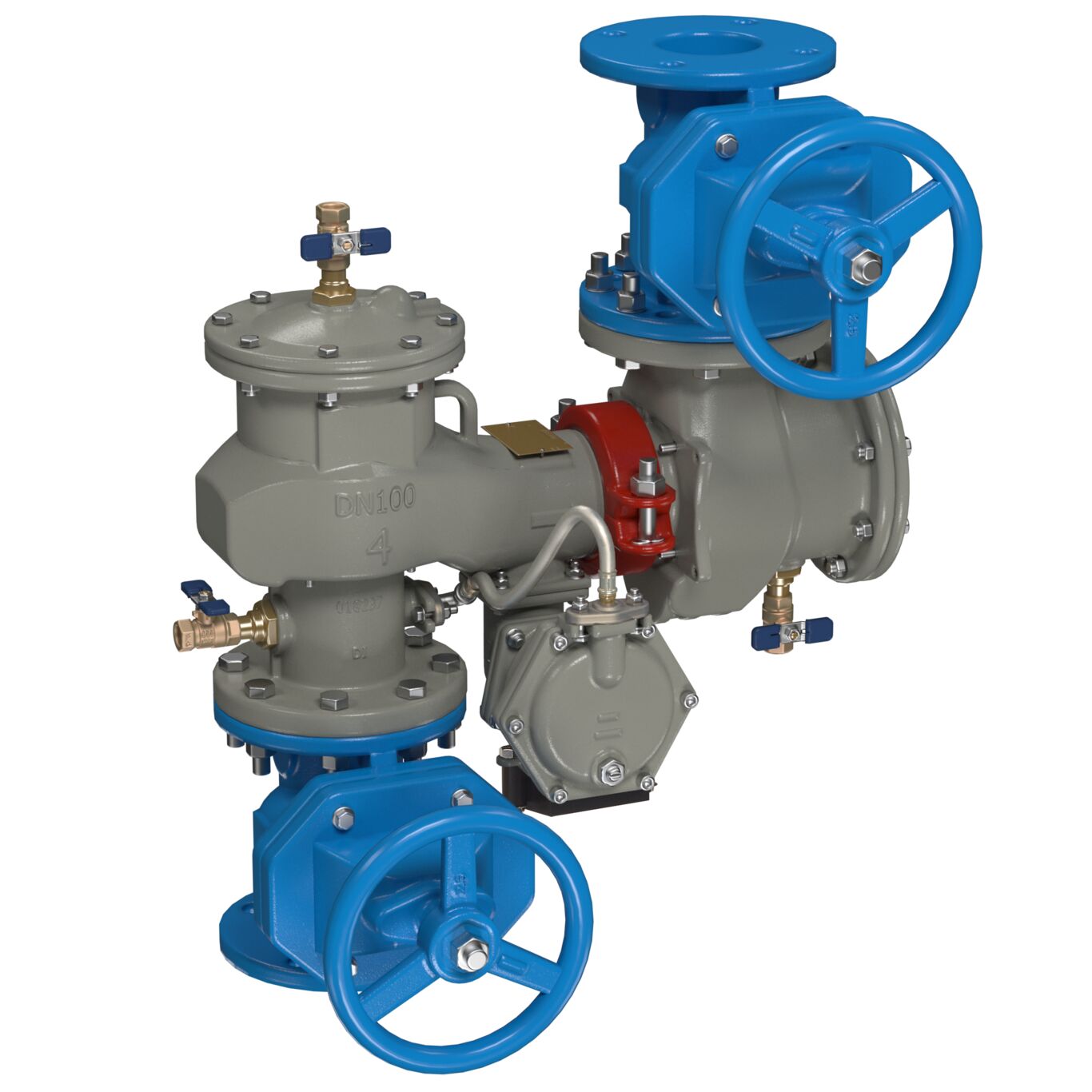

LF880WZ-DNRS-FS 4

Lead Free DI Reduced Pressure Zone Backflow Preventer Assy, Competitor Z-Pattern Lay Length, Dom NRS Shutoffs, SS RV Seat, N-Pattern, Backflow Flood Sensor

Part of the LF880V Series

Ordering Code: F8007376

UPC: 643925578942

Lead Free: YES

4 IN Lead Free DI Reduced Pressure Zone Backflow Preventer Assy, Competitor Z-Pattern Lay Length, Dom NRS Shutoffs, SS RV Seat, N-Pattern, Backflow Flood Sensor

This 4 inch lead free MasterSeries(R) configurable reduced pressure zone backflow preventer assembly help protect against high hazard (toxic) fluids in water services to industrial installations and applications. This valve features a longer lay-length for drop-in replacement of competitor?s Z-pattern valves. This assembly with domestic non-rising stem shutoff valves consists of a lead free body, test cocks, spring loaded check valves, and a pressure differential relief valve. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
Alert features available with add-on sensor connection kit
Competitor Drop-in Replacement Lay Length
Ductile iron body epoxy coated using ArmorTek corrosion resistant technology
Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
Domestic NRS Shutoffs
Field reversible relief valve
Stainless steel springs
EPDM elastomer discs

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Reduced Pressure Zone Assembly
Body Finish	Epoxy Coated Using ArmorTek Technology
Body Material	Ductile Iron
Body Pattern	Z-Pattern
Brand	FEBCO
Bypass	No
Bypass Size	Does Not Apply To Product
Cap And Tether	No
Disc Material	Silicone
EAN	643925578942
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	4 IN
Inlet Connection Size-Metric	100 MM
Inlet Connection Type	Flanged Joint
Inlet Shutoff Valve Type	Non Rising Stem Gate Valve
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	No Meter
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	4 IN
Outlet Connection Type	Flanged Joint
Outlet Shutoff Valve Type	Non Rising Stem Gate Valve
Outlet Thread Type	Does Not Apply To Product
Part Number	F8007376
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backpressure and Backsiphonage
Seat Material	Stainless Steel
Series	LF880V
Strainer	No
Technologies	Flood Detection
Tradename	MasterSeries(R)
