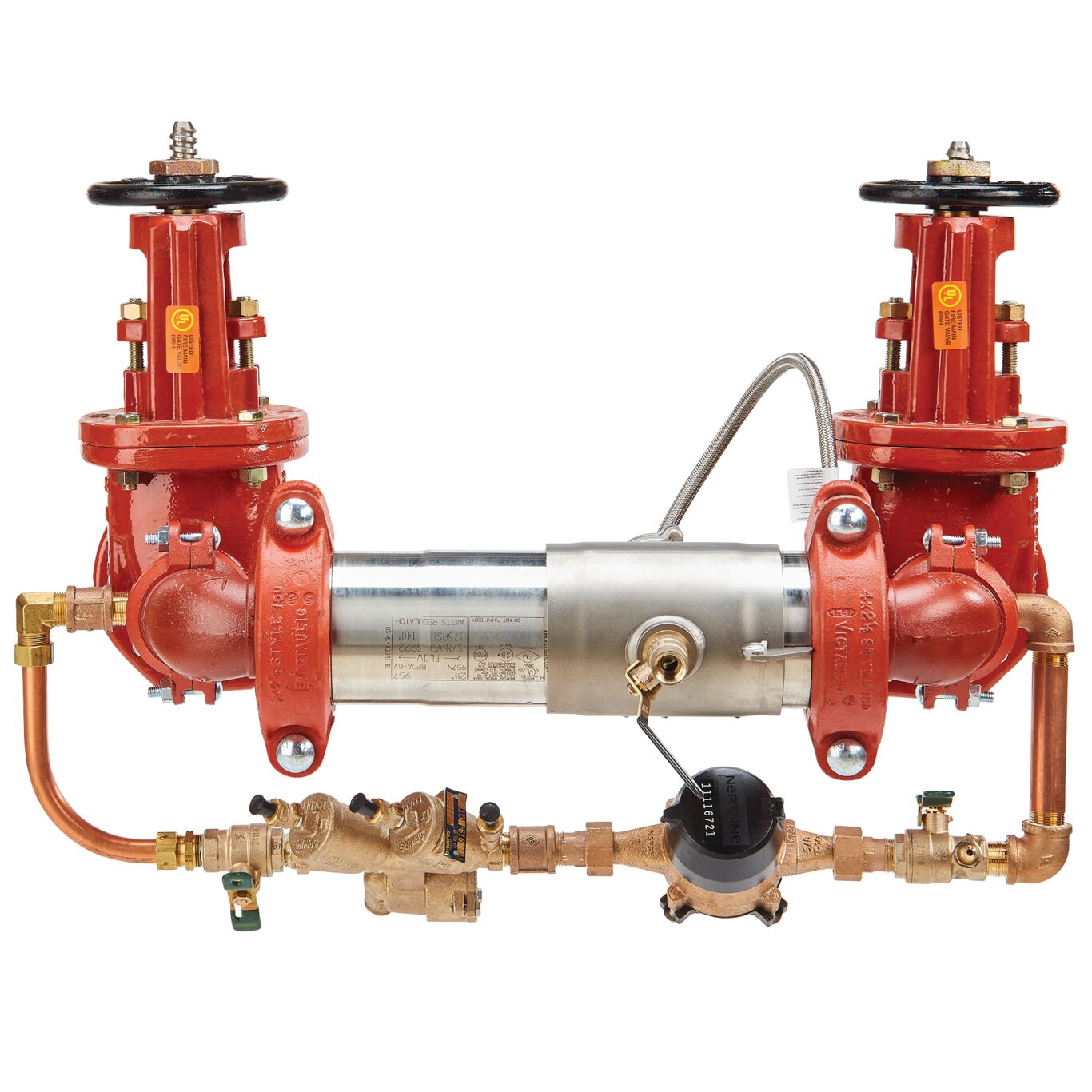

957RPDA
Reduced Pressure Detector Assembly Backflow Preventers with Flood Sensor, Stainless Steel – Sizes 2 1/2 - 10 IN
957RPDA
Reduced Pressure Detector Assembly Backflow Preventers with Flood Sensor, Stainless Steel – Sizes 2 1/2 - 10 IN
Features
- Sensor on the relief valve for flood detection
- Extremely compact stainless steel body with stainless steel internal parts
- Ideal for health hazard cross-connection such as on fire sprinkler systems

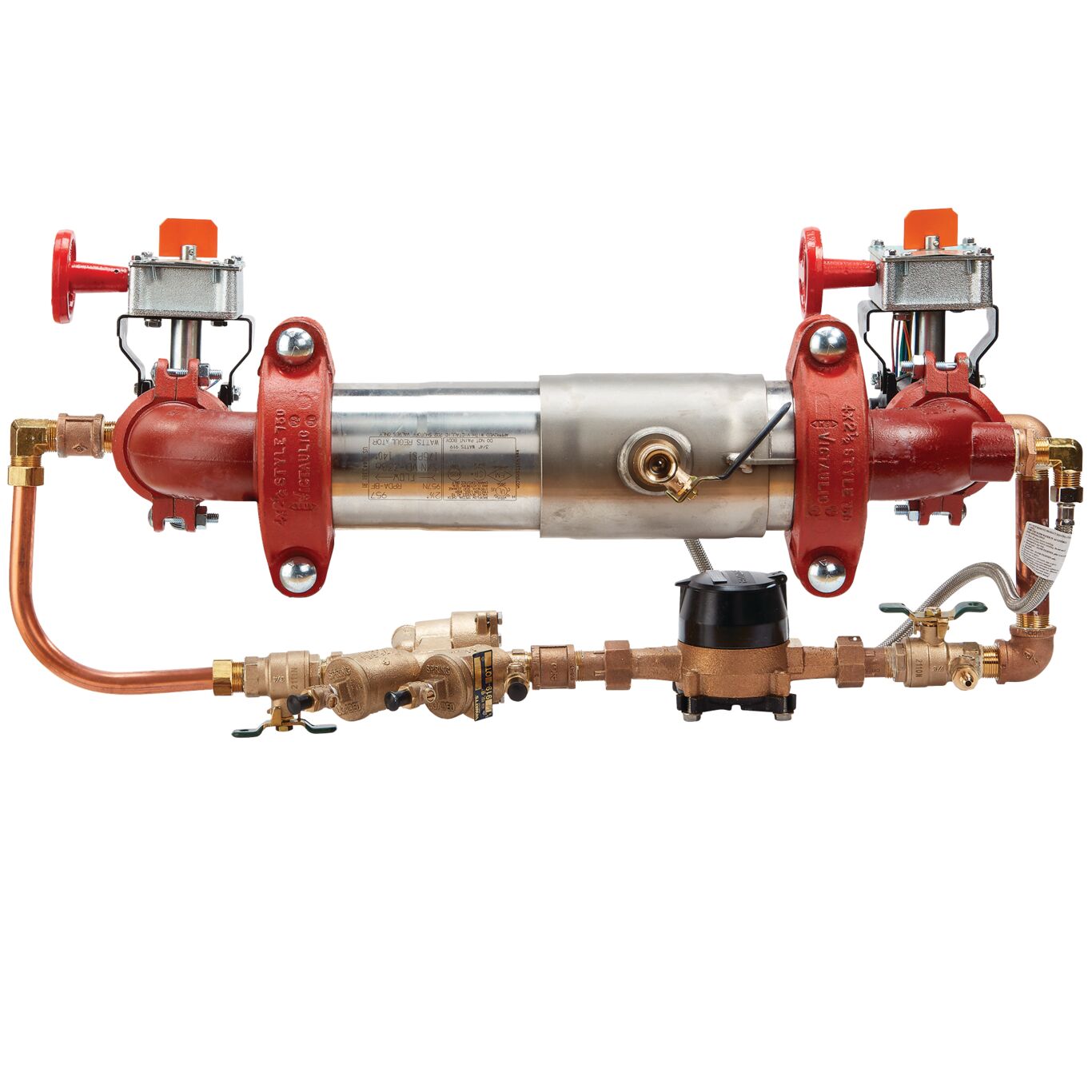

- Available with quarter-turn ball valve shutoffs or grooved butterfly valve shutoffs
- Torsion spring checks providing the lowest pressure loss
- Lightweight stainless steel construction (70% lighter than traditional designs)
- Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
Nexa pairs integrated sensing hardware with free, upgradable software to empower facilities with unprecedented visibility and control over their water systems, helping teams protect assets, deliver consistent performance, and drive measurable ROI.
Learn more about Nexa

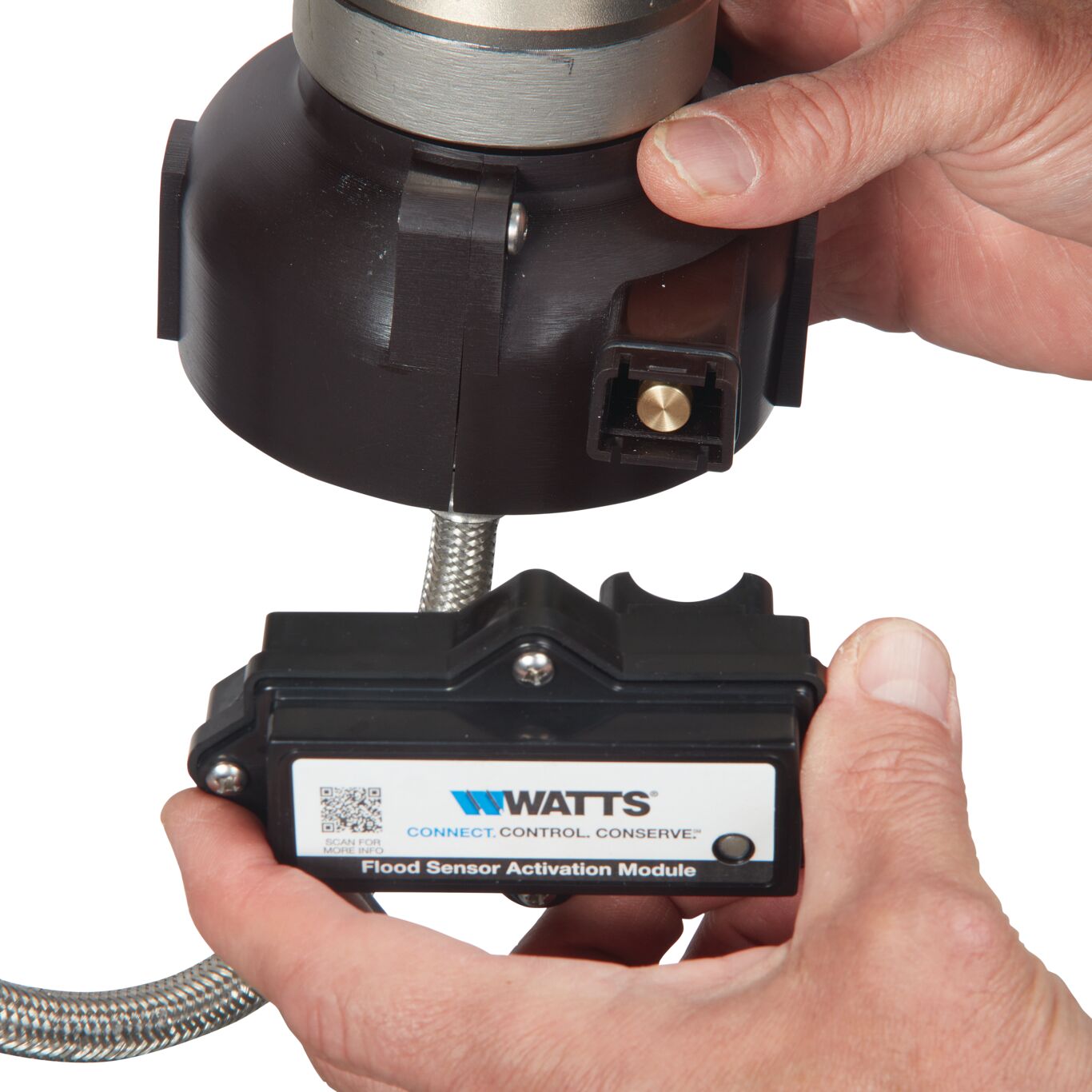

Series 957RPDA reduced pressure detector assemblies feature a flood sensor using SentryPlus Alert® technology to detect continuous discharge from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
This series help stop the reverse flow of fire protection system substances being pumped or siphoned into the potable water supply. A meter incorporated to detect ground leaks and unauthorized illegal taps greatly reduces annual water expenses. Check with local water authorities for installation requirements.
To learn more visit: https://www.watts.com/floodprotectionsystem
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Video - Connected Backflow Flood Detection
Learn how Watts flood sensors integrated with backflow prevention assemblies provide real-time alerts for excessive relief valve discharge, helping prevent water damage and facility downtime.
Runtime : 00:01:10Watch Now
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 957RPDA
No results found
| Model | Used On - Series or Model | Kit Contents |
|---|---|---|
|
FP-RFK-BF-BMS-CFS 2 1/2-10
Activation Kit |
</br>957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |
Flood Sensor, Sensor Activation Module with Cable, Ground Wire, Power Adapter</br> |
|
FP-RFK-BF-CFS 2 1/2-10
Activation Kit |
</br>957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |
Flood Sensor, Sensor Activation Module with Cable, Cellular Gateway with Mounting Kit, Ground Wire, Power Adapter</br> |
|

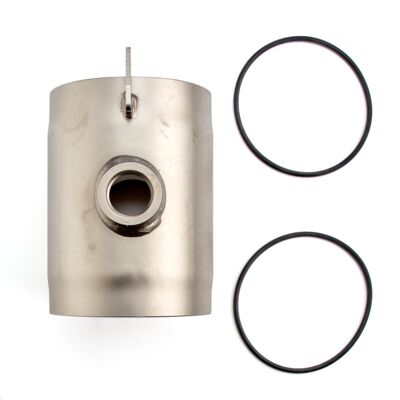

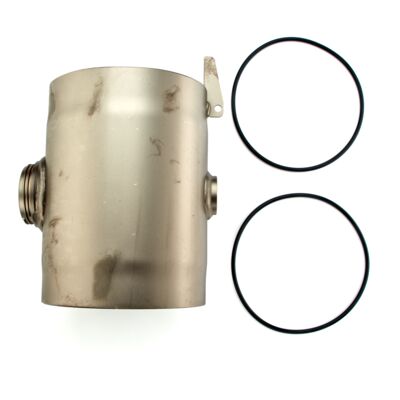

RK 957/957RPDA-C 2 1/2-4
Check Sleeve Cover Kit |
</br>957, 957RPDA</br> |
Closure Sleeve, Sleeve O-ring, Gasket</br> |
|

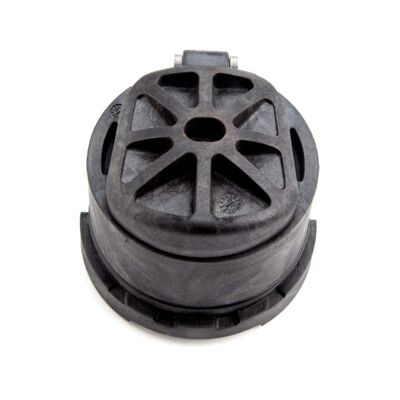

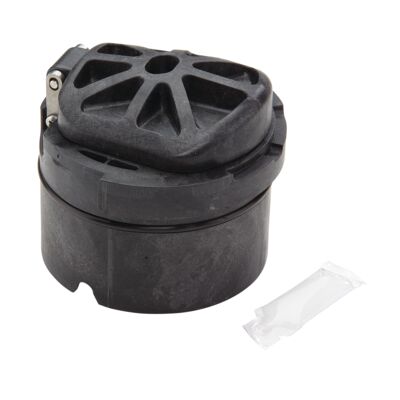

RK 957/957RPDA-CK2 2 1/2-4
Second Check Kit |
</br>957, LF957RPDA, 957RPDA</br> |
Second Check Module, Check Module O-ring, EPDM Disc Elastomer</br> |
|

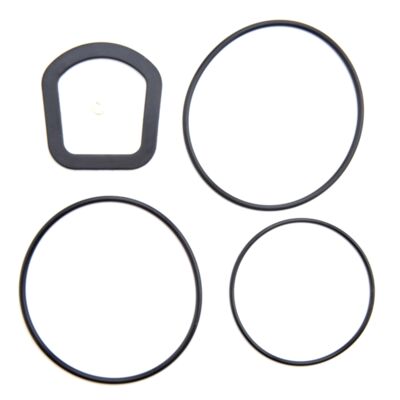

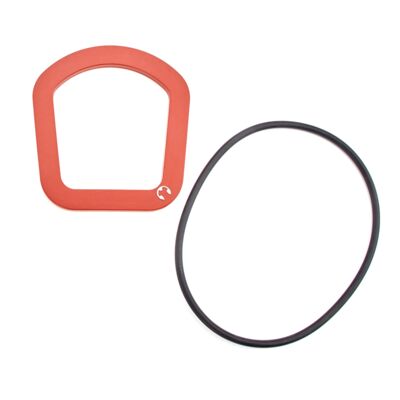

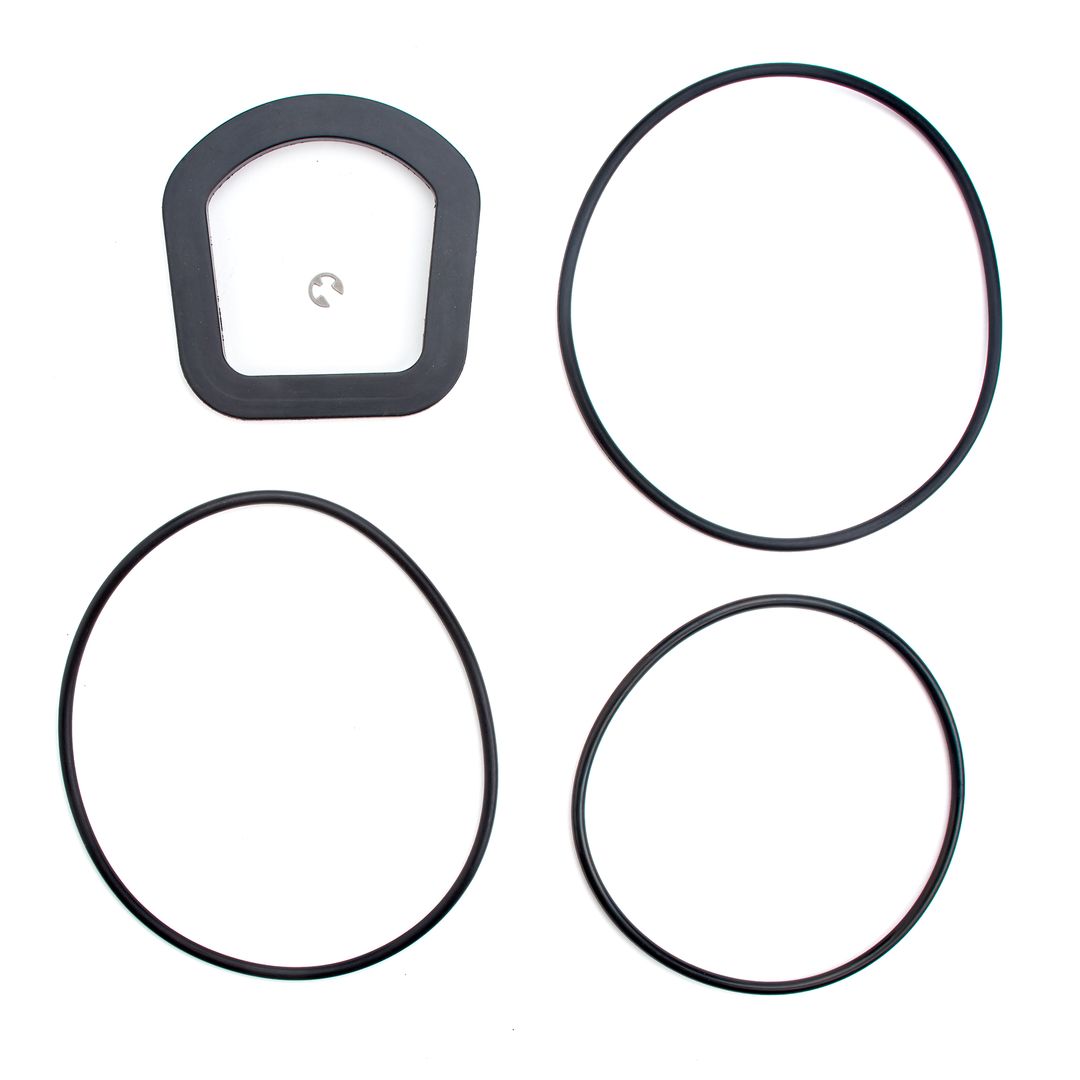

RK 957/957RPDA-RC4 2 1/2-4
Check Rubber Parts Kit |
</br>957, 957RPDA</br> |
Check Module O-ring, EPDM Disc Elastomer, E-Clip</br> |
|

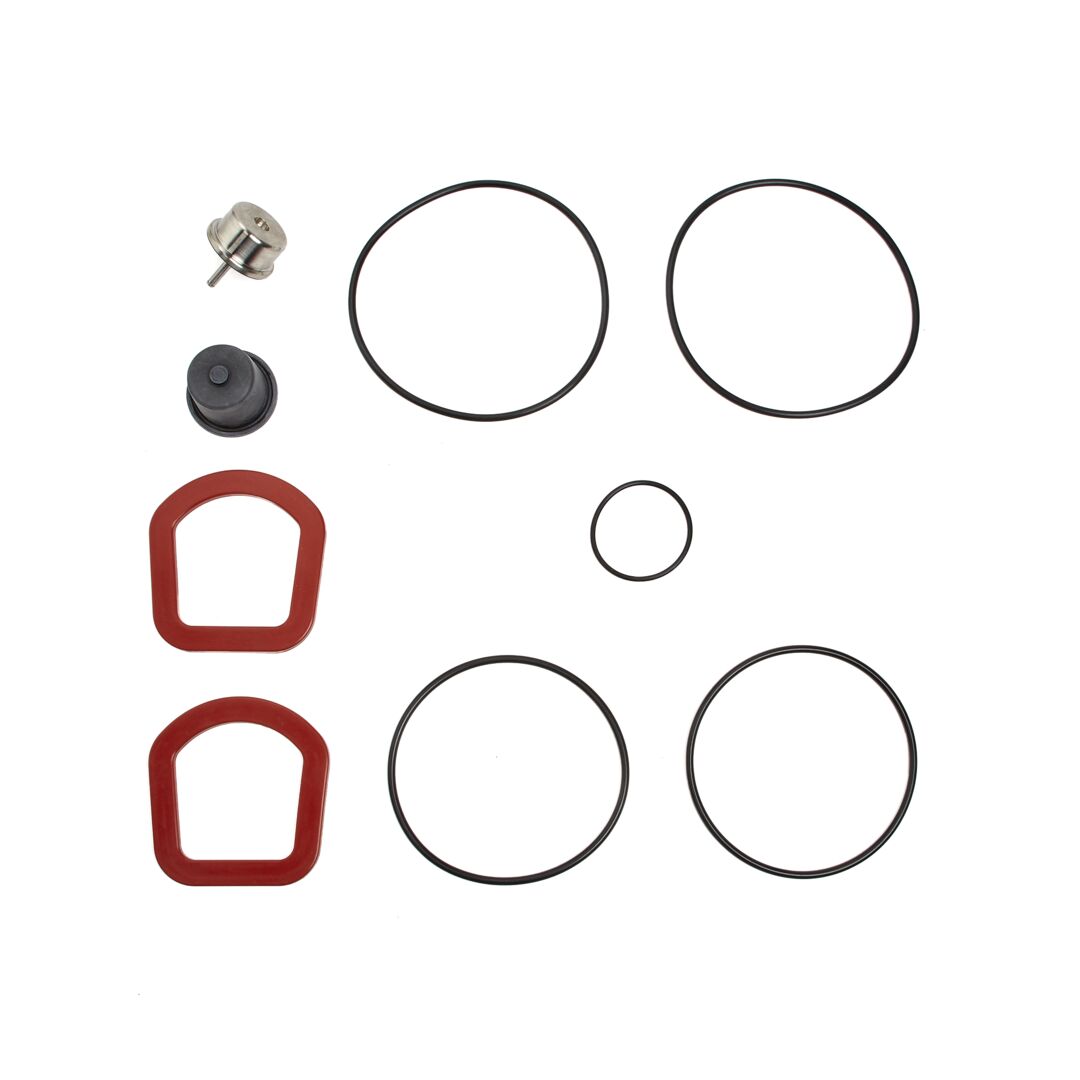

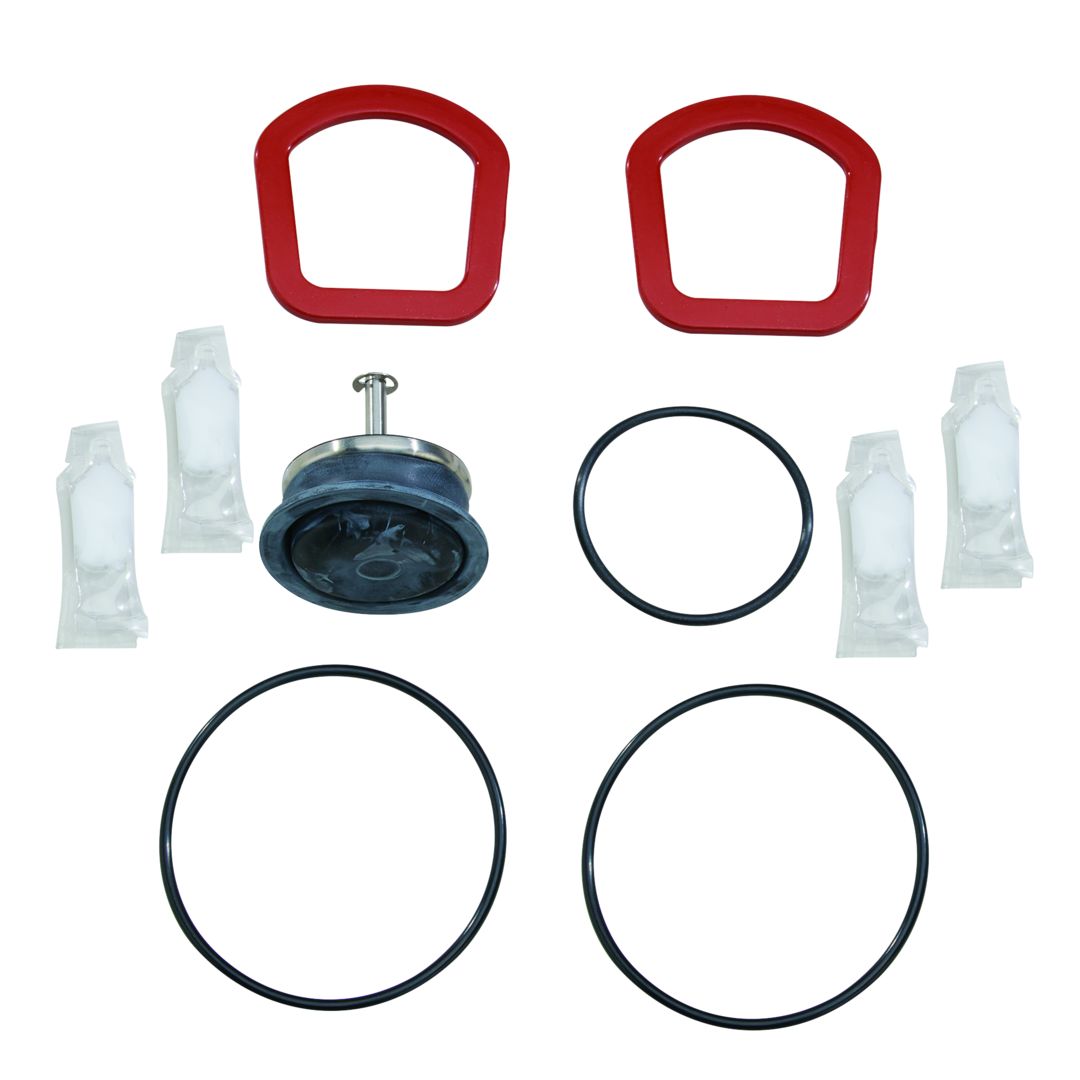

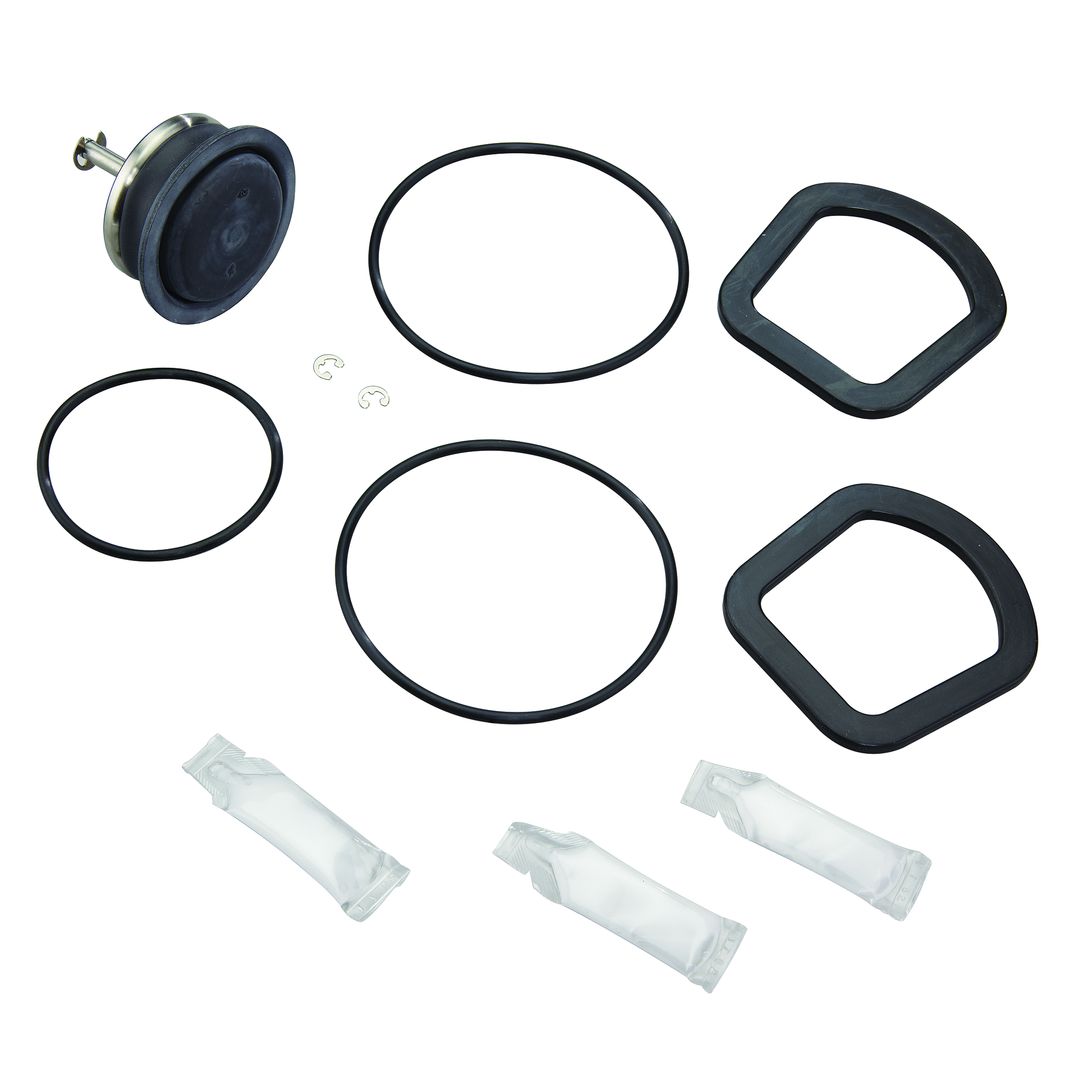

RK 957/957RPDA-RT 2 1/2-4
Complete Rubber Parts Kit |
</br>957, LF957RPDA, 957RPDA</br> |
First and Second Check Module O-rings, 2 EPDM Disc Elastomers, 2 E-Clips, Relief Valve Diaphragm, Relief Valve Inlet Coupler O-ring, Relief Valve Piston Assembly</br> |
|

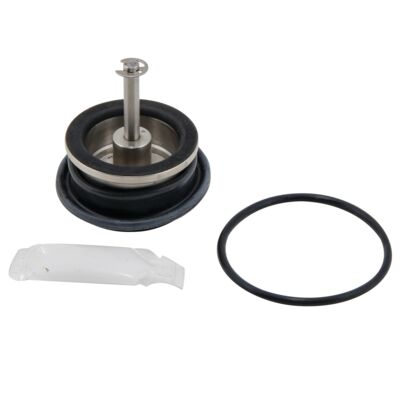

RK 957/957RPDA-RV
Relief Valve Rubber Parts Kit |
</br>957, LF957RPDA, 957RPDA</br> |
Diaphragm, Inlet Coupler O-ring, Piston Assembly</br> |
|

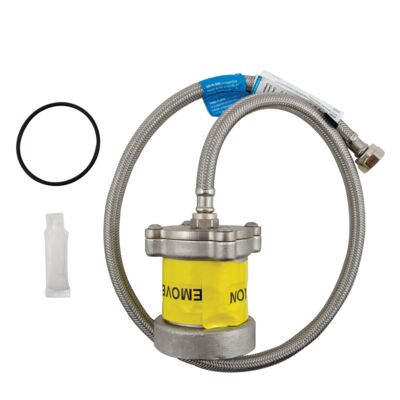

RK 957/957RPDA-VT
Total Relief Valve Kit |
</br>957, LF957RPDA, 957RPDA</br> |
Complete Relief Valve Assembly</br> |
|
RK 957/RPDA-CK1-RS
First Check Kit |
</br>957, 957RPDA</br> |
First Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|
RK 957/RPDA-CK2-RS
Second Check Kit |
</br>957, 957RPDA</br> |
Second Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|

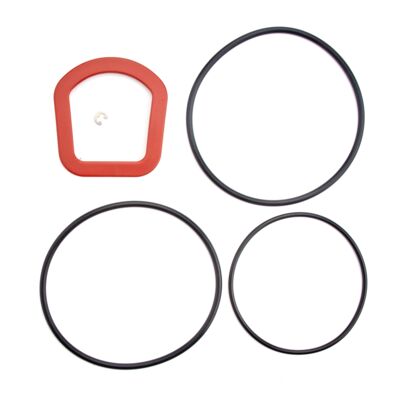

RK 957/RPDA-RC4-RS
Check Rubber Parts Kit |
</br>995, 995RPDA</br> |
Check Module O-ring, Red Silicone Disc Elastomer, E-Clip</br> |
|

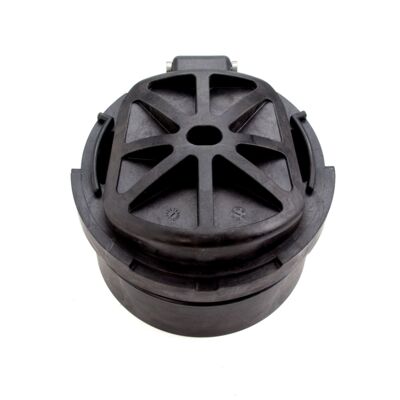

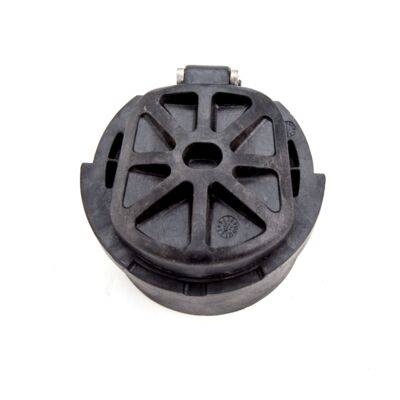

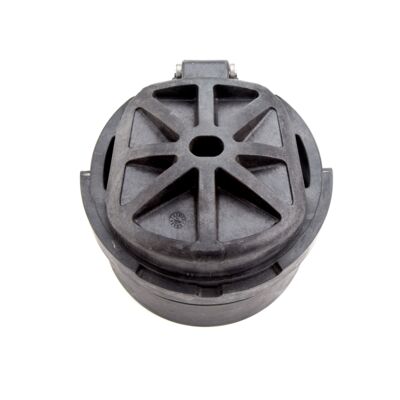

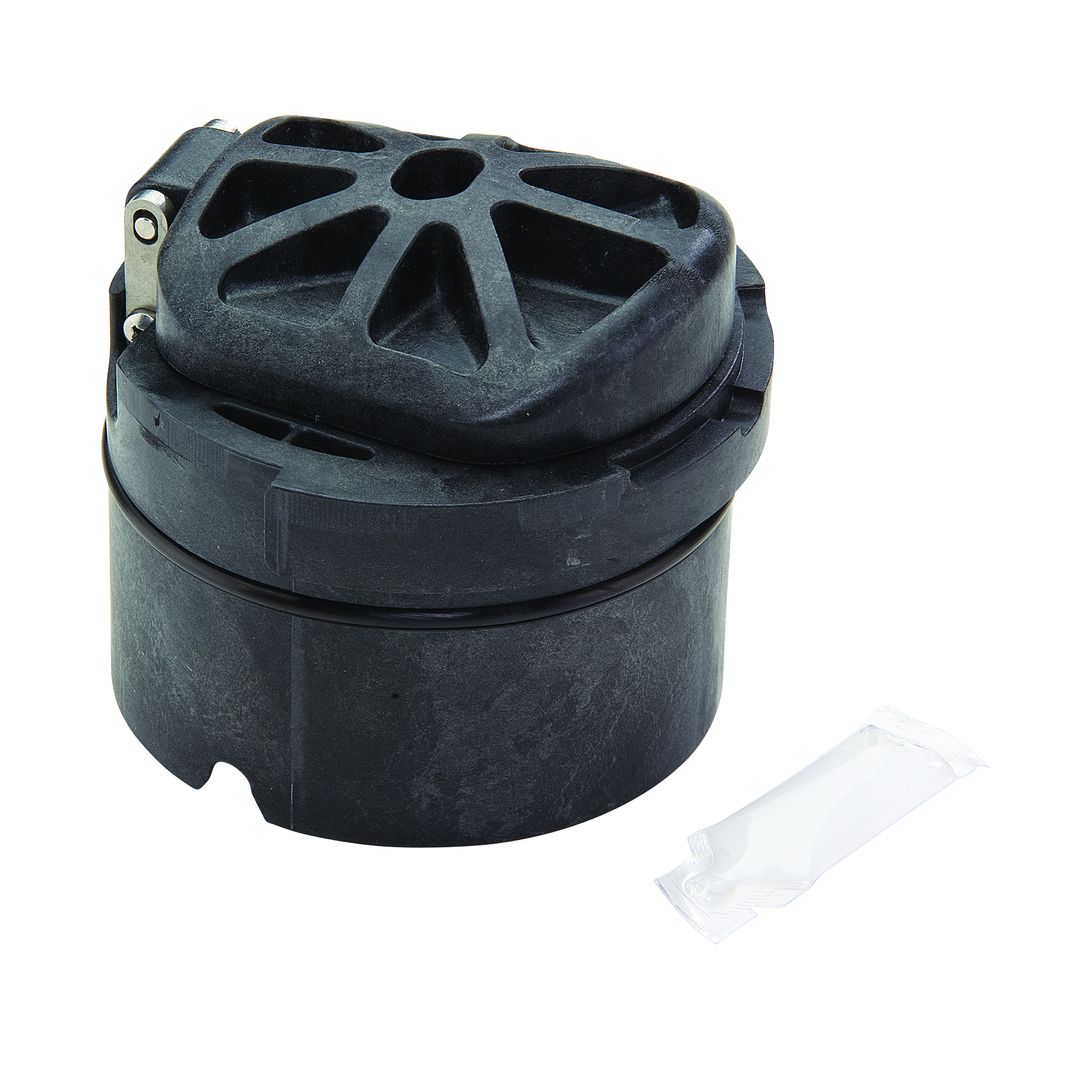

RK 957-957RPDA-CK1
First Check Kit |
</br>957, LF957RPDA, 957RPDA</br> |
First Check Module, Check Module O-ring, EPDM Disc Elastomer</br> |
|

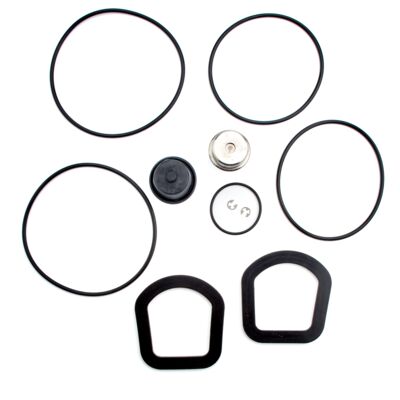

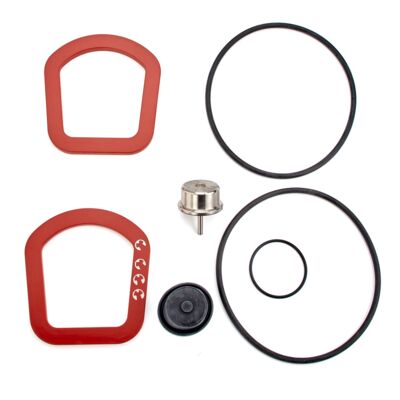

RK957/RPDA-RT-RS
Complete Rubber Parts Kit |
</br>957, 957RPDA</br> |
First and Second Check Module O-rings, 2 Red Silicone Disc Elastomers, 2 E-Clips, Relief Valve Diaphragm, Relief Valve Inlet Coupler O-ring, Relief Valve Piston Assembly</br> |
|
SCM-BF-CONN KIT
Activation Kit |
</br>Watts 009/LF009, LF909, LF919, 909RPDA, 957, 957RPDA, 994, 994RPDA; Ames C400, C500, 5000SS, 4000SS, FEBCO LF860, 825Y, LF825Y, LF866, LF880V, LF886V</br> |
Sensor Control Monitor, Power Adapter, Mounting Feet, and Quick Start Guide</br> |
|
FP-BF-BMS 2 1/2-10
Activation Kit |
</br>009, LF009, LFU009, SS009, U009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |
Sensor Activation Module with Cable, Ground Wire, Power Adapter</br> |
|
FP-BF-CFS 2 1/2-10
Activation Kit |
</br>009, LF009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |
Sensor Activation Module with Cable, Cellular Gateway with Mounting Kit, Ground Wire, Power Adapter</br> |
|
FP-BF-SA-994/957/AMES-2 1/2-12
Upgrade/Repair Kit |
</br>994, 994RPDA, 957, 957RPDA, LF957RPDA, 4000SS, 5000SS, C400, C500, LFC500</br> |
Flood Sensor with 2 Mounting Bolts</br> |
|
RK 957/957RPDA-C 6
Check Sleeve Cover Kit |
</br>957, 957RPDA</br> |
Closure Sleeve, Sleeve O-ring, Gasket</br> |
|

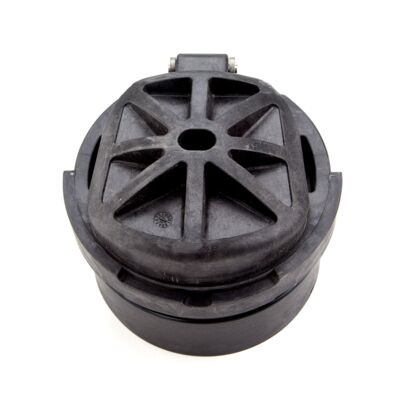

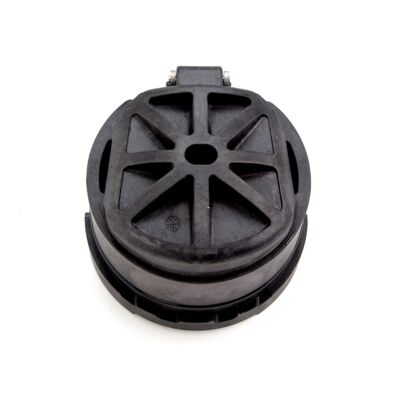

RK 957/957RPDA-CK1 6
First Check Kit |
</br>957, 957RPDA</br> |
First Check Module, Check Module O-ring, EPDM Disc Elastomer</br> |
|
RK 957/957RPDA-CK1-RS
First Check Kit |
</br>957, 957RPDA</br> |
First Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|

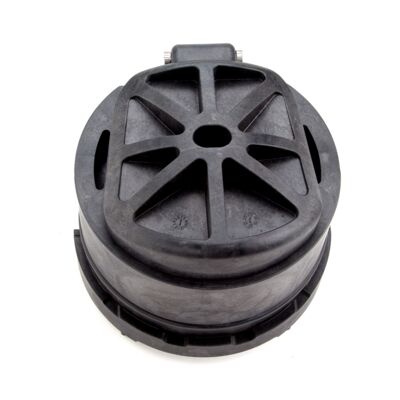

RK 957/957RPDA-CK2 6
Second Check Kit |
</br>957, 957RPDA</br> |
Second Check Module, Check Module O-ring, EPDM Disc Elastomer</br> |
|
RK 957/957RPDA-CK2-RS
Second Check Kit |
</br>957, 957RPDA</br> |
Second Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|
RK 957/957RPDA-RC4 6
Check Rubber Parts Kit |
</br>957, 957RPDA</br> |
Check Module O-ring, EPDM Disc Elastomer, E-Clip</br> |
|
RK 957/957RPDA-RC4-RS
Check Rubber Parts Kit |
</br>957, 957RPDA</br> |
Check Module O-ring, Red Silicone Disc Elastomer, E-Clip</br> |
|
RK 957/957RPDA-RT 6
Complete Rubber Parts Kit |
</br>957, 957RPDA</br> |
First and Second Check Module O-rings, 2 EPDM Disc Elastomers, 2 E-Clips, Relief Valve Diaphragm, Relief Valve Inlet Coupler O-ring, Relief Valve Piston Assembly</br> |
|
RK 957/957RPDA-RT-RS
Complete Rubber Parts Kit |
</br>957</br> |
First and Second Check Module O-rings, 2 Red Silicone Disc Elastomers, 2 E-Clips, Relief Valve Diaphragm, Relief Valve Inlet Coupler O-ring, Relief Valve Piston Assembly</br> |
|
RK 957/957RPDA-C 8
Check Sleeve Cover Kit |
</br>957, 957RPDA</br> |
Closure Sleeve, Sleeve O-ring, Gasket</br> |
|

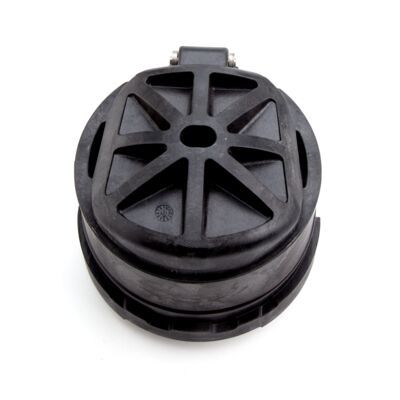

RK 957/957RPDA-CK1 8
First Check Kit |
</br>957, 957RPDA</br> |
First Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|
RK 957/957RPDA-CK2 8
Second Check Kit |
</br>957, 957RPDA</br> |
Second Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|
RK 957/957RPDA-RC4 8
Check Rubber Parts Kit |
</br>957, 957RPDA</br> |
Check Module O-ring, Red Silicone Disc Elastomer, E-Clip</br> |
|
RK 957/957RPDA-RT 8
Complete Rubber Parts Kit |
</br>957, 957RPDA</br> |
First and Second Check Module O-rings, 2 Red Silicone Disc Elastomers, 2 E-Clips, Relief Valve Diaphragm, Relief Valve Inlet Coupler O-ring, Relief Valve Piston Assembly</br> |
|

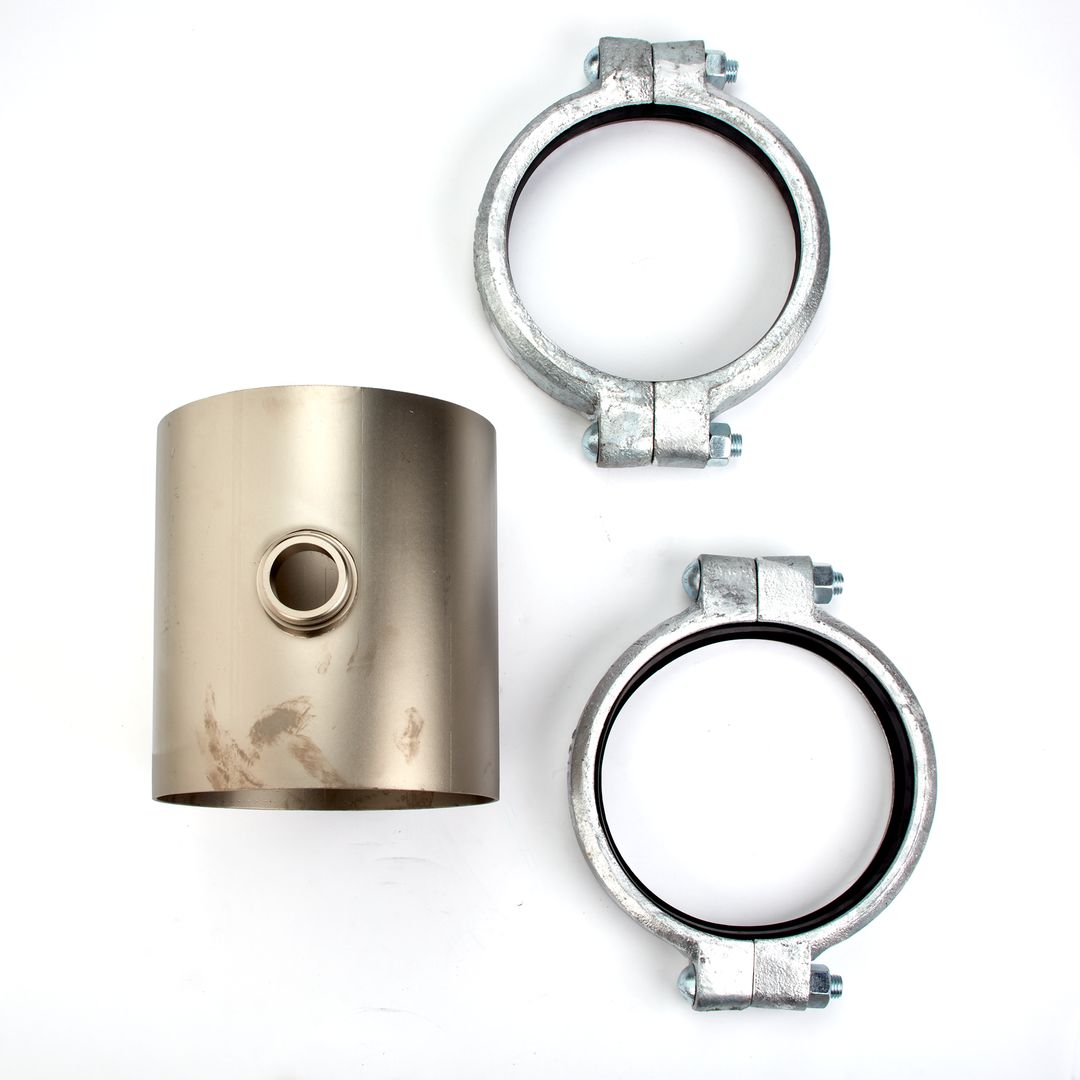

RK 957/957RPDA-C 10
Check Sleeve Cover Kit |
</br>957, 957RPDA</br> |
Closure Sleeve, Sleeve O-ring, Gasket</br> |
|

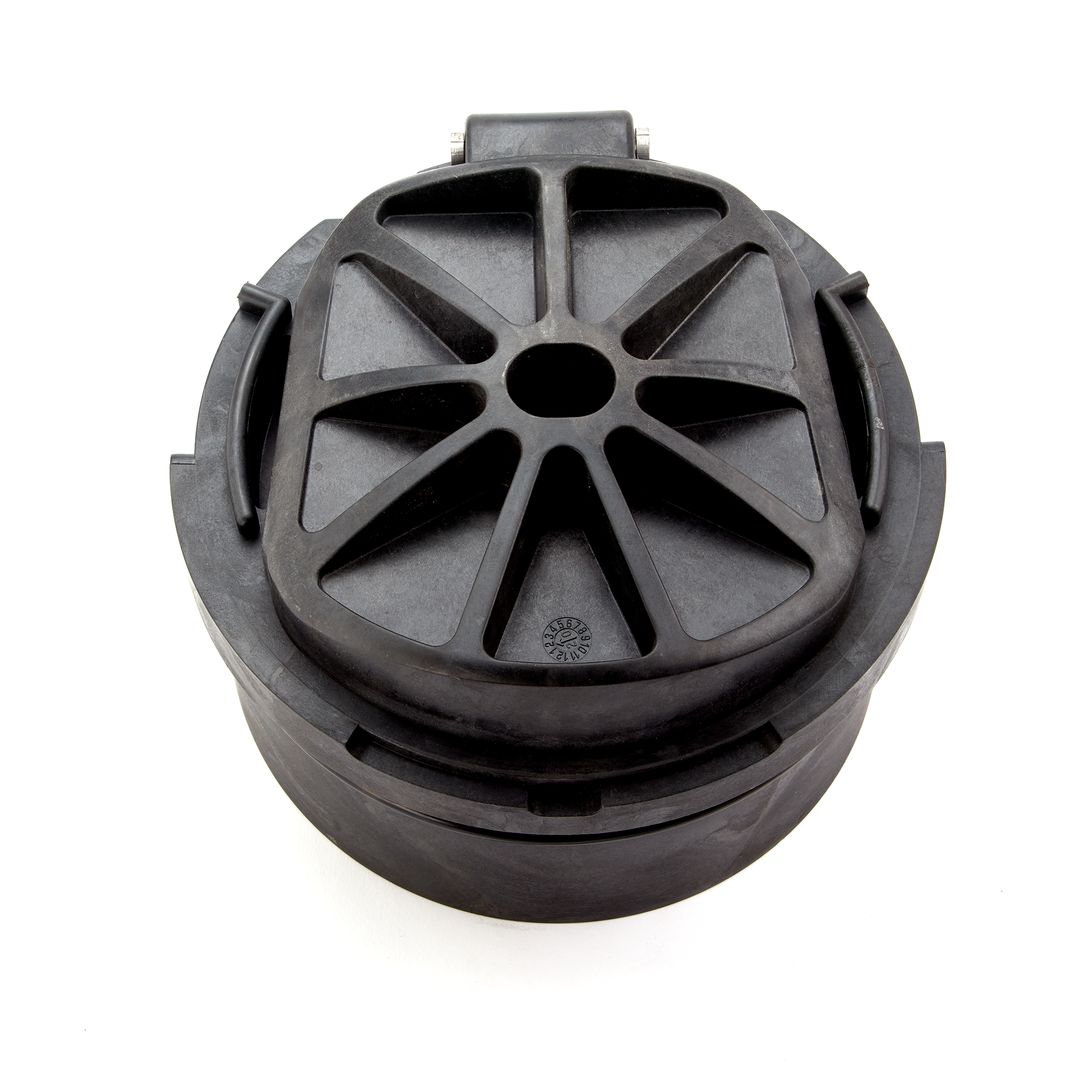

RK 957/957RPDA-CK1 10
First Check Kit |
</br>957, 957RPDA</br> |
First Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|

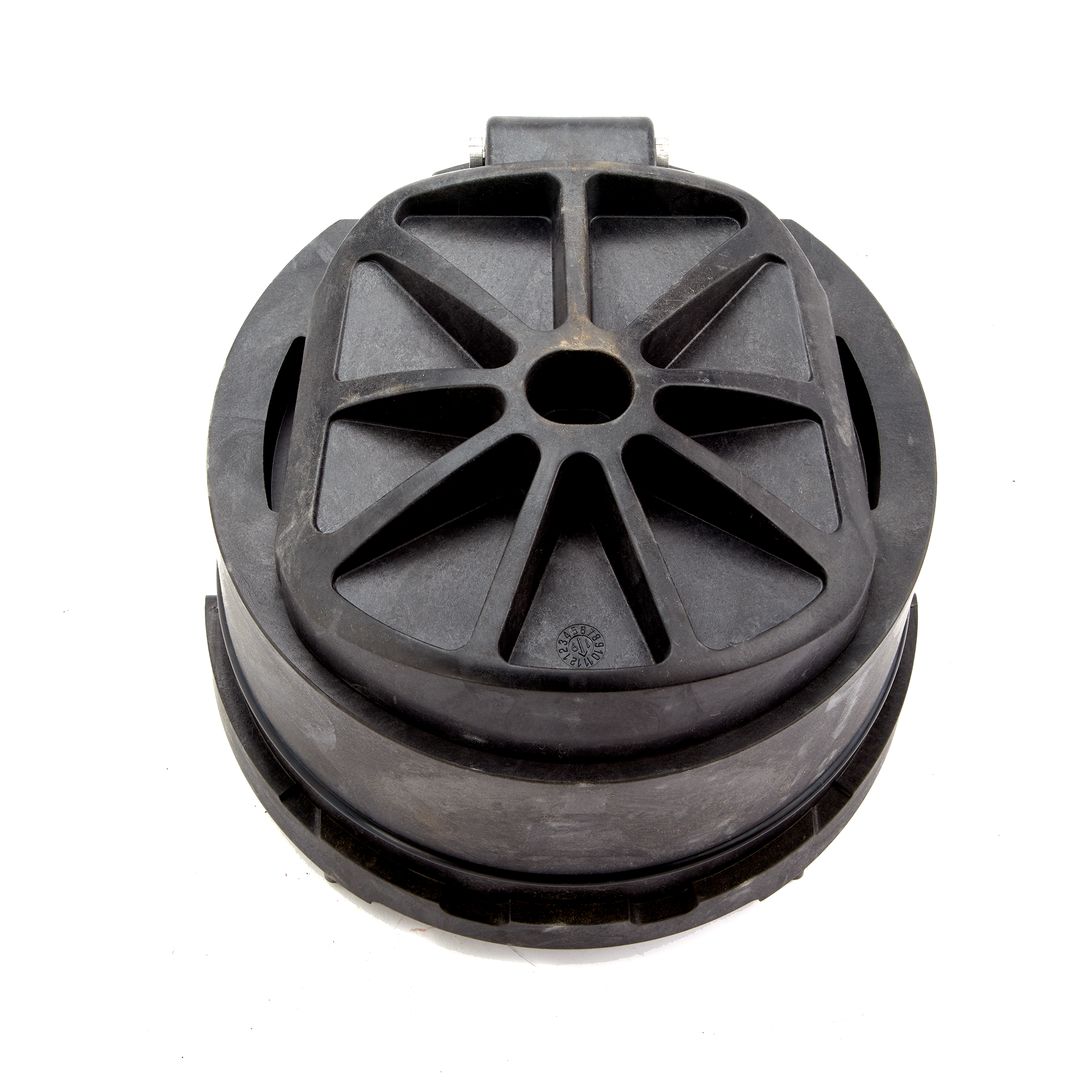

RK 957/957RPDA-CK2 10
Second Check Kit |
</br>957, 957RPDA</br> |
Second Check Module, Check Module O-ring, Red Silicone Disc Elastomer</br> |
|

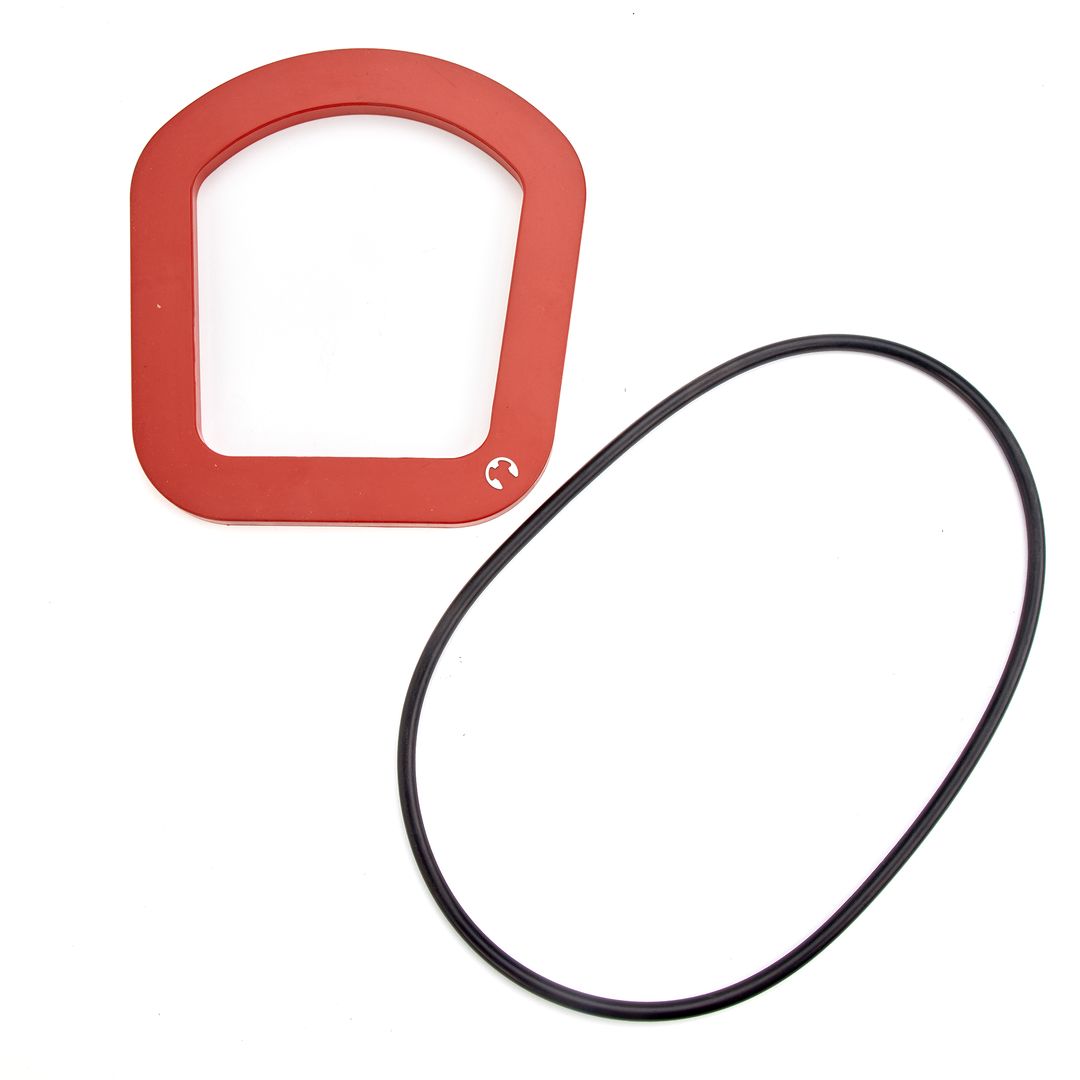

RK 957/957RPDA-RC4 10
Check Rubber Parts Kit |
</br>957, 957RPDA</br> |
Check Module O-ring, Red Silicone Disc Elastomer, E-Clip</br> |
|

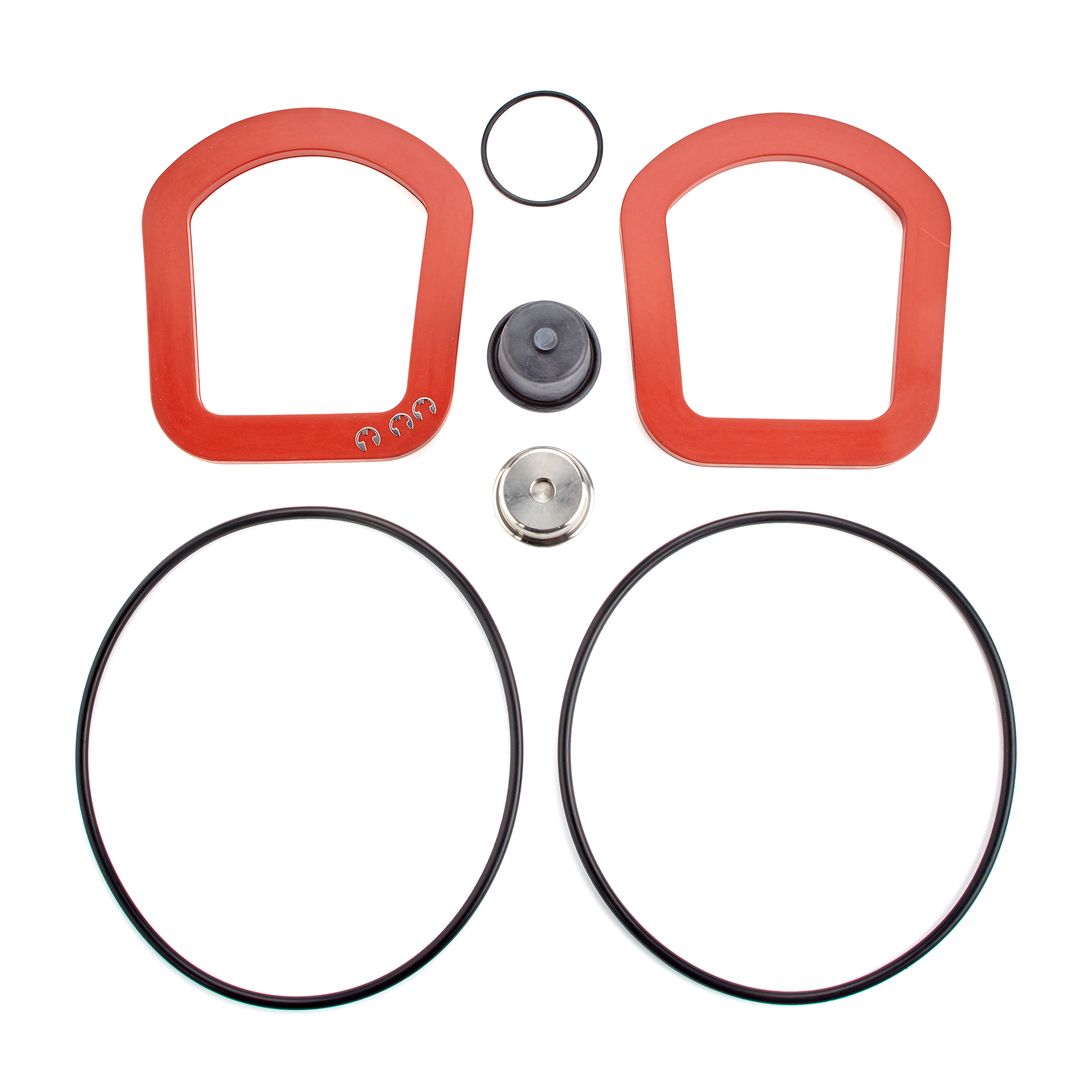

RK 957/957RPDA-RT 10
Complete Rubber Parts Kit |
</br>957, 957RPDA</br> |
First and Second Check Module O-rings, 2 Red Silicone Disc Elastomers, 2 E-Clips, Relief Valve Diaphragm, Relief Valve Inlet Coupler O-ring, Relief Valve Piston Assembly</br> |
