LF886WZ-LG-CFM-FS 6

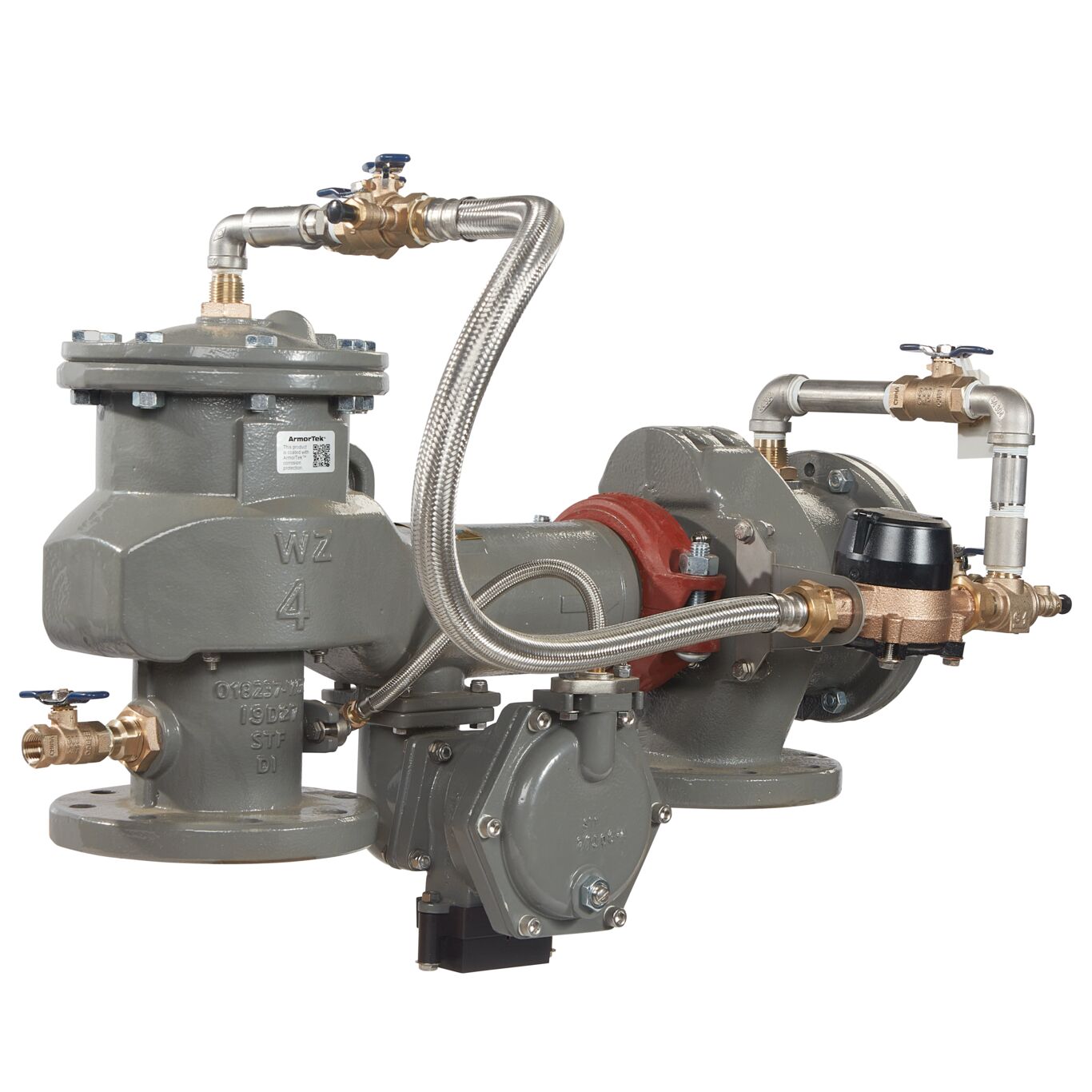

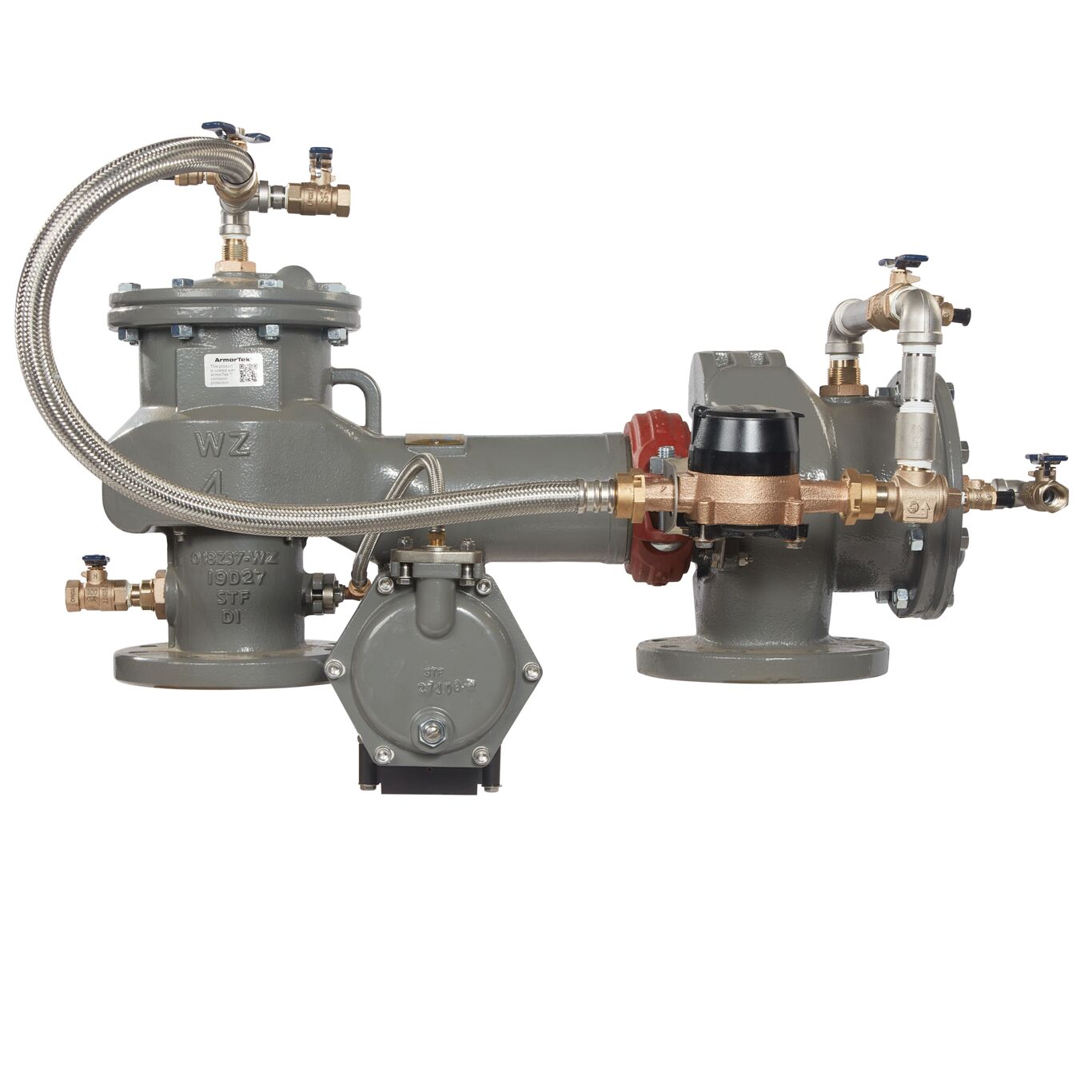

Lead Free MasterSeries N-Pattern Reduced Pressure Zone Detector Assembly Backflow Preventer, Less Shutoff Valve, Meter and Flood Sensor

Part of the LF886V Series

Ordering Code: F8007418

UPC: 643925579369

Lead Free: YES

6 IN Ductile Iron RPDA Backflow Preventer Assy, Competitor Z-Pat Lay Length, Less Shutoff, Clapper Ck Modules, CFM, SS RV Seat, N Pat, Backflow Flood Sensor

This 6 inch lead free MasterSeries(R) reduced pressure detector backflow preventer assembly help protect against high hazard (toxic) fluids in water services to industrial installations and applications. This valve features a longer lay-length for drop-in replacement of competitor?s Z-pattern valves. This assembly without shutoff valves consists of a ductile iron body, replaceable stainless steel check seats, cubic feet per minute metered bypass, and ball valve test cocks. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
Alert features available with add-on sensor connection kit
Competitor Drop-in Replacement Lay Length
Ductile iron body epoxy coated using ArmorTek corrosion resistant technology
Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
Type II Bypass

Specifications
ArmorTek Technology	No
Backflow Preventer Type	Reduced Pressure Zone Detector Assembly
Body Finish	Epoxy Coated Using ArmorTek Technology
Body Material	Ductile Iron
Body Pattern	Z-Pattern
Brand	FEBCO
Bypass	Yes
Bypass Size	3/4 IN
Cap And Tether	No
Disc Material	Silicone
EAN	643925579369
Elbow Fitting	No
Hazard Protection Level	Health Hazard
Hot And Harsh Water	No
Hydrant Connection	No
Inlet Connection Size	6 IN
Inlet Connection Size-Metric	150 MM
Inlet Connection Type	Flanged Joint
Inlet Shutoff Valve Type	No Shutoff Valve
Inlet Thread Type	Does Not Apply To Product
Lead Free	YES
Maximum Temperature-Fahrenheit	140
Maximum Working Pressure-BAR	12.10
Maximum Working Pressure-PSI	175
Meter Type	CFM
Minimum Temperature - Celsius	0.50
Minimum Temperature-Fahrenheit	33
Outlet Connection Size	6 IN
Outlet Connection Type	Flanged Joint
Outlet Shutoff Valve Type	No Shutoff Valve
Outlet Thread Type	Does Not Apply To Product
Part Number	F8007418
Polymer Coating	No
Pressure Operation	Continuous
Protection Type	Backpressure and Backsiphonage
Seat Material	Stainless Steel
Series	LF886V
Strainer	No
Technologies	Flood Detection
Tradename	MasterSeries(R)
