LF860U-QT-FS 2

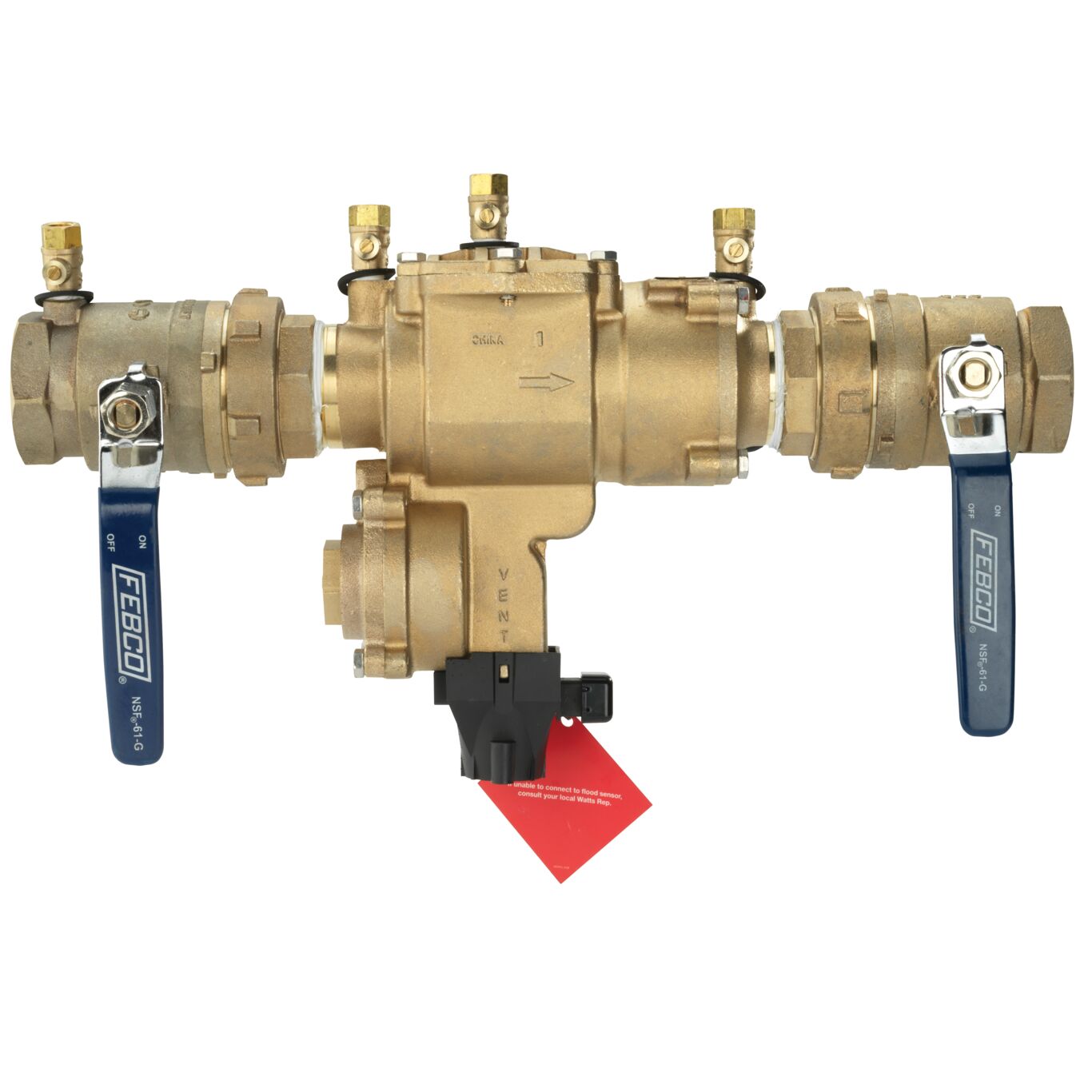

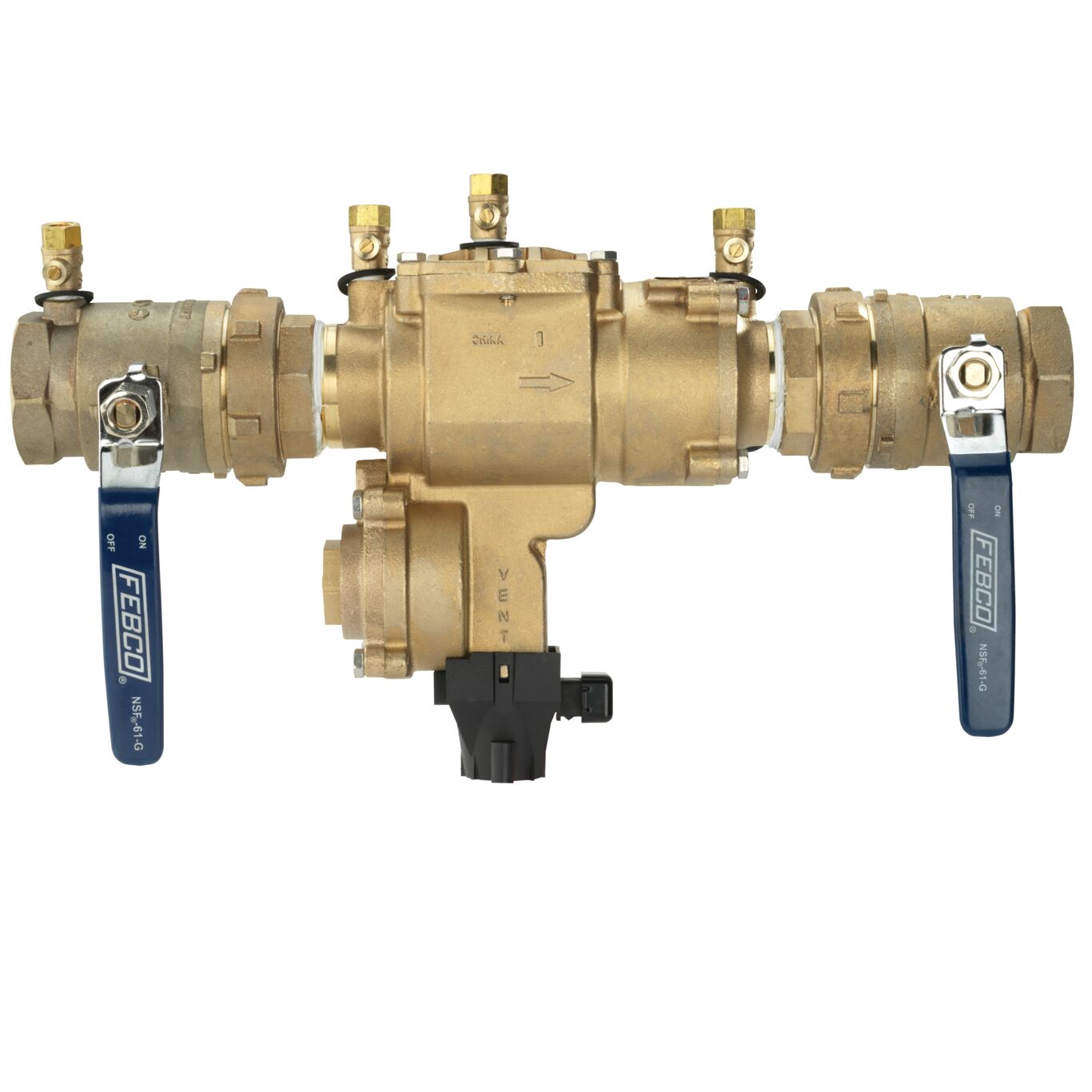

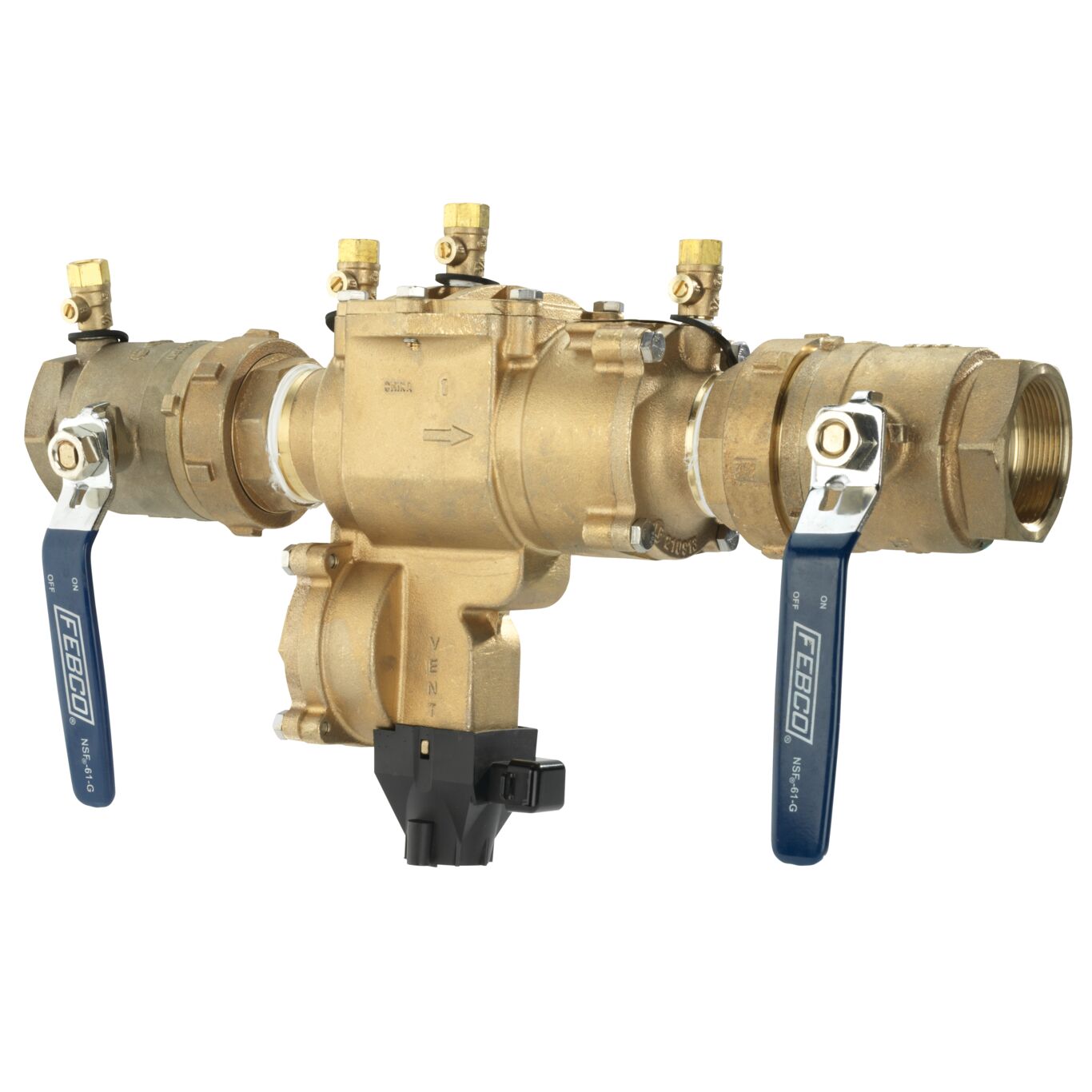

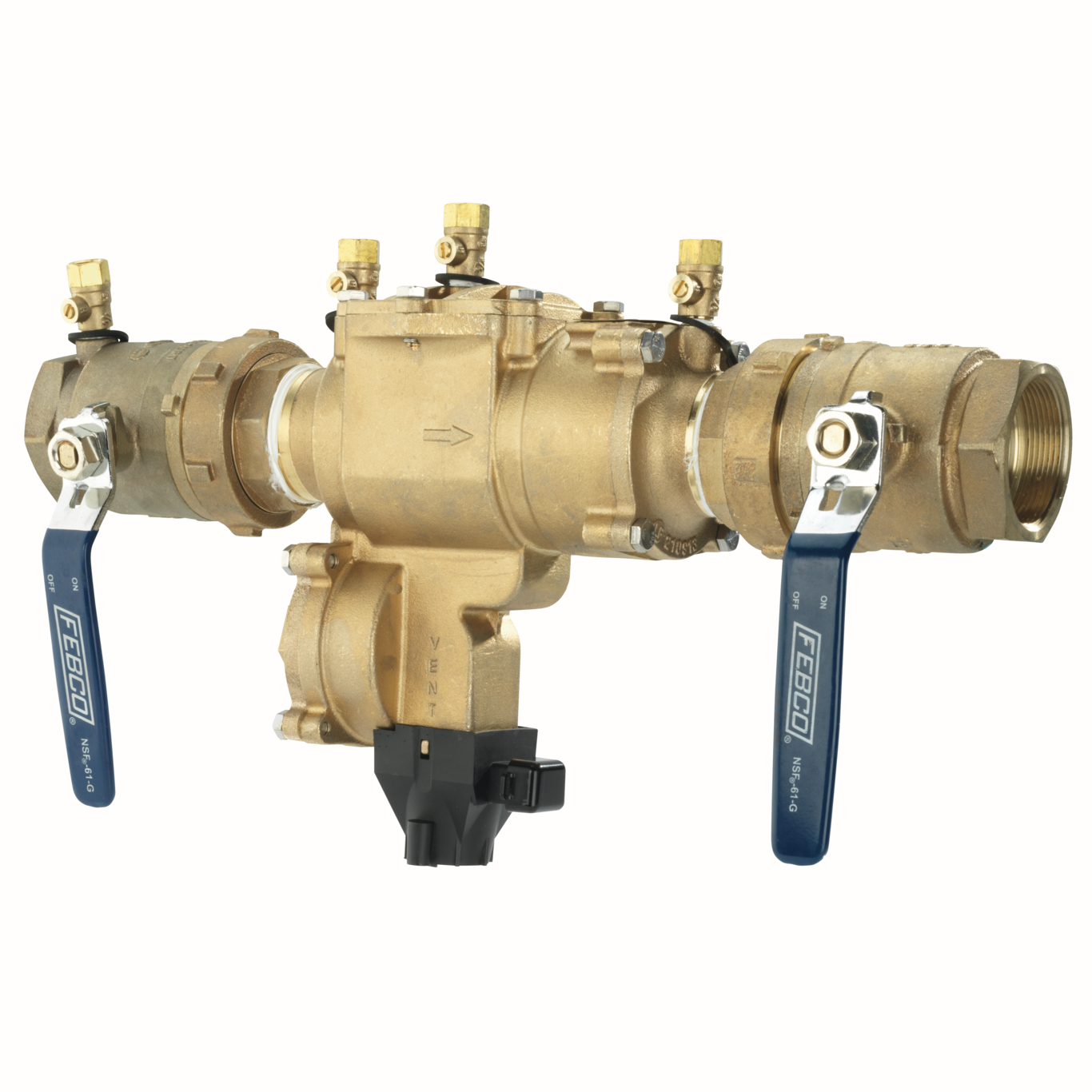

Product Image - 860 Flood Sesnsor
Product Image - 860 Flood Sesnsor
Product Image - 860 Flood Sesnsor
×

Part of the LF860 Small Series

Ordering Code: F122974

UPC: 643925581843

Lead Free: YES

2 IN Lead Free Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Union Ball Valves, Small Diameter, Backflow Flood Sensor

This 2 inch lead free reduced pressure zone backflow preventer assembly prevents the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and it is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free bronze body, threaded quarter turn ball valves with union connections, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Lead free construction
  • Union end connection
  • Quarter turn shutoff valves
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Copper Silicon Alloy
Body Material Lead Free Bronze
Body Pattern Does Not Apply To Product
Brand FEBCO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether Yes
Disc Material Silicone
EAN 643925581843
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 2 IN
Inlet Connection Size-Metric 51 MM
Inlet Connection Type Union Joint
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 2 IN
Outlet Connection Type Union Joint
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number F122974
Polymer Coating No
Pressure Operation Does Not Apply To Product
Protection Type Does Not Apply To Product
Seat Material Nitrile
Series LF860 Small
Strainer No
Technologies Flood Detection

Literature

Find a Sales Representative
Find a Wholesaler/Distributor
View Warranty Customer Support Access BIM Drawings

Share this Product



SpecHUB

Build Your Spec in Under 5 Minutes

Learn More

Product Accessories

FRK 880V

Relief Valve Rubber Parts Kit For 2 1/2 To 10 In Reduced Pressure Zone Assembly, Series 860 And 880V

FRK 850/850U/860/860U/880-RC3 1 1/4-2

Check Module Rubber Kit For 1 1/4 To 2 In Double Check Valve Assembly Or Reduced Pressure Zone Assembly

FRK 850/850U/860/860U/880-CK2 1 1/4-2

Single Check Kit For 1 1/4 To 2 In Double Check Valve Assembly Or Reduced Pressure Zone Assembly

LFFRK 850/860-C 1 1/4-2

First Or Second Check Cover Repair Kit For 1 1/4 Through 2 In Lead Free In-Line Rp And Dc Valve Assembly

FRK 860/860U/880-RV 1 1/4-2

Relief Valve Rubber Parts Kit For 1 1/4 To 2 In Reduced Pressure Zone Assembly, Series 860 And 880

FP-FBF-BMS 1/2-2

BMS Flood Sensor Connection Kit for 860 Small, LF860 Small Sizes 1/2 to 2 IN, and 825Y, LF825Y Sizes 3/4 to 2 IN

FP-FBF-CFS 1/2-2

Cellular Flood Sensor Connection Kit for 860 Small, LF860 Small Sizes 1/2 to 2 IN, and 825Y, LF825Y Sizes 3/4 to 2 IN

FRK 860/880V-VT 2 1/2-10 INT ASSY

Internal Module Relief Valve Kit For 2 1/2 To 10 In Reduced Pressure Zone Assembly, Series 860 And 880V

FRK 860-VT

Relief Valve Kit for 2 1/2 to 10 IN Reduced Pressure Zone Assembly, Series 860

FRK 860/880V-VT 2 1/2-10 TOTAL

Relief Valve Module Kit, 2 1/2 To 10 In Pressure Zone Assembly, Series 860 And 880V

FP-FBF-SA-860-1-2

Flood Sensor Replacement Kit for 860 Small, LF860 Small Sizes 1 IN to 2 IN

FRK 860/860U/880-RT 1 1/4-2

Total Rubber Parts Kit For 1 1/4 To 2 In Reduced Pressure Zone Assembly Or Reduce Pressure Detector Assembly, Series 860 And 880

FRK 850/850U/860/860U/880-P 1 1/4-2

Poppet Assembly Kit For 1/4 To 2 In Atmospheric Vacuum Breaker

FRK 860/860U/880-CK1 1 1/4-2

First Check Kit For 1 1/4 To 2 In Reduced Pressure Zone Assembly, Series 860 And 880

LFFRK860-VT 1 1/4-2

Total Relief Valve Kit for 1 1/4 to 2 In Reduced Pressure Zone Assembly, Series 860
