LFU860-QT 1 1/2

860U 1 UBV-2813_angle
860U 1 UBV-2813
×

Part of the LF860 Small Series

Ordering Code: 0122973

UPC: 098268650020

Lead Free: YES

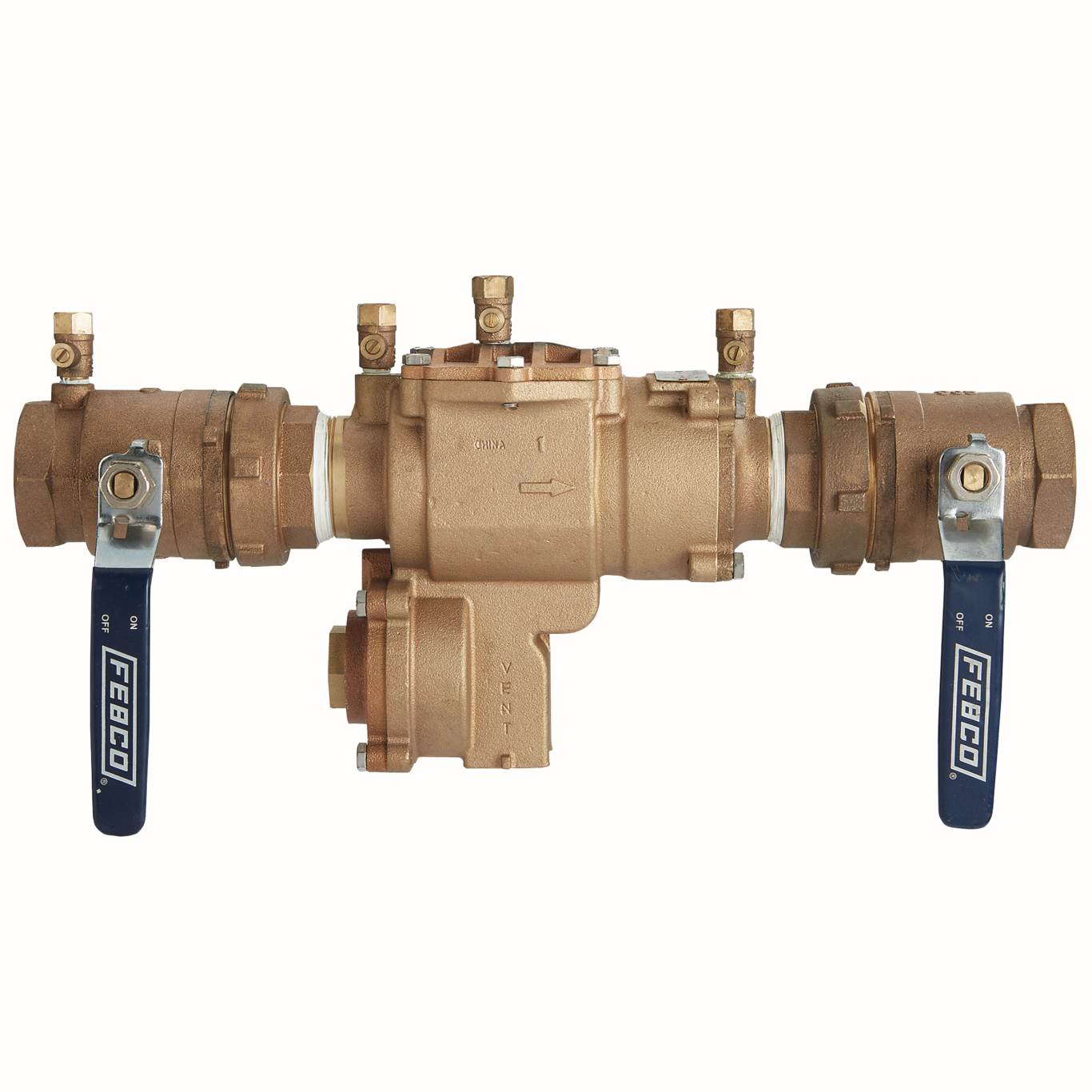

1 1/2 IN Lead Free Bronze Reduced Pressure Zone Backflow Preventer Assembly, Quarter Turn Shutoff, Union Ball Valves, Small Diameter

This 1 1/2 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and it is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free bronze body, threaded quarter turn ball valves with union connections, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve.

Features

  • Lead free bronze body
  • Union end connection
  • Quarter turn shutoff valves
  • Replaceable seats and discs
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Copper Silicon Alloy
Body Material Lead Free Bronze
Body Pattern Does Not Apply To Product
Brand FEBCO
Buy American Act Compliant NO
Disc Material Silicone
EAN 098268650020
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 1 1/2 IN
Inlet Connection Size-Metric 38 MM
Inlet Connection Type Union Joint
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 1 1/2 IN
Outlet Connection Type Union Joint
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0122973
Polymer Coating No
Pressure Operation Does Not Apply To Product
Protection Type Does Not Apply To Product
Series LF860 Small
Strainer No
Technologies Does Not Apply To Product
Tradename None
