909RPDA
Reduced Pressure Detector Assembly Backflow Preventers with Flood Sensor, Cast Iron, 2 1/2 - 10 IN Sizes
909RPDA
Reduced Pressure Detector Assembly Backflow Preventers with Flood Sensor, Cast Iron, 2 1/2 - 10 IN Sizes
Features
- Sensor on the relief valve for flood detection
- Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
- Cast iron body construction with patented 3-part ArmorTek® epoxy coating for advanced corrosion resistance
- Provide detection point for costly water leaks and illegal taps
- Unique two-channel relief valve provides maximum capacity during emergency conditions and stops potential backflow using air-in/water-out principle
- Modular design facilitates easy maintenance and assembly
- Replaceable stainless steel seats
Nexa pairs integrated sensing hardware with free, upgradable software to empower facilities with unprecedented visibility and control over their water systems, helping teams protect assets, deliver consistent performance, and drive measurable ROI.
Learn more about Nexa

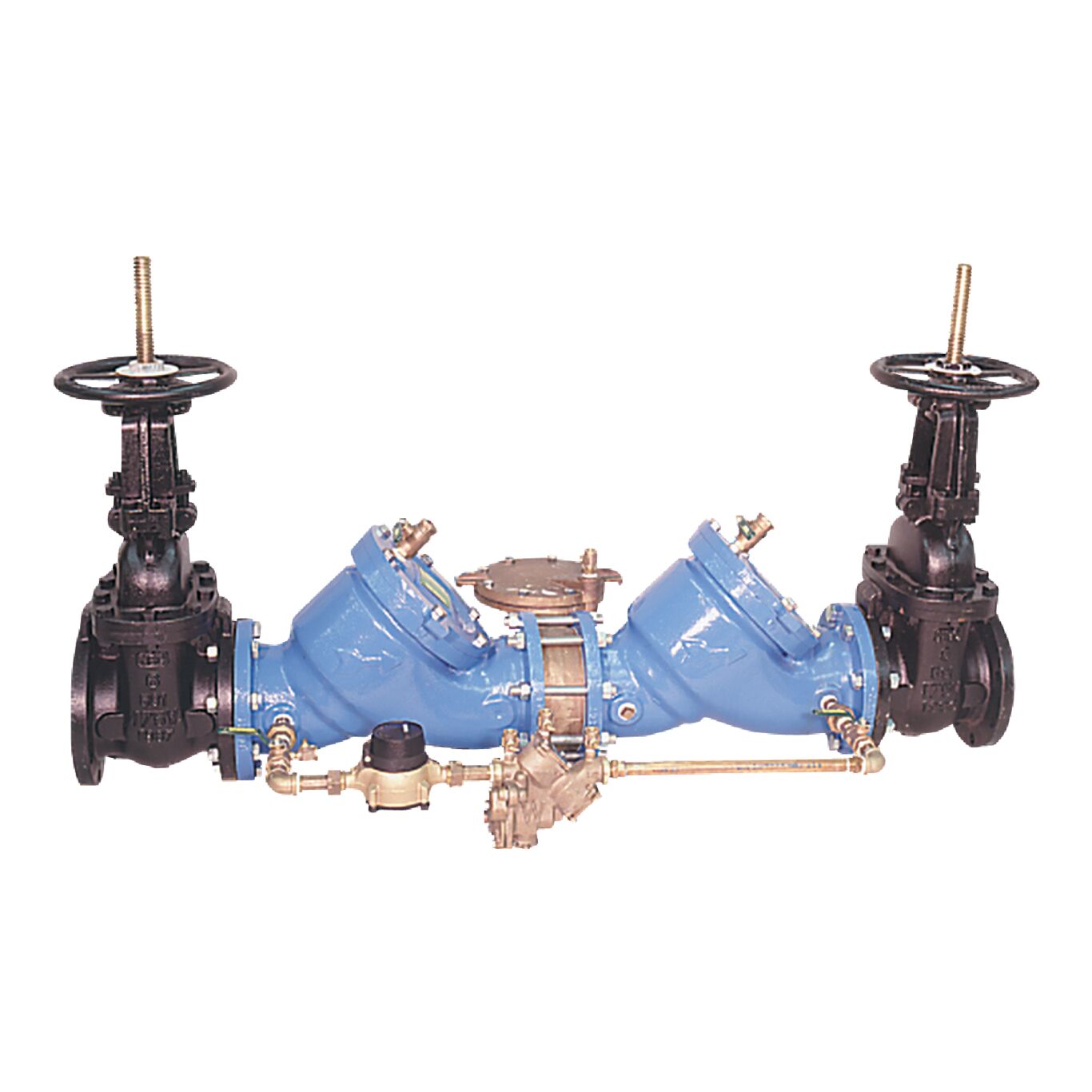

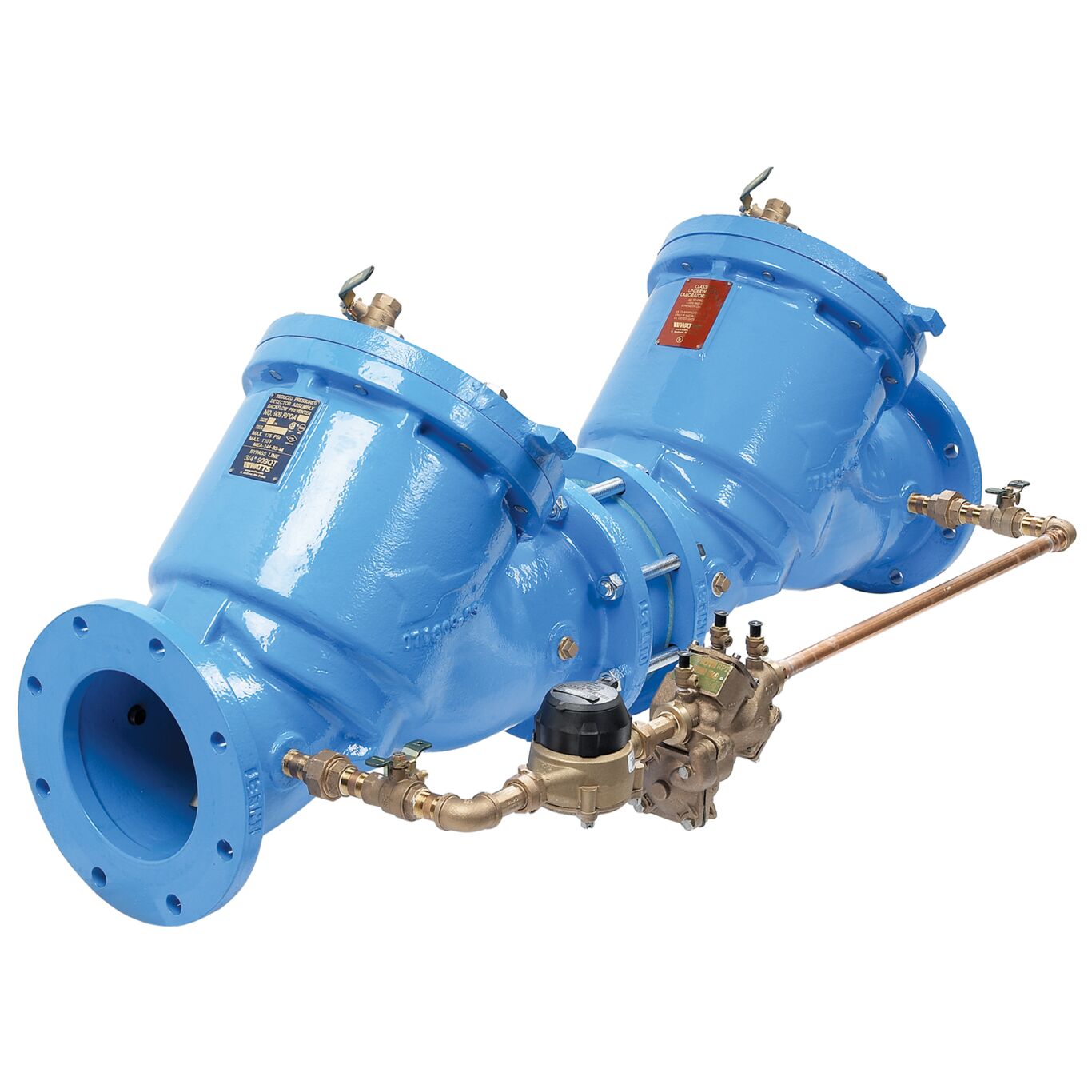

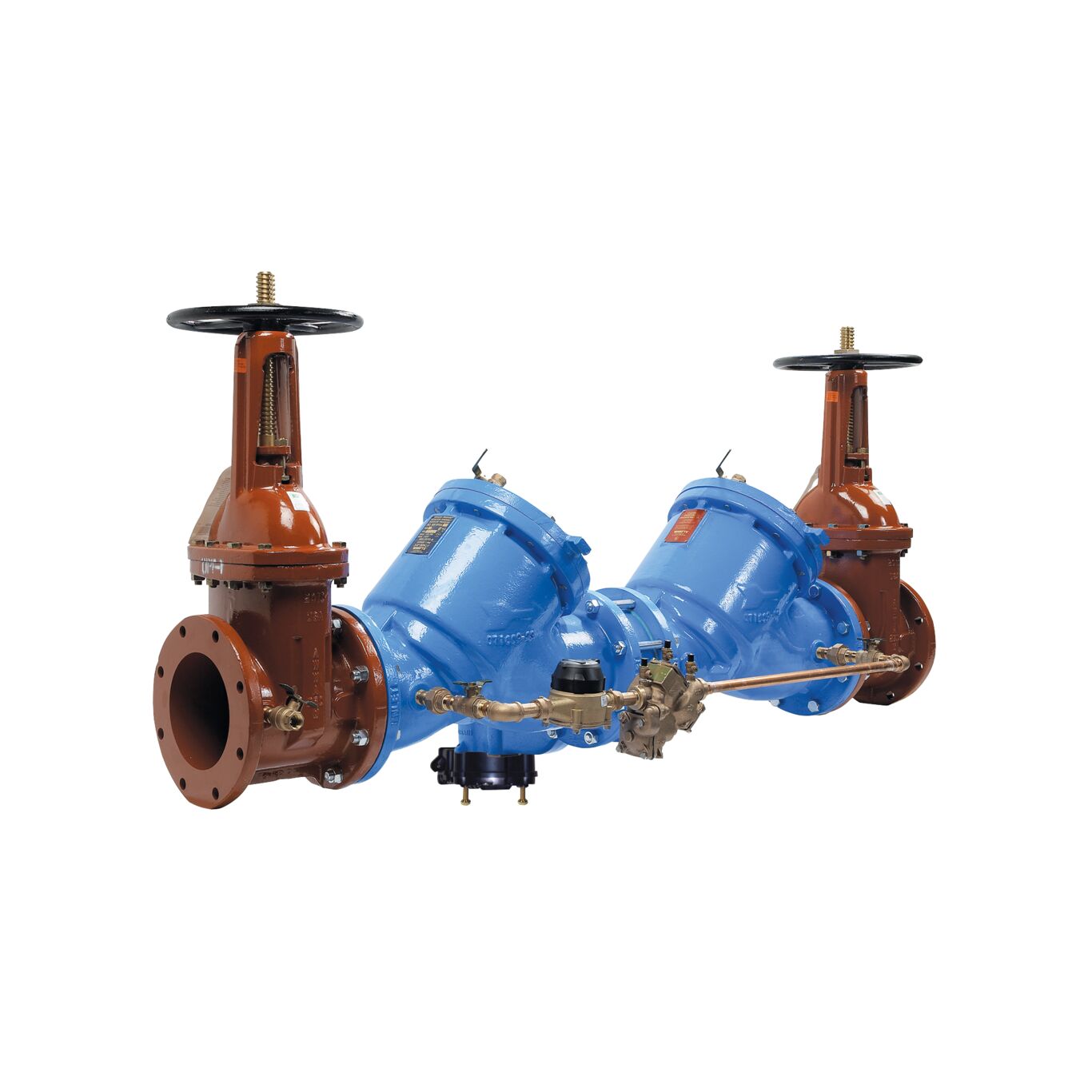

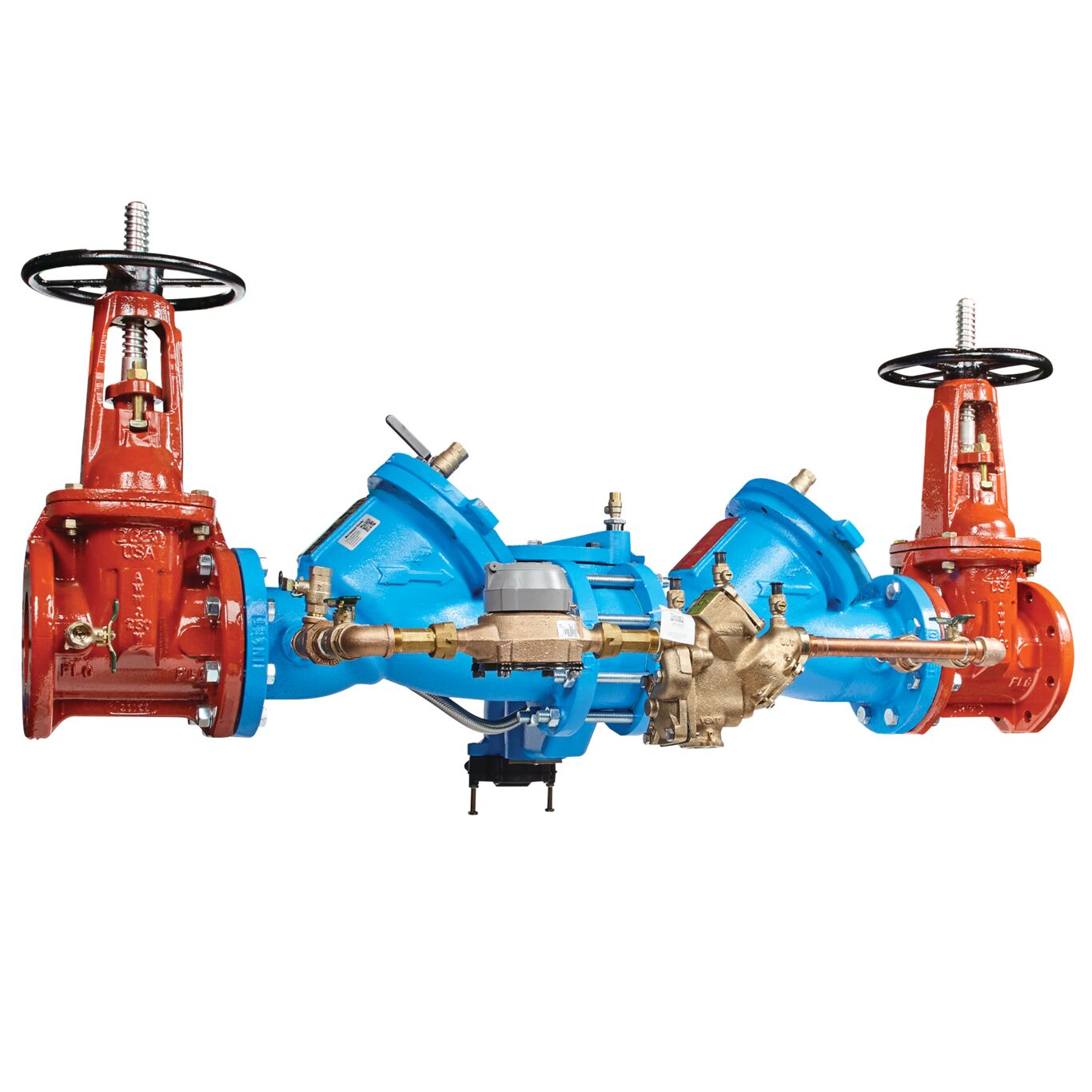

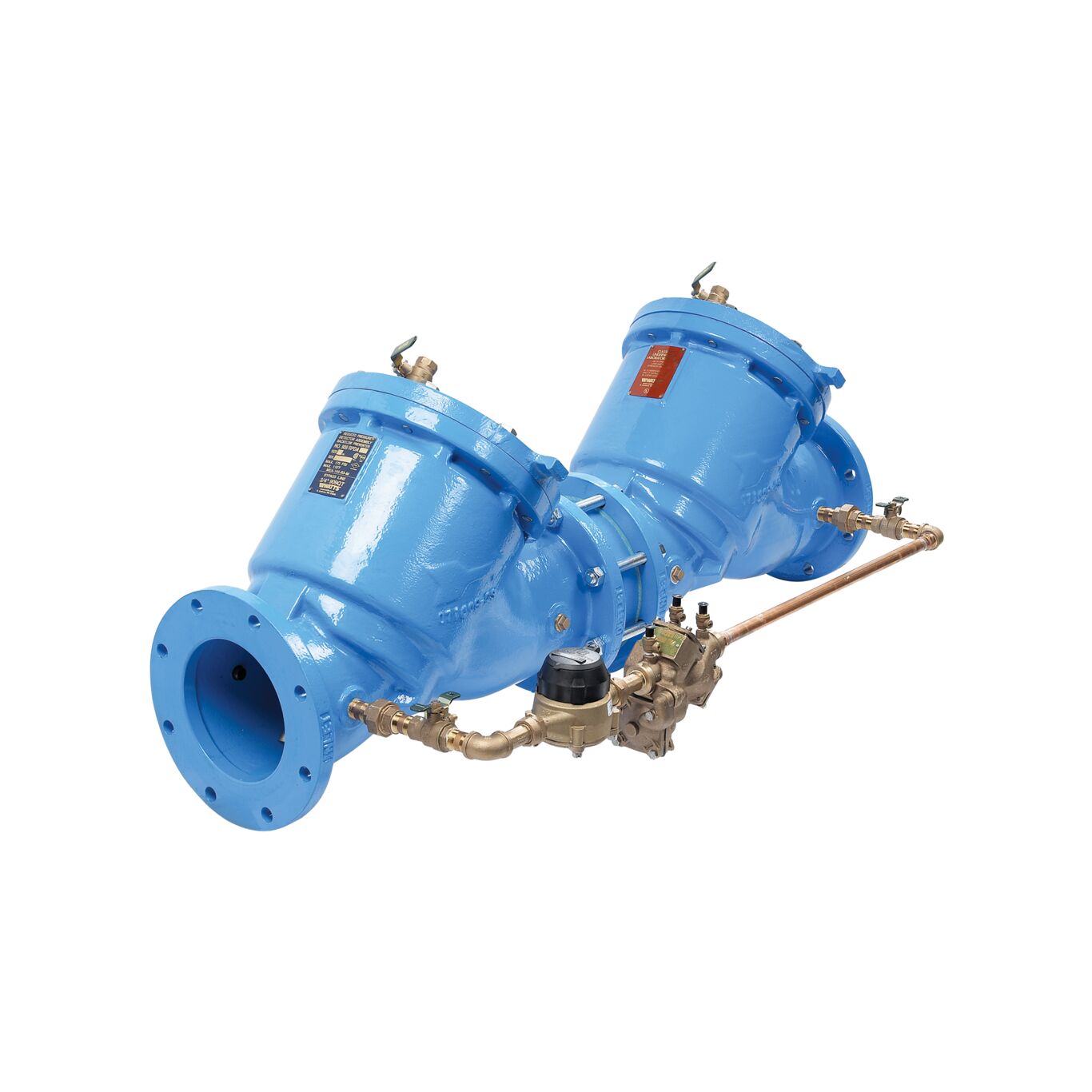

Series 909RPDA Reduced Pressure Detector assembly backflow preventers feature a flood sensor using SentryPlus Alert® technology to detect continuous discharge from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
This series prevents the reverse flow of contaminated water caused by backsiphonage or backpressure from entering the potable water supply. The 909RPDA incorporates a meter to detect ground leaks and unauthorized illegal taps, greatly reducing annual water expenses. It consists of a coated cast iron body with stainless steel trim, cast iron gate valves, a pressure-differential relief valve, shutoff valves, and bronze ball-type test cocks. Maximum working pressure is 175 psi (12.06 bar).
To learn more visit: https://www.watts.com/floodprotectionsystem
The coating on this backflow assembly uses ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
To learn more visit: https://www.watts.com/armortek
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Video - ArmorTek Advanced Coating System Overview
Armortek’s patented triple-layer coating protects valves from corrosion and microbiologically induced damage, extending their lifespan and enabling repair and recycling for sustainable water management.
Runtime : 00:01:13Watch Now
Video - Connected Backflow Flood Detection
Learn how Watts flood sensors integrated with backflow prevention assemblies provide real-time alerts for excessive relief valve discharge, helping prevent water damage and facility downtime.
Runtime : 00:01:10Watch Now
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 909RPDA
No results found
| Model | Used On - Series or Model | Kit Contents |
|---|---|---|
|
FP-BF-BMS 2 1/2-10
Activation Kit |
</br>009, LF009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS, Deringer 40/40G, Deringer 40X/40GX, Deringer 50/50G, Deringer 50X/50GX</br> |
Sensor Activation Module with Cable, Ground Wire, Power Adapter</br> |
|
FP-BF-CFS 2 1/2-10
Activation Kit |
</br>009, LF009, 909, LF909, 909RPDA, LF919, 957, 957RPDA, LF957RPDA, 994, 994RPDA, C400, C500, LFC500, 4000SS, 5000SS</br> |
Sensor Activation Module with Cable, Cellular Gateway with Mounting Kit, Ground Wire, Power Adapter</br> |
|
FP-BF-SA-909 4-10 M2
Upgrade/Repair Kit |
909, 909RPDA</br></br> |

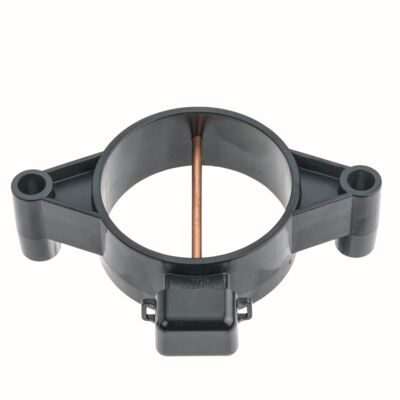

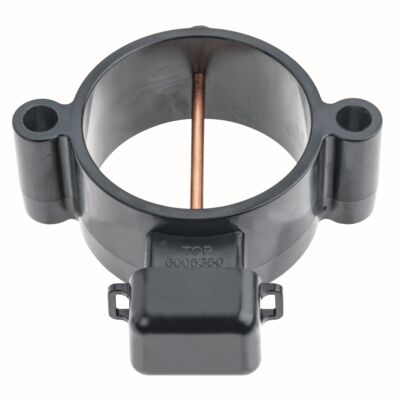

Flood Sensor and Mounting Bolts</br> |
|
SCM-BF-CONN KIT
Activation Kit |
</br>Watts 009/LF009, LF909, LF919, 909RPDA, 957, 957RPDA, 994, 994RPDA; Ames C400, C500, 5000SS, 4000SS, FEBCO LF860, 825Y, LF825Y, LF866, LF880V, LF886V</br> |
Sensor Control Monitor, Power Adapter, Mounting Feet, and Quick Start Guide</br> |
|

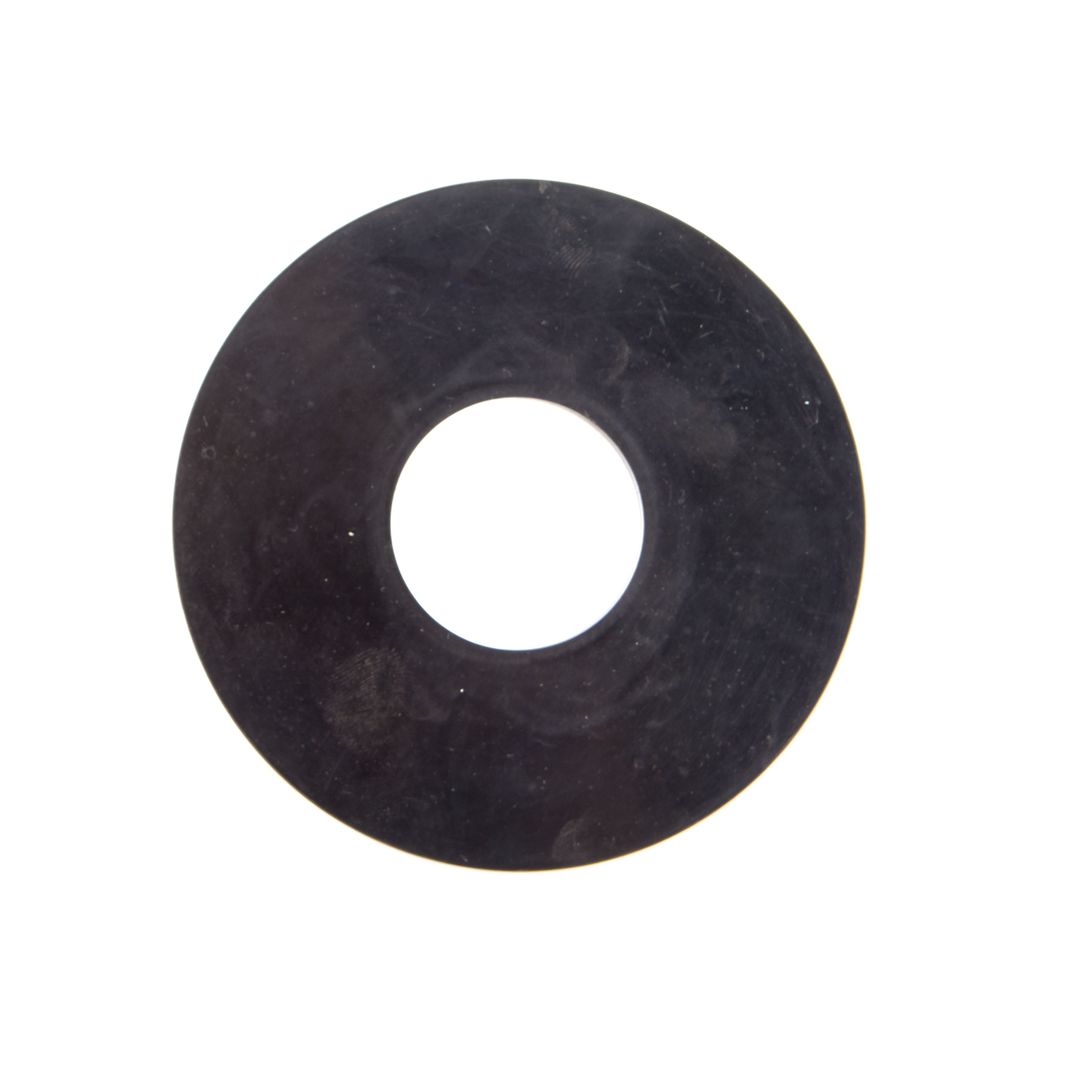

RK 909RPDA-RC1 4
First Check Rubber Parts Kit |
</br>909RPDA</br> |

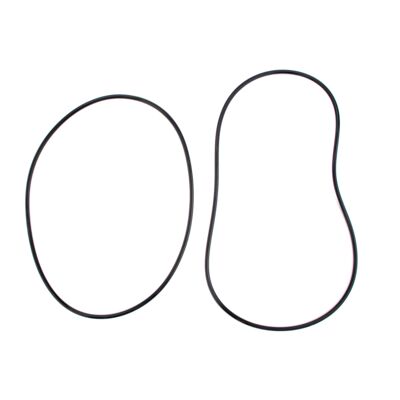

Check Disc, Cover O-ring, Lubricant</br> |
|

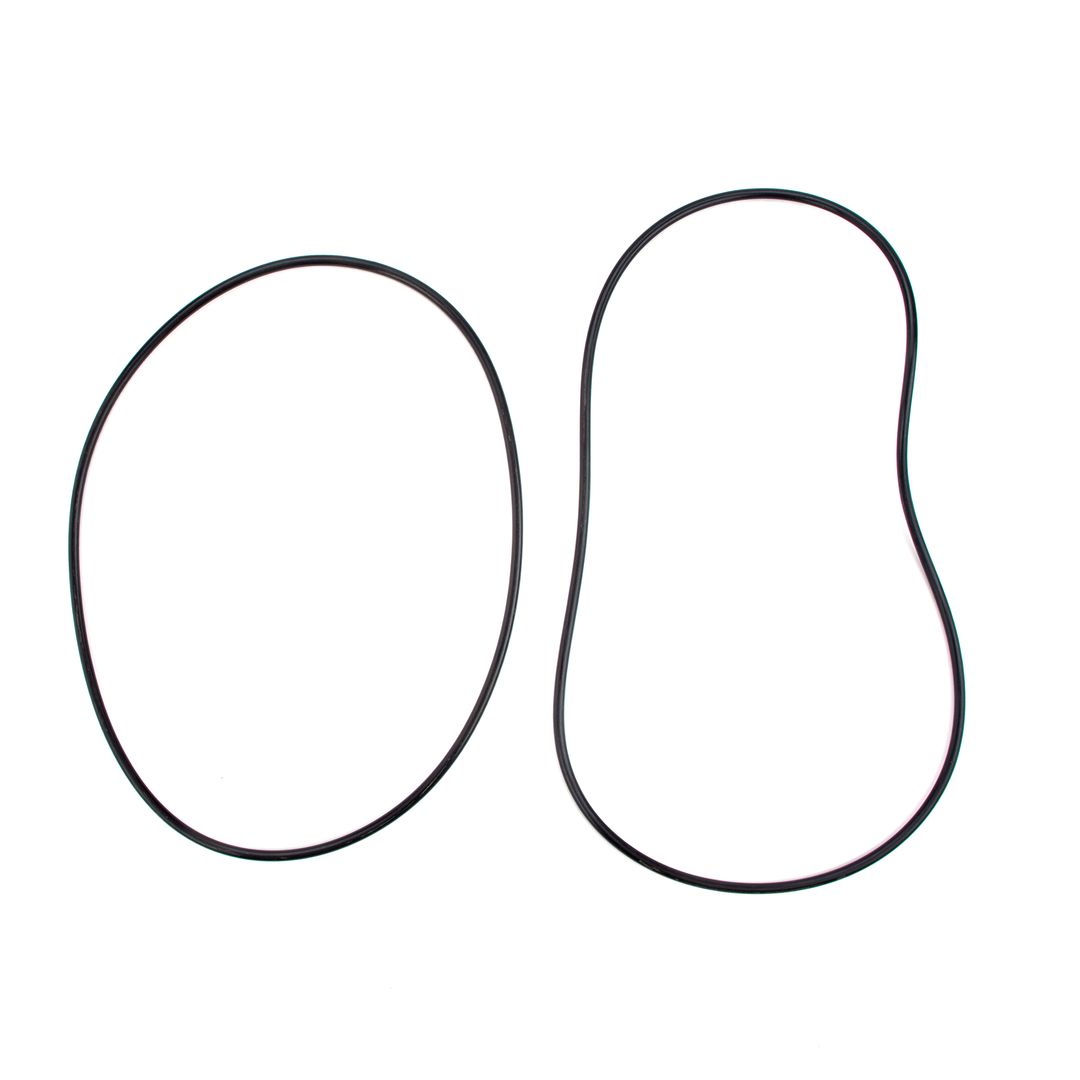

RK 909RPDA-RC1 6
First Check Rubber Parts Kit |
</br>909RPDA</br> |
Upper and Lower Check Stem O-ring, Check Disc, Cover O-ring, Lubricant</br> |
|

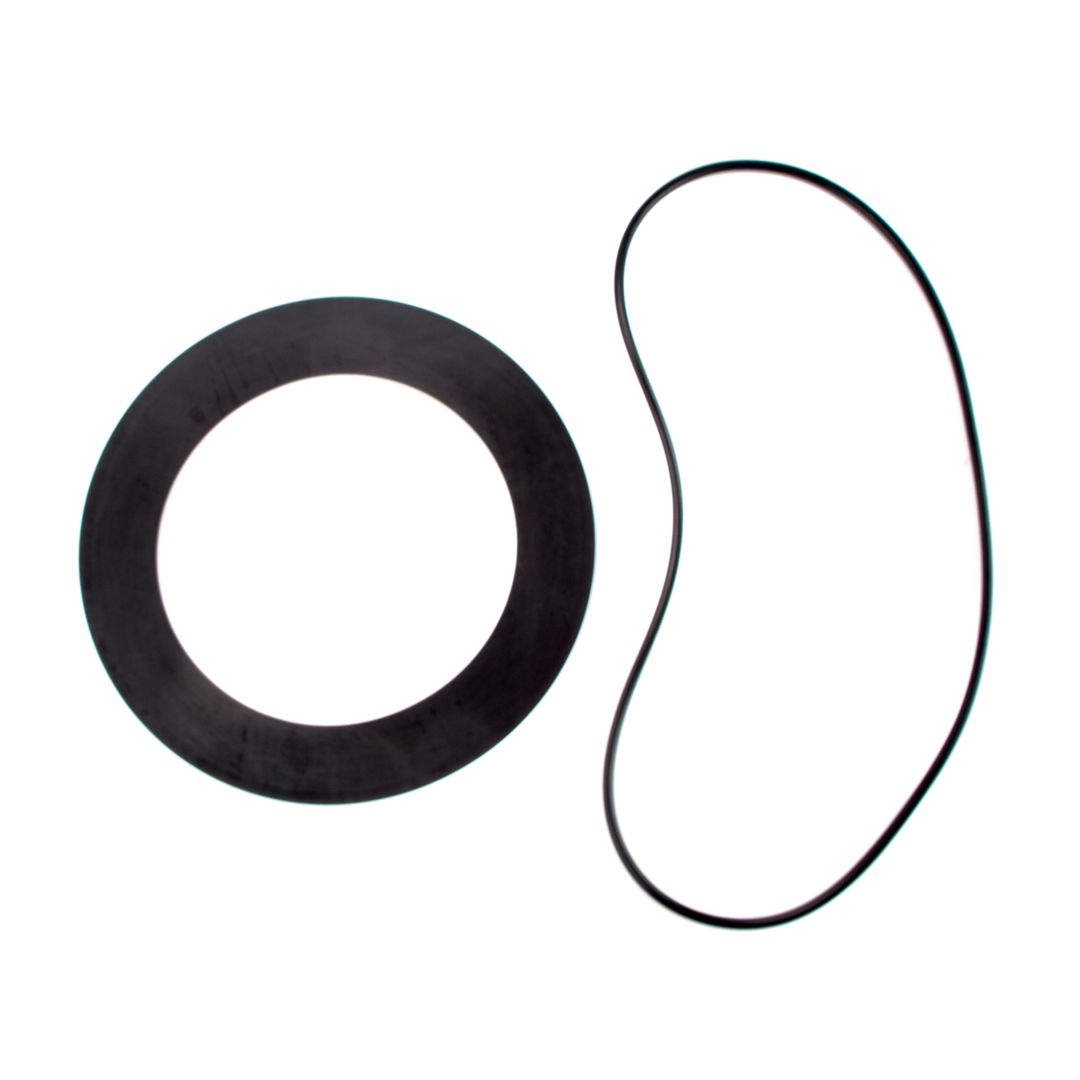

RK 909RPDA-RC1 8
First Check Rubber Parts Kit |
</br>909RPDA</br> |
Check Disc, Cover O-ring, Lubricant</br> |
|
FP-BF-SA-009/909 2-3 M2
Upgrade/Repair Kit |
009, 909, 909RPDA</br></br> |
Flood Sensor and 2 Sets of Mounting Bolts</br> |
|

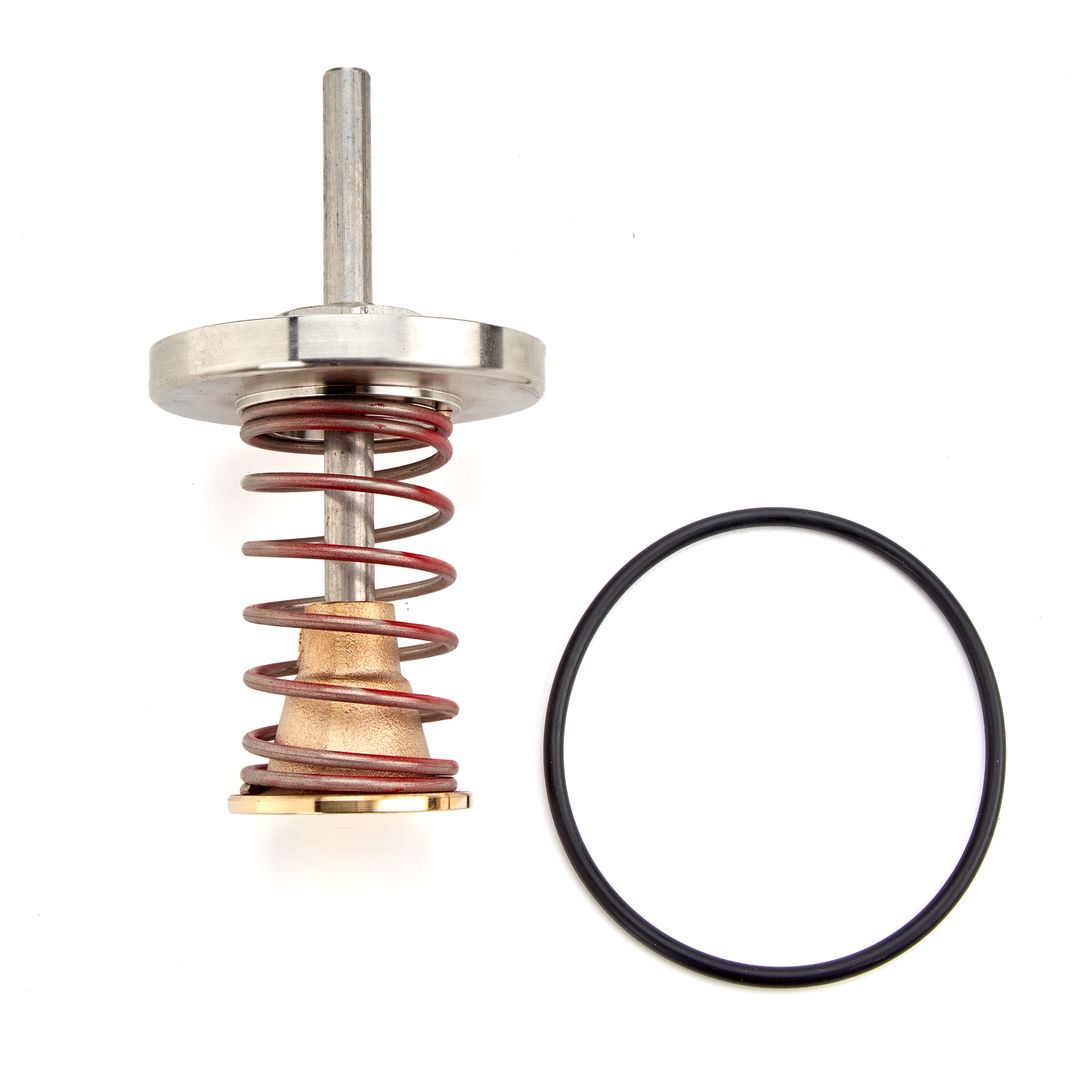

LFRK 909RPDA-CK2 21/2 - 3
Second Check Kit |
</br>909RPDA</br> |
Disc and Spring Assembly, Cover O-ring, Lubricant</br> |
