LF825Y-QT HD 3/4

825Y-QT 3-4 BV_825DBV
LF825Y-QT_75_0683006
825Y-QT 3-4 BV_825DBV_angle
×

Part of the LF825Y Series

Ordering Code: 0950013

UPC: 098268083781

Lead Free: YES

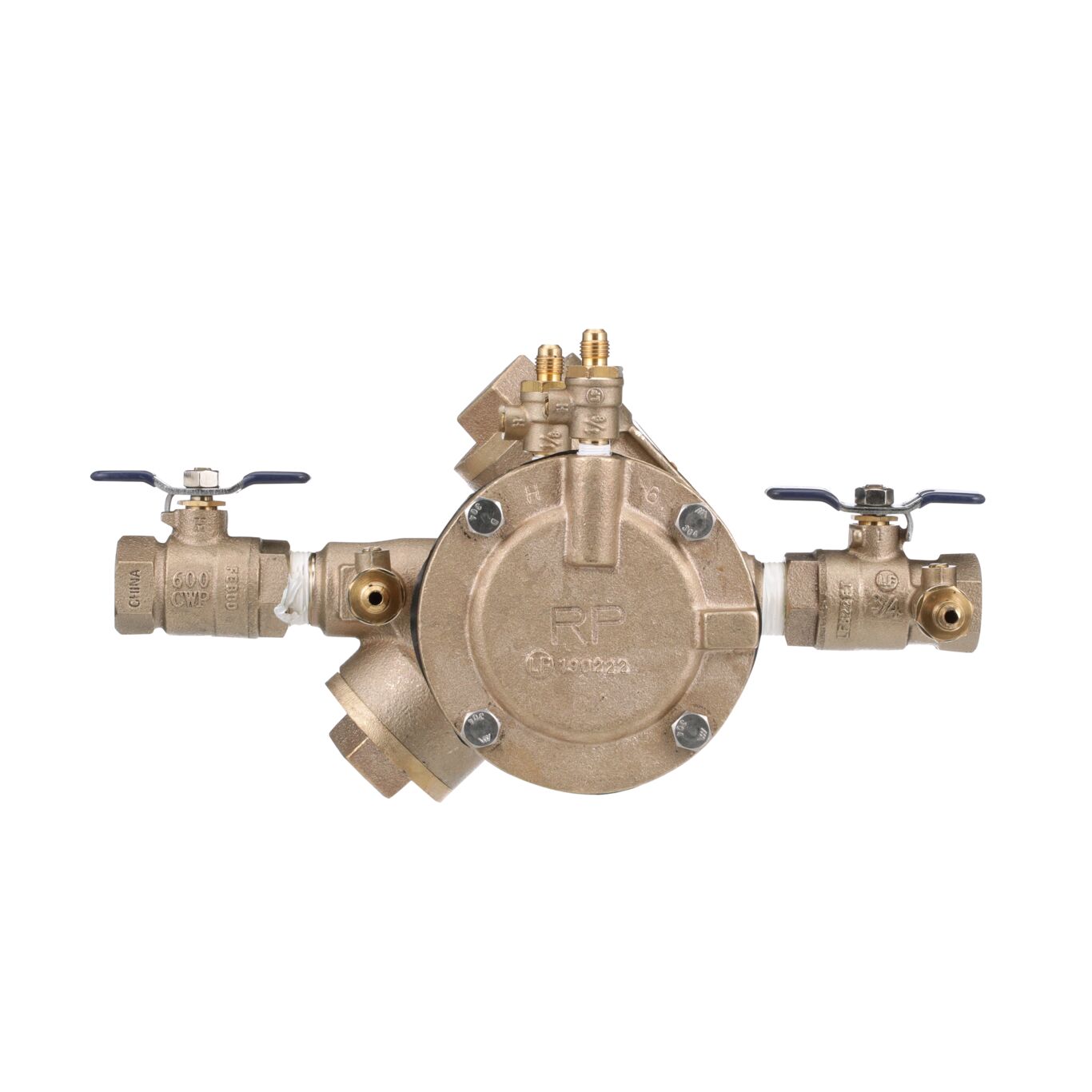

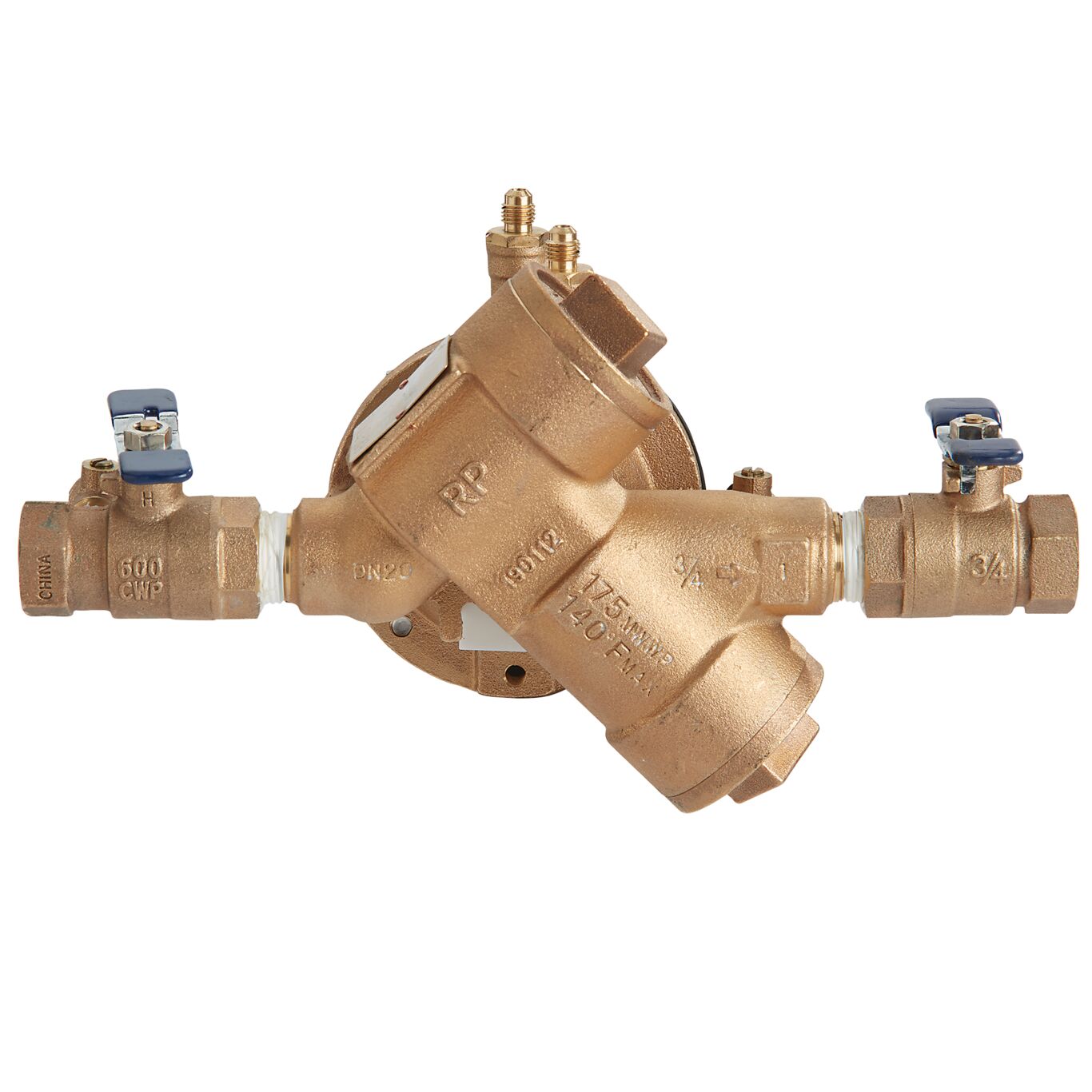

3/4 IN Lead Free Bronze Reduced Pressure Zone Backflow Preventer Assembly with Quarter Turn Shutoff, Y Pattern

This 3/4 inch lead free Y pattern reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free body, threaded quarter turn ball valves, test cocks, spring loaded Y pattern check valves, and one hydraulically dependent differential relief valve.

Features

  • Lead Free Construction
  • Modular relief valve for easy maintenance
  • Replaceable seat rings for longer valve life
  • NPT end connection
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Material Lead Free Bronze
Brand FEBCO
Buy American Act Compliant NO
EAN 098268083781
Hazard Protection Level Health Hazard
Inlet Connection Size 3/4 IN
Inlet Connection Type Swivel Joint
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Lead Free YES
Part Number 0950013
Series LF825Y
Technologies Does Not Apply To Product
Tradename None

Literature

Find a Sales Representative
Find a Wholesaler/Distributor
View Warranty Customer Support Access BIM Drawings

Share this Product



SpecHUB

Build Your Spec in Under 5 Minutes

Learn More

Product Accessories

LFFRK 825-C 3/4-1

First Or Second Check Cover Repair Kit For 3/4 and 1 IN Lead Free Y Pattern Reduced Pressure Zone Valve Assembly

FRK805825Y-RC3 3/4-1 1/4

Check Rubber Parts Kit For 3/4 to 1 1/4 IN Double Check Valve Assembly Or Reduced Pressure Zone Assembly

LFFRK825Y-VS 3/4-1 1/4

Relief Valve Seat Kit For 3/4 to 1 1/4 IN Reduced Pressure Zone Assembly, Series LF825Y

LFFRK 825-VC 3/4-1

Relief Valve Cover Repair Kit For 3/4 and 1 IN Lead Free Y Pattern Reduced Pressure Zone Valve Assembly

FRK 825Y-VS 3/4-1

Relief Valve Seat and Ring Kit For 3/4 to 1 IN Reduced Pressure Zone Assembly Or Reduced Pressure Detector Assembly

FRK 825Y-YS VT 3/4-1 1/4

Relief Valve Kit For 3/4 to 1 1/4 IN Reduced Pressure Zone Assembly

FP-RFK-FBF-BMS-CFS-825-3/4-2

BMS Flood Sensor Retrofit Connection Kit for 825Y, LF825Y, 825YA, LF825YA, Sizes 3/4 to 2 IN

FRK805825Y-CK4 3/1-1 1/4

Check Kit For 3/4 to 1 1/4 IN Double Check Valve Assembly Or Reduced Pressure Zone Assembly

825Y/805Y SS OUTLET SPRING 3/4 - 1 1/4

Check Spring Kit for 3/4 to 1 1/4 IN Double Check Valve Assembly, Series 825Y Or 805Y

FRK 825Y-RV 3/4-1 1/4

Relief Valve Rubber Parts Kit For 3/4 to 1 1/4 IN Reduced Pressure Zone Assembly

FRK 825Y-RT 3/4-1 1/4

Complete Rubber Parts Kit For 3/4 to 1 1/4 IN Reduced Pressure Zone Assembly

825Y SS INLET SPRING 3/4 - 1 1/4

3/4 to 1 1/4 IN Stainless Steel First Check Spring Kit

FP-RFK-FBF-CFS-3/4-2

Cellular Flood Sensor Retrofit Connection Kit for 825Y, LF825Y, 825YA, LF825YA, Sizes 3/4 to 2 IN
