LF860-QT 3/4 RP BLACK

LF860-QT 3-4 RP BLACK_0683050_angle
LF860-QT 3-4 RP BLACK_0683050
×

Discontinued

Part of the LF860 Small Series

Ordering Code: 0683050

UPC: 098268147292

Lead Free: YES

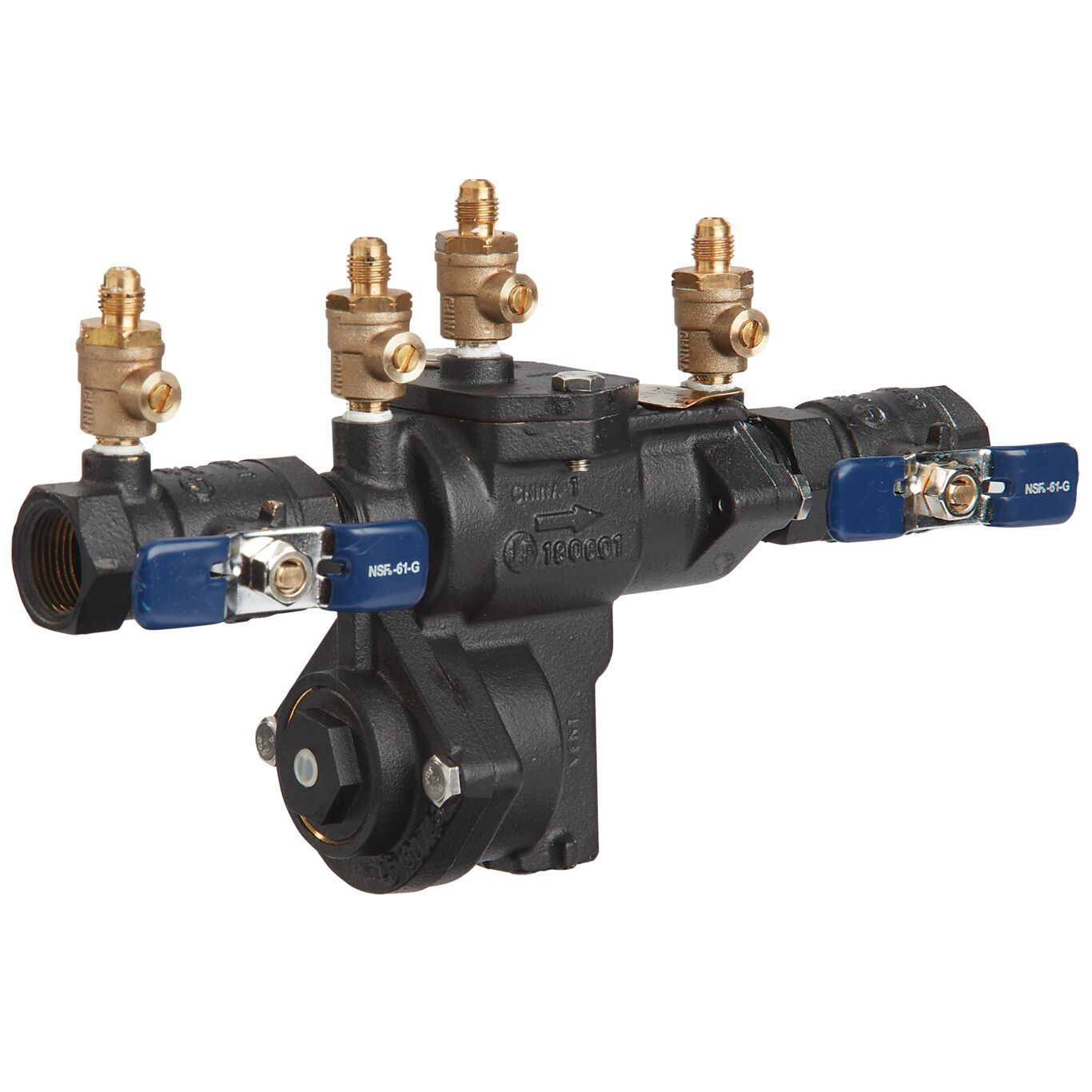

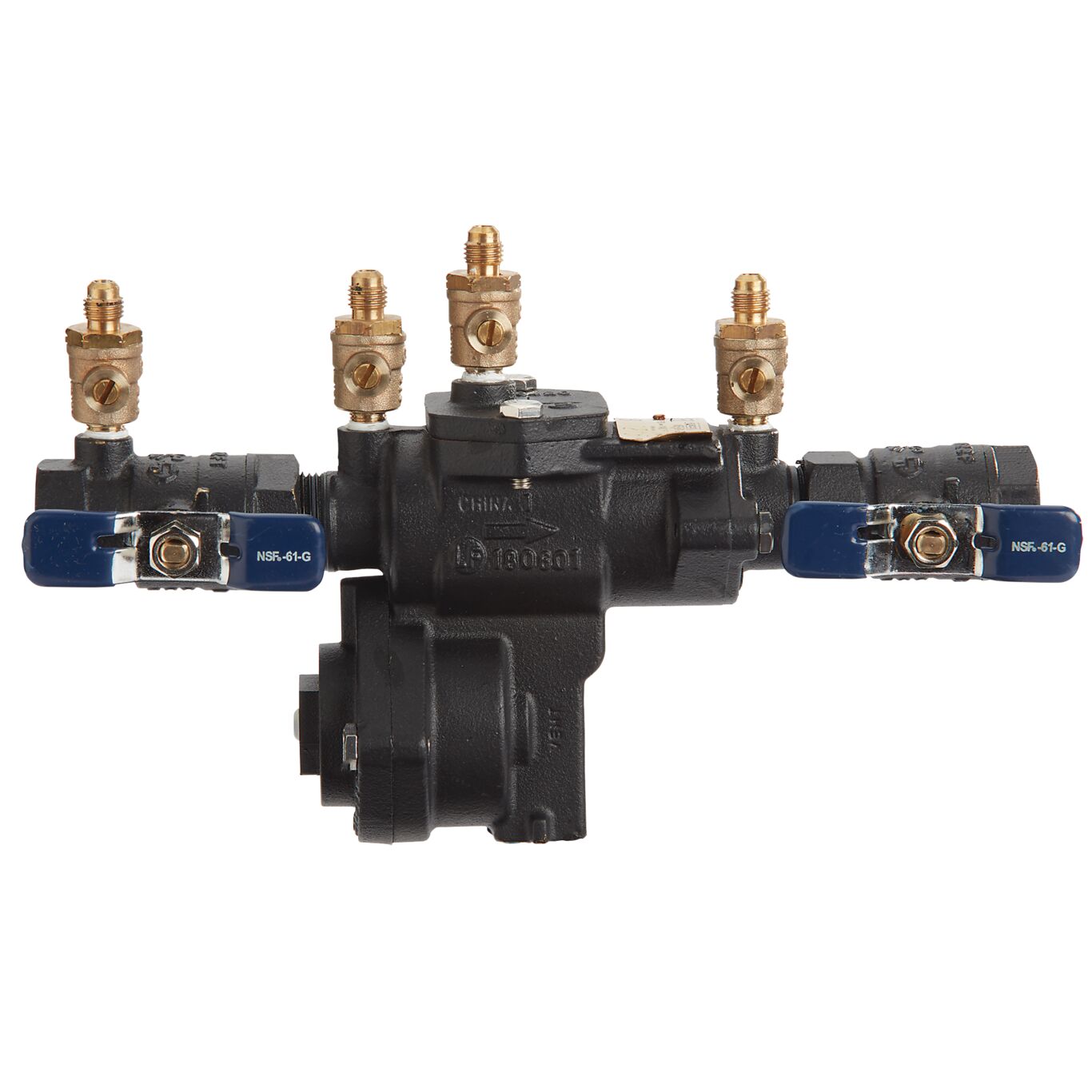

3/4 IN Lead Free Reduced Pressure Zone Backflow Preventer Assembly, Small Diameter, Quarter Turn Shutoff, Black Finish

This 3/4 inch lead free reduced pressure zone backflow preventer assembly is designed to prevent the reverse flow of high hazard (toxic) fluids found in the water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. It is used in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants and it is also used in irrigation systems, boiler feed, water lines and other installations requiring maximum protection. This assembly consists of a lead free bronze body, threaded quarter turn ball valves, top mounted test cocks, spring loaded check valves, and a pressure differential relief valve. It comes with a black finish for theft deterrence.

Features

  • Lead free bronze body with black finish
  • NPT end connection
  • Quarter turn shutoff valves
  • Replaceable seats and discs
Specifications
ArmorTek Technology No
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Cast Bronze
Body Material Lead Free Bronze
Body Pattern Inline
Brand FEBCO
Buy American Act Compliant NO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 098268147292
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/4 IN
Inlet Connection Size-Metric 20 MM
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPTF
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type Does Not Apply To Product
Minimum Temperature - Celsius 0.00
Minimum Temperature-Fahrenheit 32
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPTF
Part Number 0683050
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Plastic
Series LF860 Small
Strainer No
Technologies Does Not Apply To Product
Tradename None
