LF919-QT 3/4 Watts

Part of the LF919 Series

Ordering Code: 0065372

UPC: 098268238518

Lead Free: YES

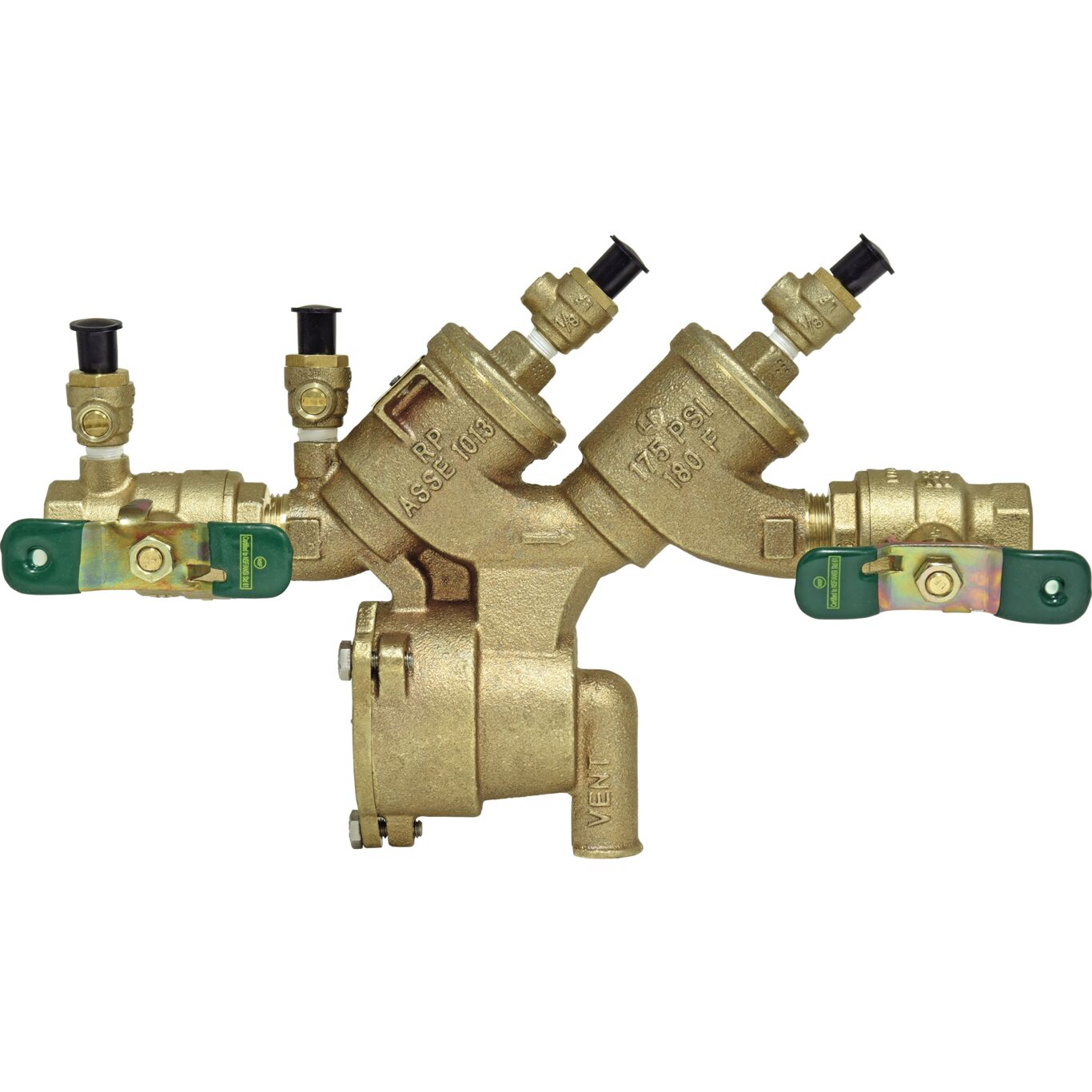

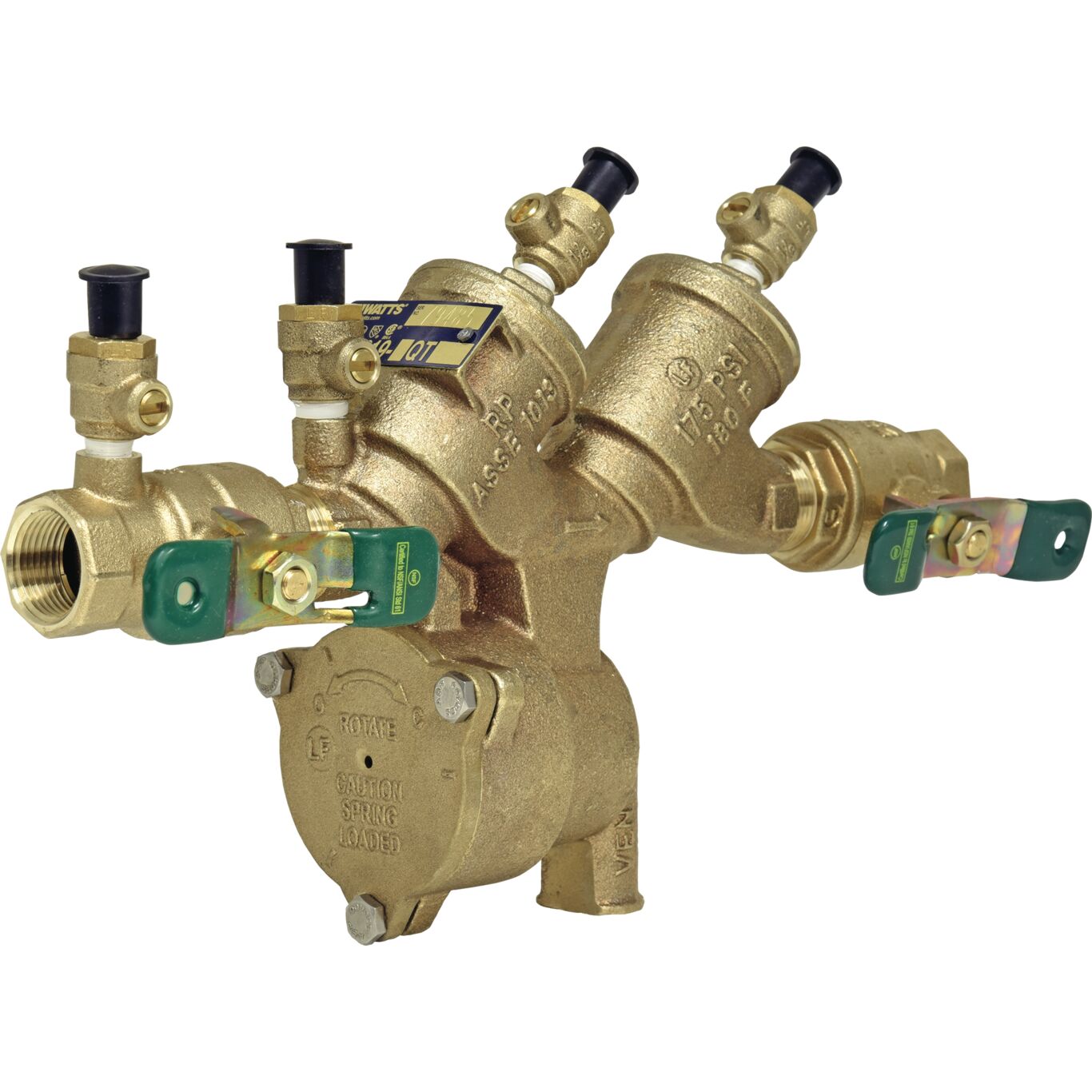

3/4 In Lead Free Reduced Pressure Zone Assembly, Quarter Turn Ball Valves

This 3/4 inch lead free reduced pressure zone assembly is designed to prevent the flow of polluted water from entering into the potable water supply due to backsiphonage and or backpressure in accordance with national plumbing codes and water authority requirements. Its compact modular design facilitates easy maintenance with separate access covers for in-line repairs. It can be used in a variety of installations without the need of any special tools. It is ideal for protection in continuous pressure piping applications and at cross-connections identified as health hazards and from other contaminants found at the service line entrance. This assembly consists of a bronze body construction, NPT end connections, quarter turn ball valve shutoffs with tee handles, two poppet style check valves and replaceable check seats, top mounted test cocks and a bottom mounted relief valve for reduced space requirements.

Product Features

  • Quarter turn full port resilient seated ball valve shutoffs with tee handles
  • Bottom mounted relief valve for reduced clearance installation
  • Top mounted screw driver slotted test cocks for easy testing and use in reduced clearance installation
  • Innovative check valve plastic cover bushing provides trouble free guiding of the check valve poppet
  • Lead free bronze body with NPT end connections
  • EZ twist relief valve cover with quarter turn locking joint captures the spring load during repair to facilitate disassembly
  • Separate access covers for the check valves and relief valve for ease of maintenance
  • No special tools are required for servicing
  • Compact, space saving design
Specifications
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Cast Bronze
Body Material Lead Free Bronze
Body Pattern Inline
BrandName Watts
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 3/4 IN
Inlet Connection Type Female Threaded
Inlet Shutoff Valve Type Quarter Turn Ball Valve
Inlet Thread Type NPT
LeadFree YES
Maximum Temperature-Fahrenheit 180
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature-Fahrenheit 33
ModelNumber LF919-QT 3/4
Outlet Connection Size 3/4 IN
Outlet Connection Type Female Threaded
Outlet Shutoff Valve Type Quarter Turn Ball Valve
Outlet Thread Type NPT
Part Number 0065372
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Engineered Plastic
Series LF919
Strainer No
