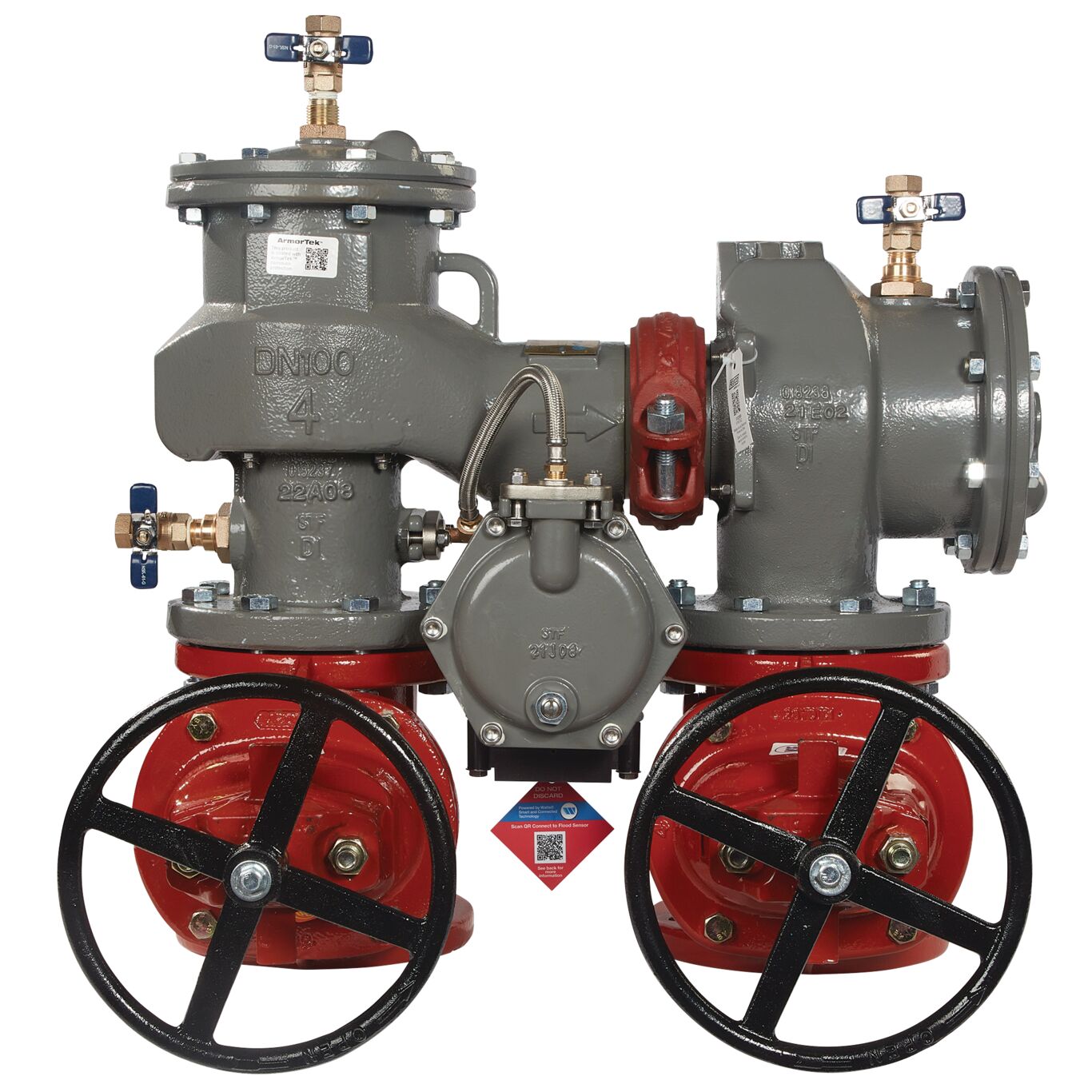

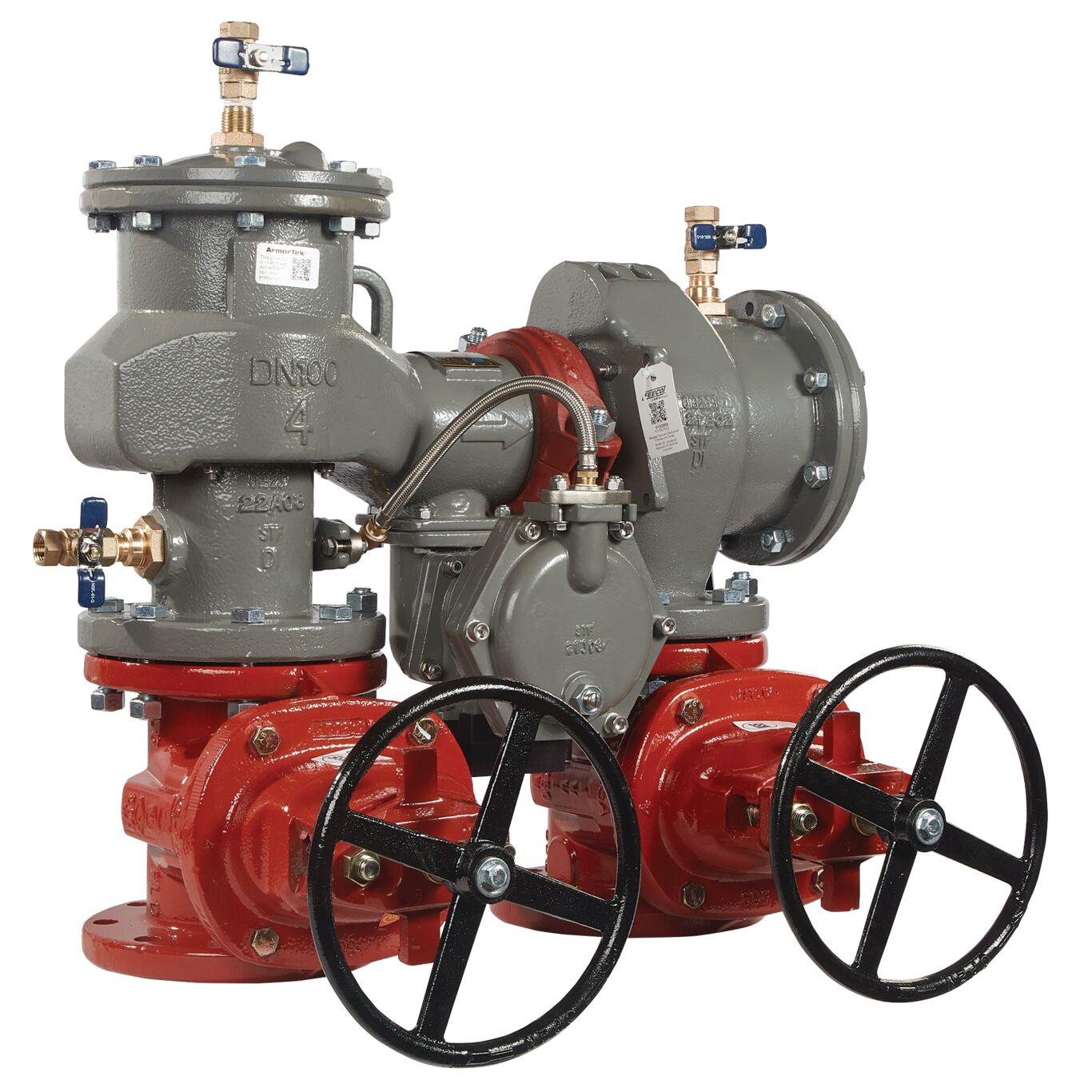

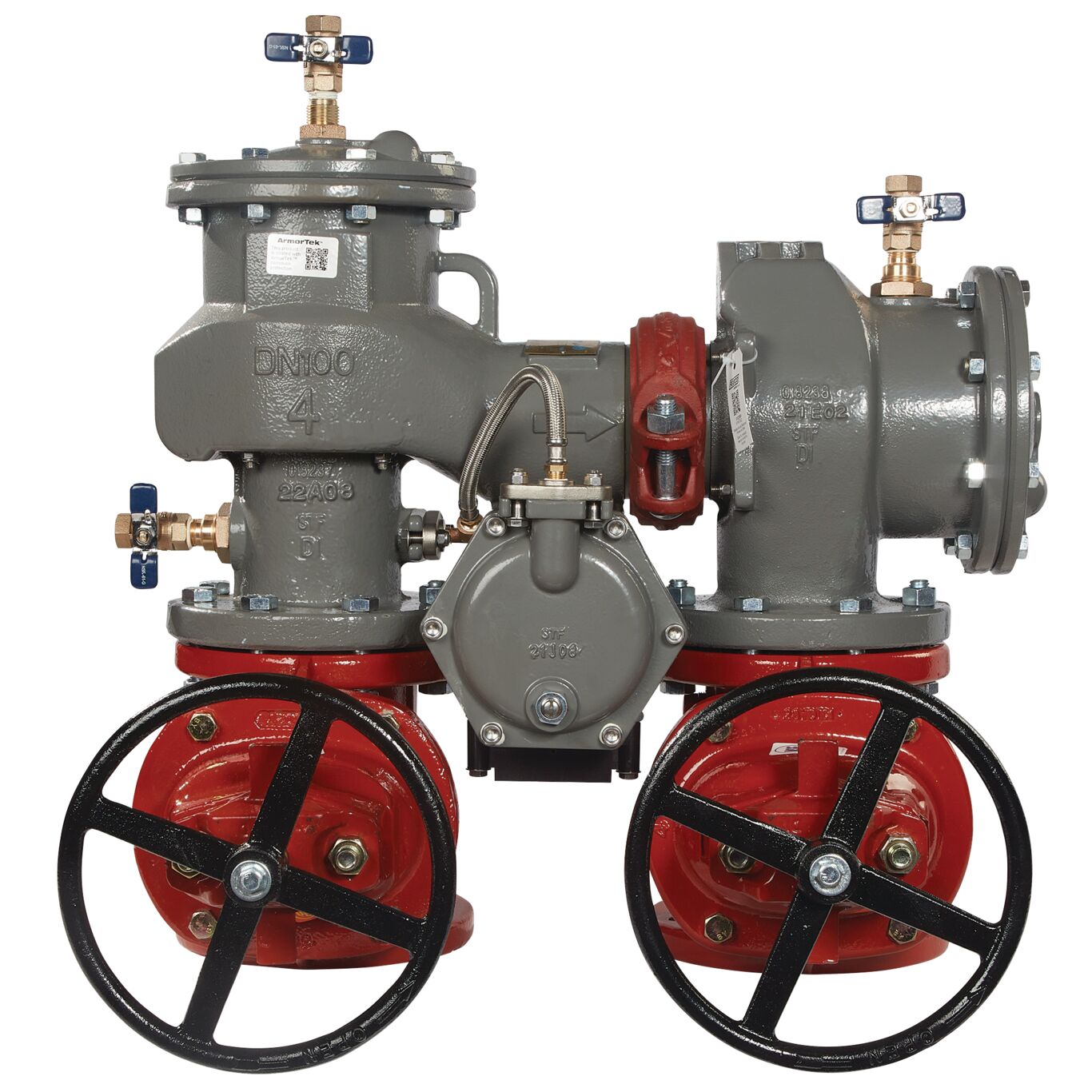

LF880V-DNRS-FS 6

Lead Free MasterSeries N-Pattern Reduced Pressure Zone Assembly Backflow Preventer, Domestic NRS Gates and Flood Sensor
Lead Free MasterSeries N-Pattern Reduced Pressure Zone Assembly Backflow Preventer, Domestic NRS Gates and Flood Sensor
Lead Free MasterSeries N-Pattern Reduced Pressure Zone Assembly Backflow Preventer, Domestic NRS Gates and Flood Sensor
×

Part of the LF880V Series

Ordering Code: F683143

UPC: 643925577822

Lead Free: YES

6 IN Lead Free Ductile Iron Reduced Pressure Zone Backflow Preventer Assy, Dom NRS Shutoffs, SS RV Seat, N-Pattern, ArmorTek Coating, Backflow Flood Sensor

This 6 inch lead free MasterSeries(R) configurable reduced pressure zone backflow preventer assembly help protect against high hazard (toxic) fluids in water services to industrial installations and applications. This assembly with domestic non-rising stem shutoff valves consists of a lead free body, test cocks, spring loaded check valves, and a pressure differential relief valve. The ductile iron body is fused with patented 3-part ArmorTek(R) epoxy coating for advanced corrosion resistance. Improved with a stainless-steel relief valve seat, these rugged assemblies yield greater dependability and extended valve life. The coating on this backflow assembly uses ArmorTek, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This backflow assembly contains a flood sensor with SentryPlus Alert(R) technology to detect excessive water discharges from the relief valve. When activated through an add-on sensor connection kit, the flood sensor can send an alert to notify personnel about potential flooding. Add-on sensor connection kits are available for BMS and cellular communications.

Features

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Ductile iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
  • Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
  • Configurable N-Pattern design
  • Lead free construction
  • Field reversible relief valve
  • Stainless steel springs
  • EPDM elastomer discs
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Reduced Pressure Zone Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Ductile Iron
Body Pattern N-Pattern
Brand FEBCO
Bypass No
Bypass Size Does Not Apply To Product
Cap And Tether No
Disc Material Silicone
EAN 643925577822
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 6 IN
Inlet Connection Size-Metric 152.4 MM
Inlet Connection Type Flanged Joint
Inlet Shutoff Valve Type Non Rising Stem Gate Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type No Meter
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 6 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type Non Rising Stem Gate Valve
Outlet Thread Type Does Not Apply To Product
Part Number F683143
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF880V
Strainer Yes
Technologies Flood Detection
Tradename MasterSeries(R)
