LF886V-LG-GPM-FS 8

Part of the LF886V Series

Ordering Code: F683202

UPC: 643925578379

Lead Free: YES

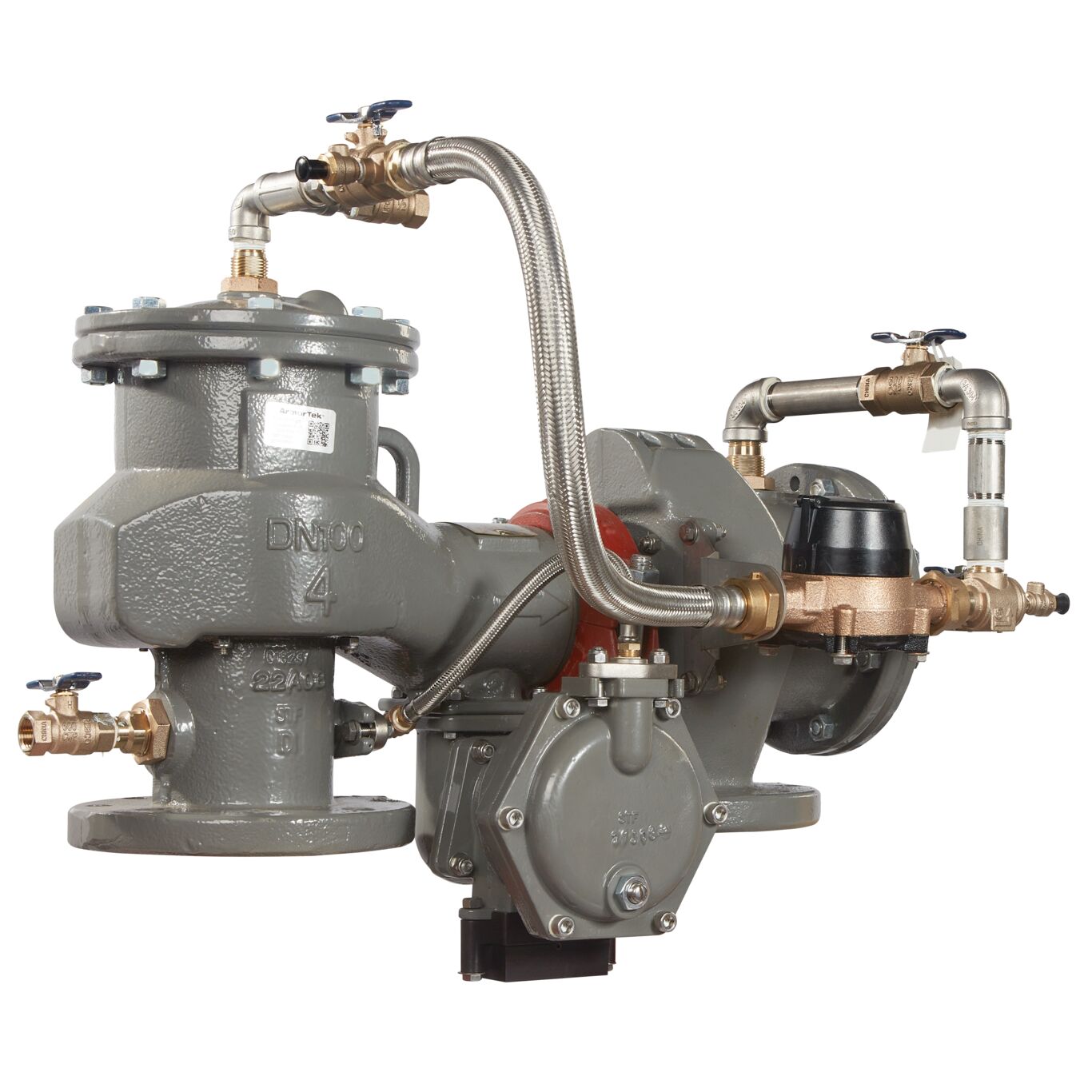

8 IN DI Reduced Pressure Detector Backflow Preventer Assy, Less Shutoff, Clapper Check Modules, GPM, SS RV Seat, N Pattern, ArmorTek Coating, Backflow Flood Sensor

  • Features a flood sensor with SentryPlus Alert technology to detect excessive water discharges from the relief valve
  • Alert features available with add-on sensor connection kit
  • Ductile iron body construction with patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion
  • Combines the use of a stainless-steel relief valve seat and stainless-steel check components for maximum performance and durability
  • Detector bypass assembly with GPM meter
  • Appropriate for health hazard applications
Specifications
ArmorTek Technology Yes
Backflow Preventer Type Reduced Pressure Zone Detector Assembly
Body Finish Epoxy Coated Using ArmorTek Technology
Body Material Ductile Iron
Body Pattern N-Pattern
Brand FEBCO
Bypass Yes
Bypass Size 3/4 IN
Cap And Tether No
Disc Material Rubber
EAN 643925578379
Elbow Fitting No
Hazard Protection Level Health Hazard
Hot And Harsh Water No
Hydrant Connection No
Inlet Connection Size 8 IN
Inlet Connection Size-Metric 203 MM
Inlet Connection Type Grooved Joint
Inlet Shutoff Valve Type No Shutoff Valve
Inlet Thread Type Does Not Apply To Product
Lead Free YES
Maximum Temperature-Fahrenheit 140
Maximum Working Pressure-BAR 12.10
Maximum Working Pressure-PSI 175
Meter Type GPM
Minimum Temperature - Celsius 1.00
Minimum Temperature-Fahrenheit 33
Outlet Connection Size 8 IN
Outlet Connection Type Flanged Joint
Outlet Shutoff Valve Type No Shutoff Valve
Outlet Thread Type Does Not Apply To Product
Part Number F683202
Polymer Coating No
Pressure Operation Continuous
Protection Type Backpressure and Backsiphonage
Seat Material Stainless Steel
Series LF886V
Strainer Yes
Technologies Flood Detection
Tradename MasterSeries(R)
