Features
- Sensor on relief valve for flood detection
- Flood alerts feature available with add-on connection kit, compatible with BMS and cellular communication
- Provides mechanical protection of potable water against high hazard (toxic) cross-connection contamination
- Meets all specifications of AWWA, ASSE, CSA and approved by the Foundation for Cross-Connection Control and Hydraulic Research at the University of Southern California
- Modular relief valve for ease of maintenance
- Sizes 3/4 in. ‐ 2 in. (20mm to 50mm)
- Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
Nexa pairs integrated sensing hardware with free, upgradable software to empower facilities with unprecedented visibility and control over their water systems, helping teams protect assets, deliver consistent performance, and drive measurable ROI.
Learn more about Nexa

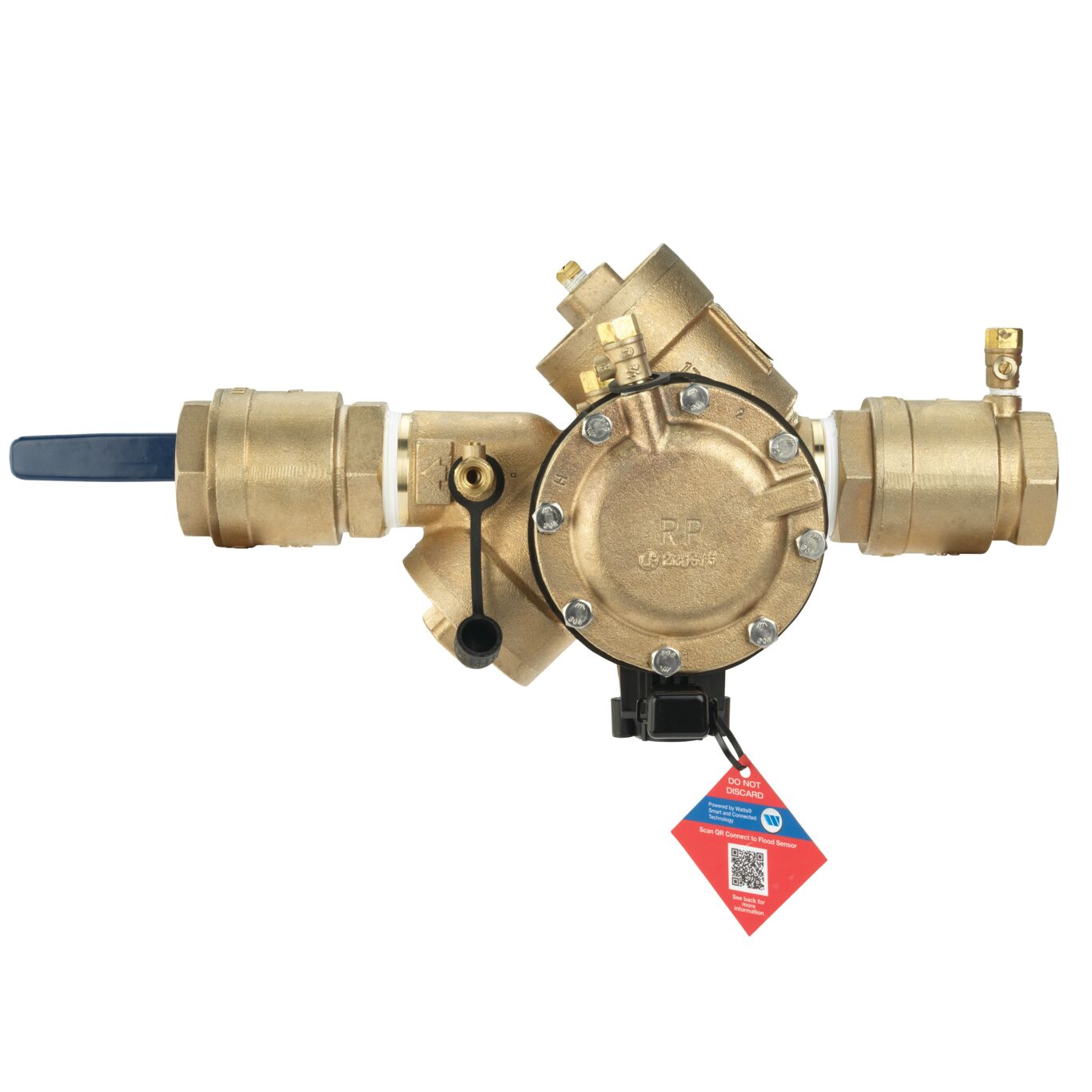

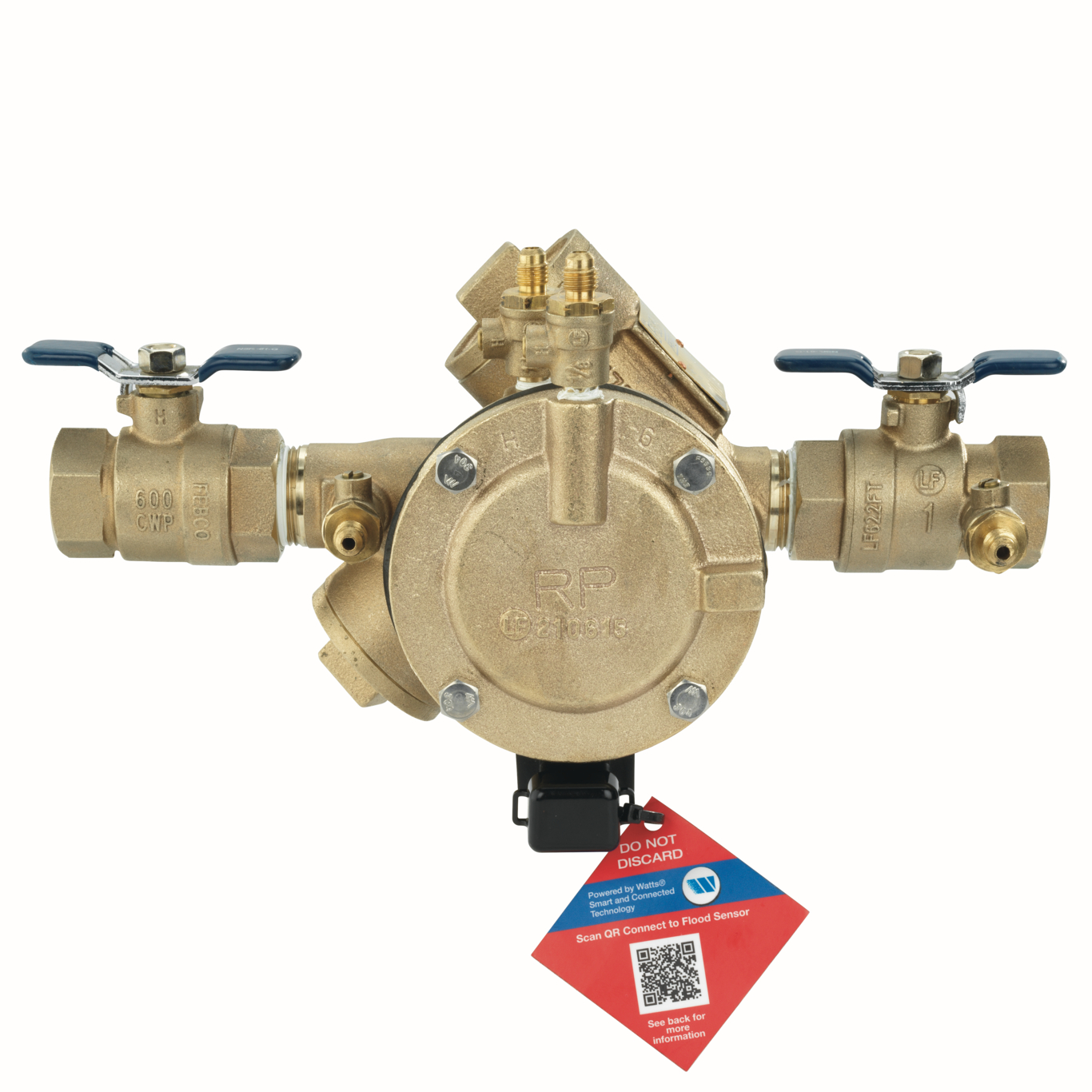

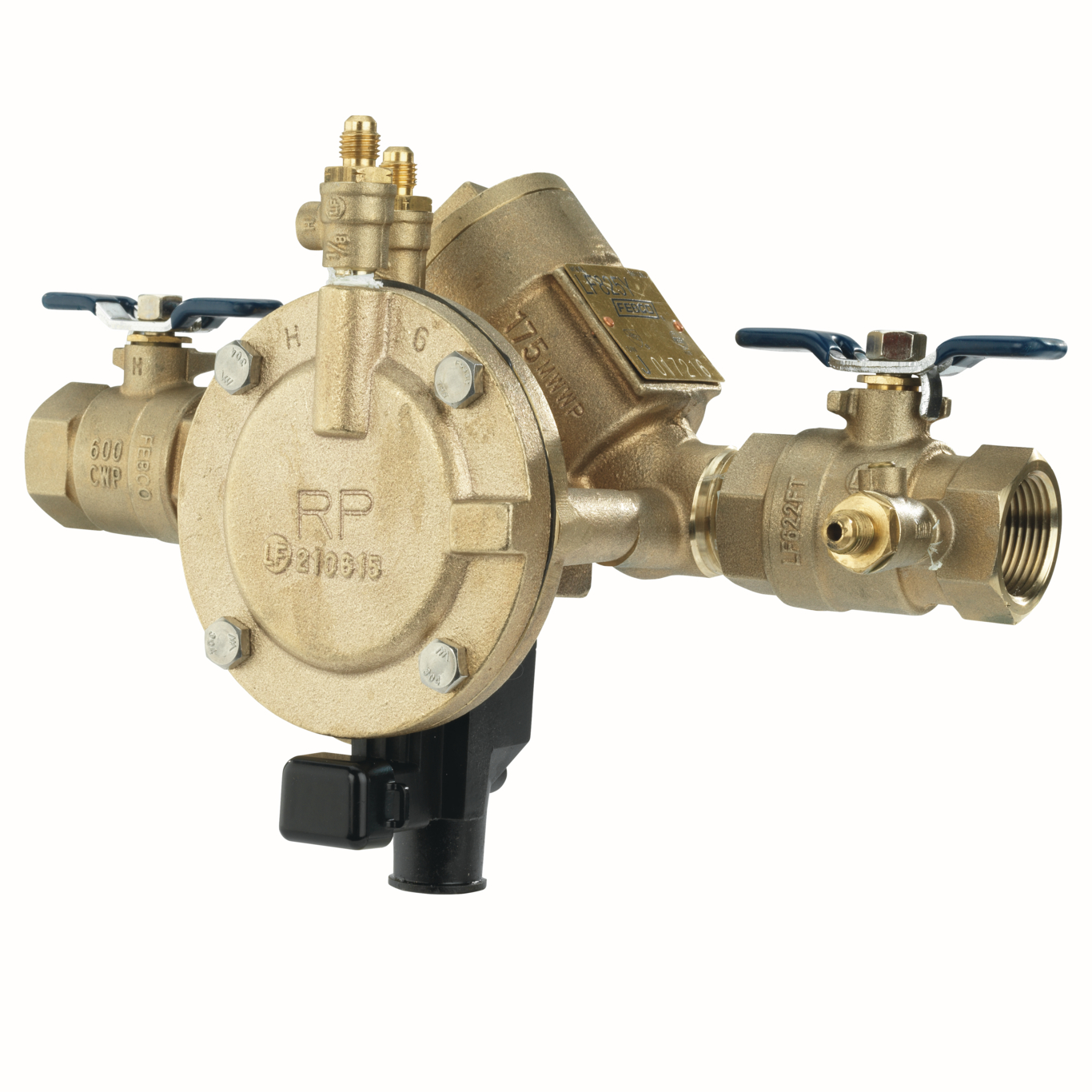

Series 825Y Reduced Pressure Zone assemblies feature a flood sensor using SentryPlus Alert® technology to detect continuous discharge from the relief valve. When paired with an add on connection kit, the sensor is activated to relay alerts for potential flooding events. Connection kit options include BMS, cellular communication, and the Sensor Control Monitor which enables integration with BAS via RS-485 Modbus or the Nexa® platform through Wi-Fi.
This series protects against high hazard (toxic) fluids in water services to industrial plants, hospitals, morgues, mortuaries, and chemical plants. Applications also extend to irrigation systems, boiler feed, water lines, and other installations requiring maximum protection.
To learn more visit: https://www.watts.com/floodprotectionsystem
Approval/Certification Information
For product-specific approval information, please refer to the product’s specification sheet (see literature section above) or ask a Watts representative. Some certification agencies allow you to search by product name and brand.
Literature
Video - Connected Backflow Flood Detection
Learn how Watts flood sensors integrated with backflow prevention assemblies provide real-time alerts for excessive relief valve discharge, helping prevent water damage and facility downtime.
Runtime : 00:01:10Watch Now
Video - Air Gap Flood Detection Sensor Installation - FEBCO 825Y, 825YA, LF825Y, LF825YA
Runtime : Watch Now
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific 825Y
No results found
| Model | Used On - Series or Model | Kit Contents |
|---|---|---|
|

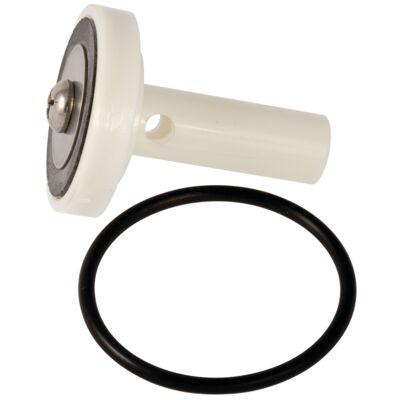

288A-Z1-T 3/4
Repair Kit |
</br>288A-Z1</br> |
Disc Assembly (Includes Disc and Disc Float), Bonnet O-ring</br> |
|

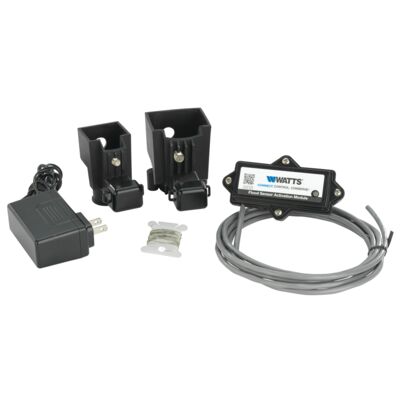

FP-RFK-FBF-BMS-CFS-825-3/4-2
Activation Kit |
</br>825Y, LF825Y, 825YA, LF825YA</br> |
2 Flood Sensors, Sensor Activation Module with Cable, Ground Wire, Power Adapter</br> |
|

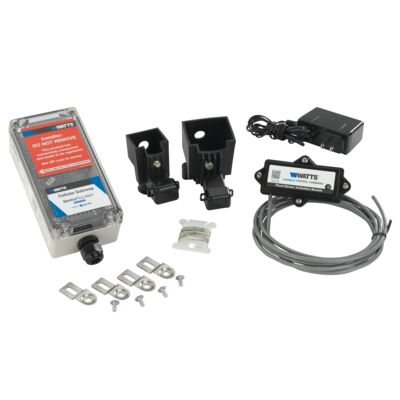

FP-RFK-FBF-CFS-3/4-2
Activation Kit |
</br>825Y, LF825Y, 825YA, LF825YA</br> |
2 Flood Sensors, Sensor Activation Module with Cable, Cellular Gateway with Mounting Kit, Ground Wire, Power Adapter</br> |
|
FRK 825Y-RT 3/4-1 1/4
Complete Rubber Parts Kit |
</br>825Y</br> |
2 RV O-rings, Diaphragm, RV Seat Disc, 2 Seat Disc, 2 Cover, O-rings, 3 Bushings, RV Seat O-ring</br> |
|

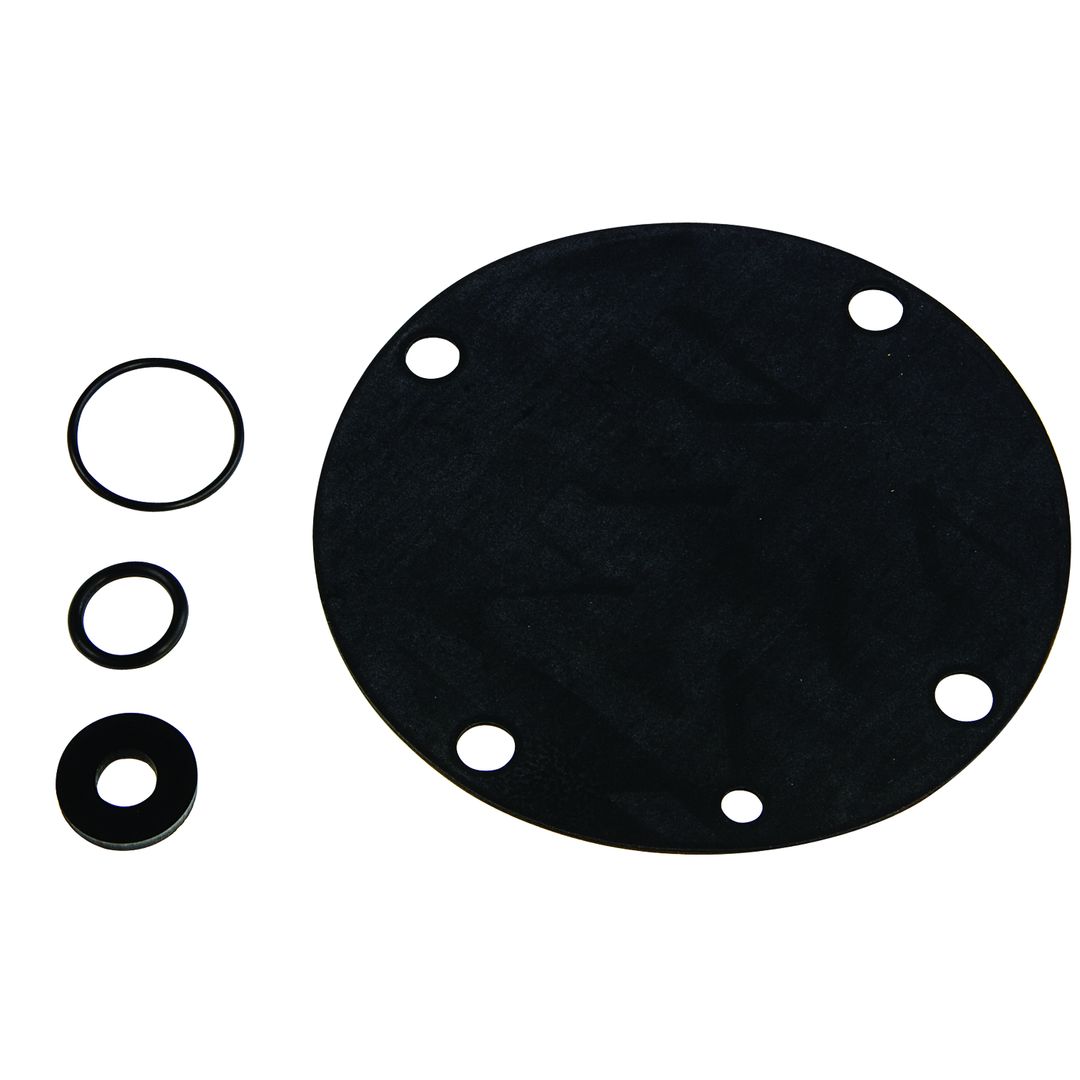

FRK 825Y-RV 3/4-1 1/4
Relief Valve Rubber Parts Kit |
</br>825Y</br> |
2 O-rings, Diaphragm, Seat Disc</br> |
|

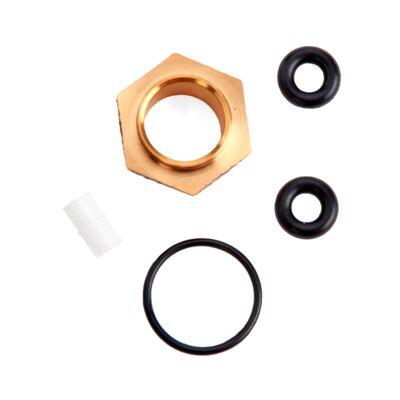

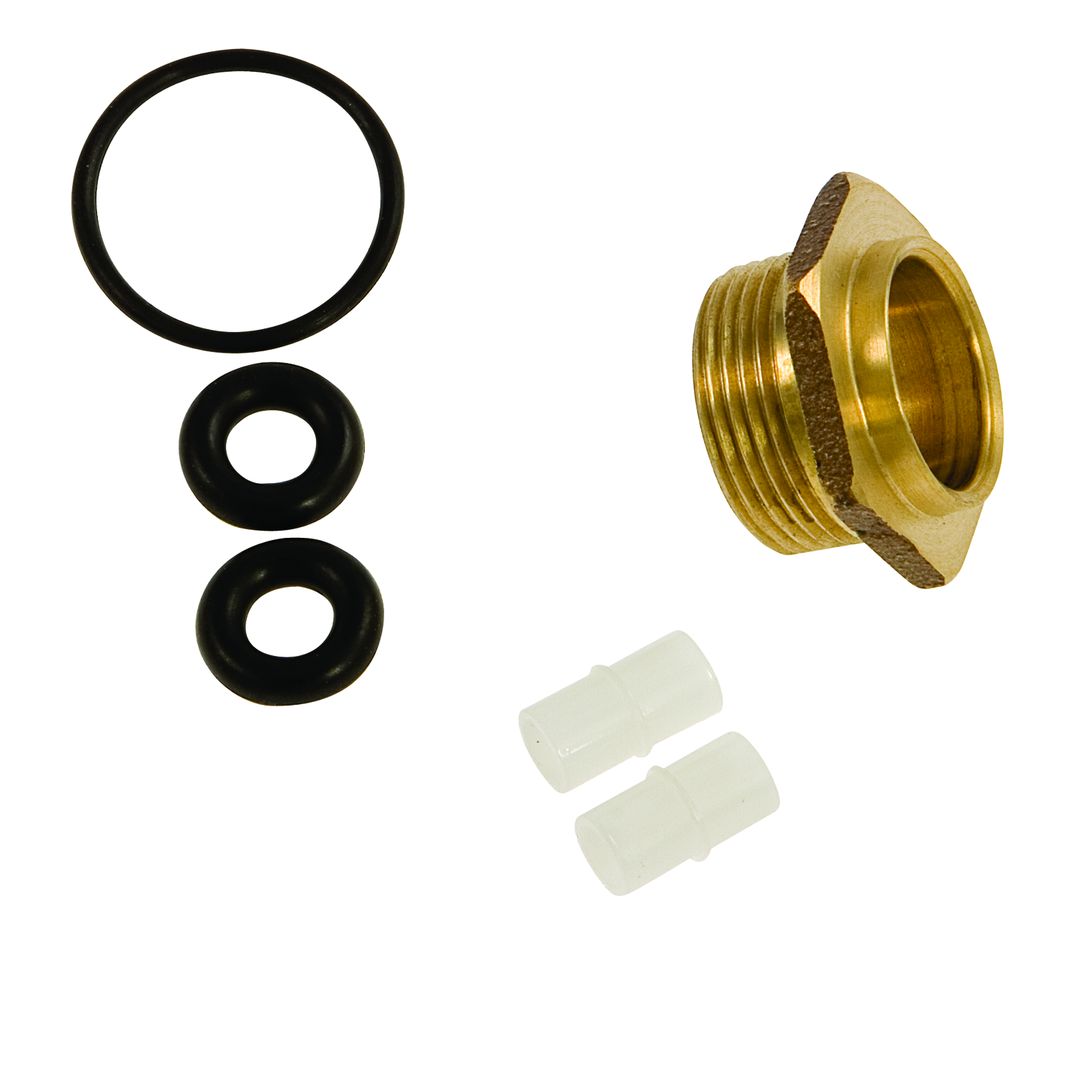

FRK 825Y-VS 3/4-1
Relief Valve Seat Ring Kit |
</br>825Y</br> |
Seat Ring, Seat Ring O-ring, Bushing, O-ring Seal</br> |
|

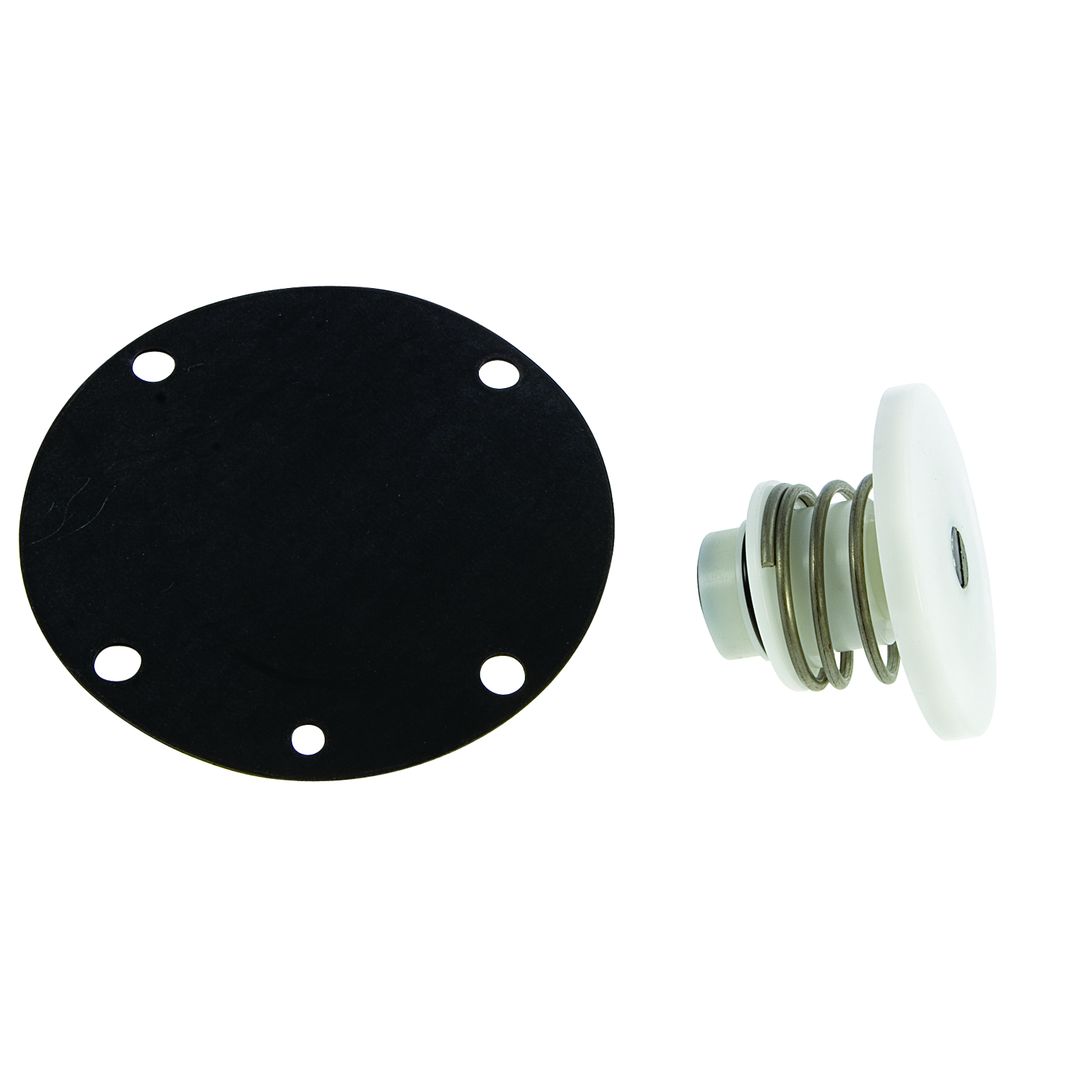

FRK 825Y-YS VT 3/4-1 1/4
Relief Valve Kit |
</br>825Y</br> |
Internal Spring/Disc Holder Assembly, Diaphragm</br> |
|

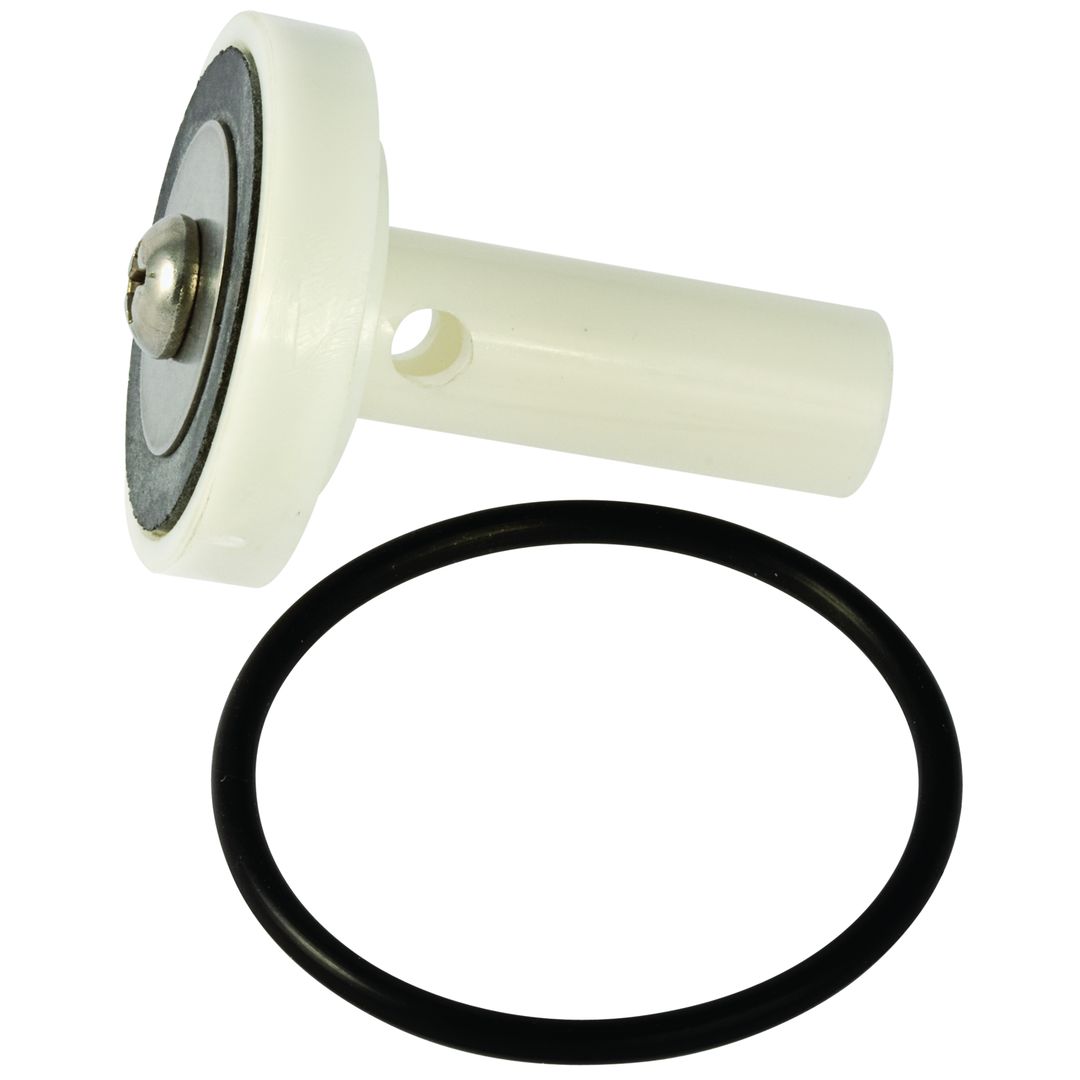

FRK805825Y-CK4 3/1-1 1/4
Single Check Kit |
</br>805, 825Y</br> |
Disc Holder Assembly, Cover O-ring</br> |
|

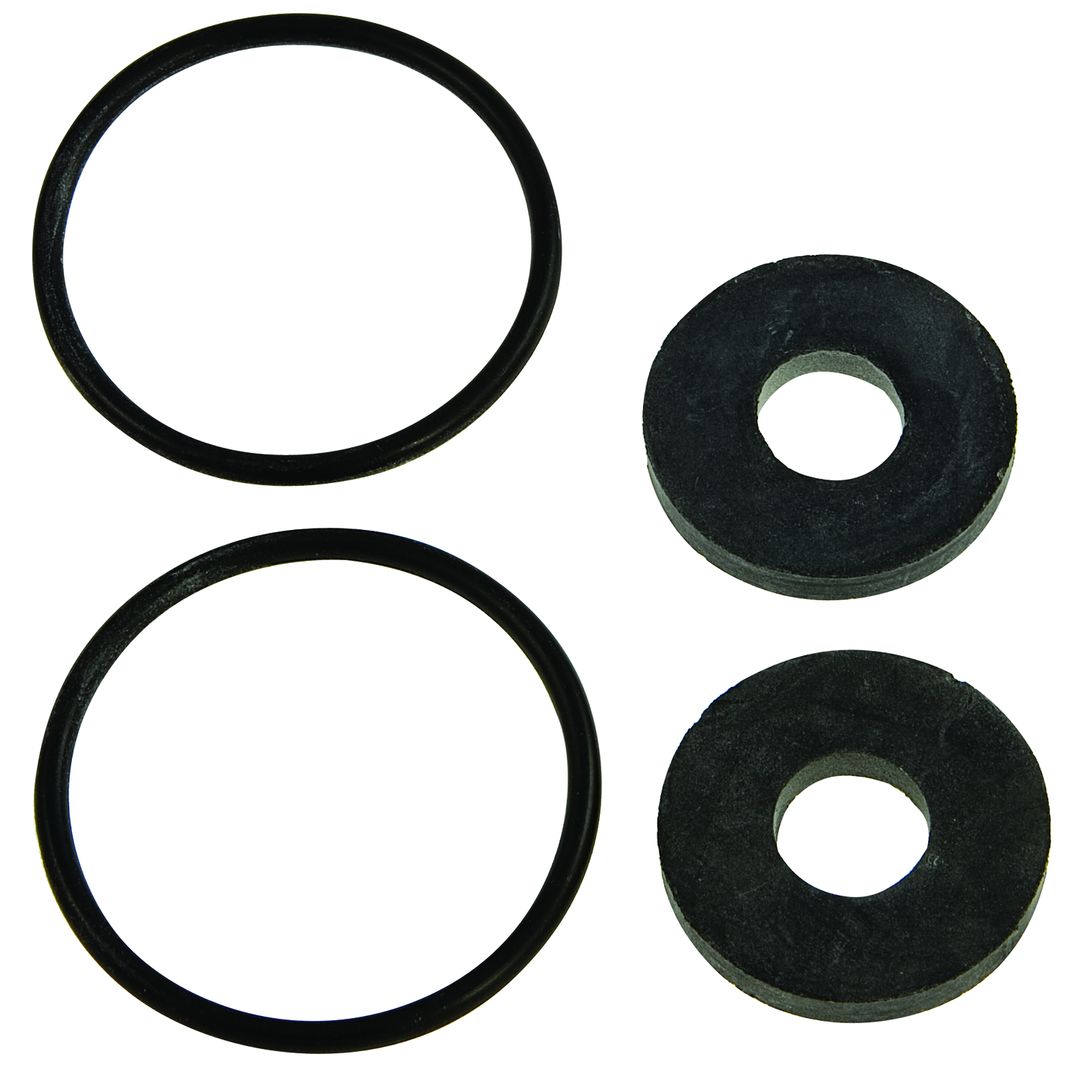

FRK805825Y-RC3 3/4-1 1/4
Check Rubber Parts Kit |
</br>805, 825Y</br> |
2 Seat Discs, 2 Cover O-rings</br> |
|
LFFRK825Y-VS 3/4-1 1/4
Relief Valve Seat Ring Kit |
</br>LF825Y</br> |
</br> |
|
FP-FBF-BMS 1/2-2
Activation Kit |
</br>860 Small, LF860 Small, 825Y, LF825Y, LF860 Large, LF866, LF880V, LF886V</br> |
Sensor Activation Module with Cable, Ground Wire, Power Adapter</br> |
|
FP-FBF-CFS 1/2-2
Activation Kit |
</br>861 Small, LF860 Small, 825Y, LF825Y, LF860 Large, LF866, LF880V, LF886V</br> |
Sensor Activation Module with Cable, Cellular Gateway with Mounting Kit, Ground Wire, Power Adapter</br> |
|

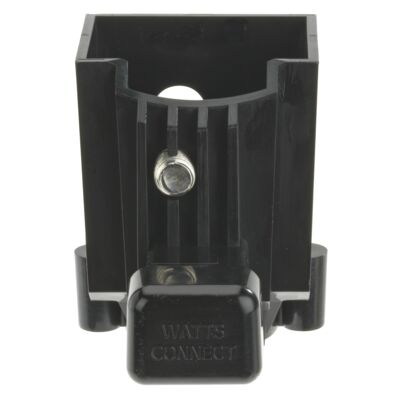

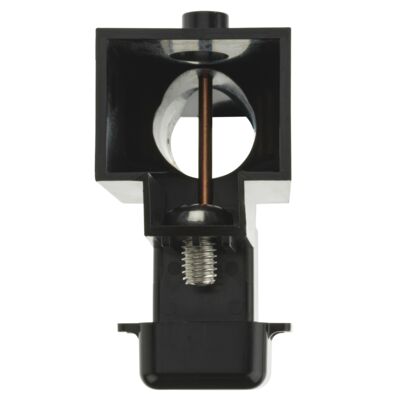

FP-FBF-SA-825-3/4-1
Upgrade/Repair Kit |
</br>825Y, LF825Y, 825YA, LF825YA</br> |
Flood Sensor with Captive Screw</br> |
|
SCM-BF-CONN KIT
Activation Kit |
</br>Watts 009/LF009, LF909, LF919, 909RPDA, 957, 957RPDA, 994, 994RPDA; Ames C400, C500, 5000SS, 4000SS, FEBCO LF860, 825Y, LF825Y, LF866, LF880V, LF886V</br> |
Sensor Control Monitor, Power Adapter, Mounting Feet, and Quick Start Guide</br> |
|
FP-FBF-SA-825-1 1/4-2
Upgrade/Repair Kit |
</br>825Y, LF825Y, 825YA, LF825YA</br> |
Flood Sensor with Captive Screw</br> |
|
FRK 805/825Y/825YA-CK4 1 1/2-2
Single Check Kit |
</br>805Y, 825Y, 825YA</br> |
Disc Holder Assembly, Cover O-ring</br> |
|
FRK 805/825Y/825YA-RC3 1 1/2-2
Check Rubber Parts Kit |
</br>805, 825Y</br> |
2 Seat Discs, 2 Cover O-rings</br> |
|
FRK 825Y-RT 1 1/2-2
Complete Rubber Parts Kit |
</br>825Y</br> |
2 RV O-rings, Diaphragm, RV Seat Disc, 2 Seat Disc, 2 Cover, O-rings, 3 Bushings, RV Seat O-ring</br> |
|
FRK 825Y-RV 1 1/2-2
Relief Valve Rubber Parts Kit |
</br>825Y</br> |
2 O-rings, Diaphragm, Seat Disc</br> |
|

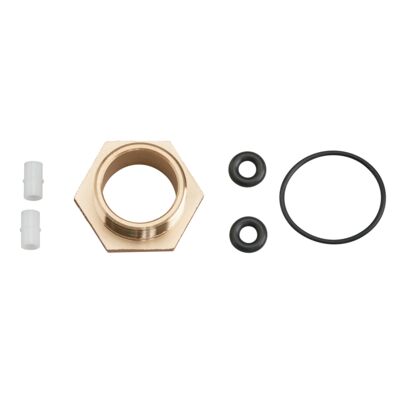

FRK 825Y-VS 1 1/2-2
Relief Valve Seat Ring Kit |
</br>825Y</br> |
Seat Ring, Seat Ring O-ring, Bushing, O-ring Seal</br> |
|
FRK 825Y-YS VT 1 1/2-2
Relief Valve Kit |
</br>825Y, 825YS</br> |
Internal Spring/Disc Holder Assembly, Diaphragm</br> |
|

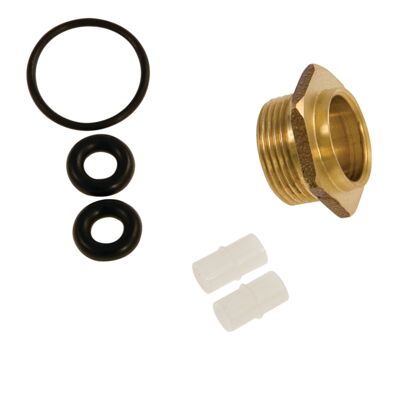

LFFRK825Y-VS 1 1/2-2
Relief Valve Seat Ring Kit |
</br>LF825Y</br> |
</br> |
