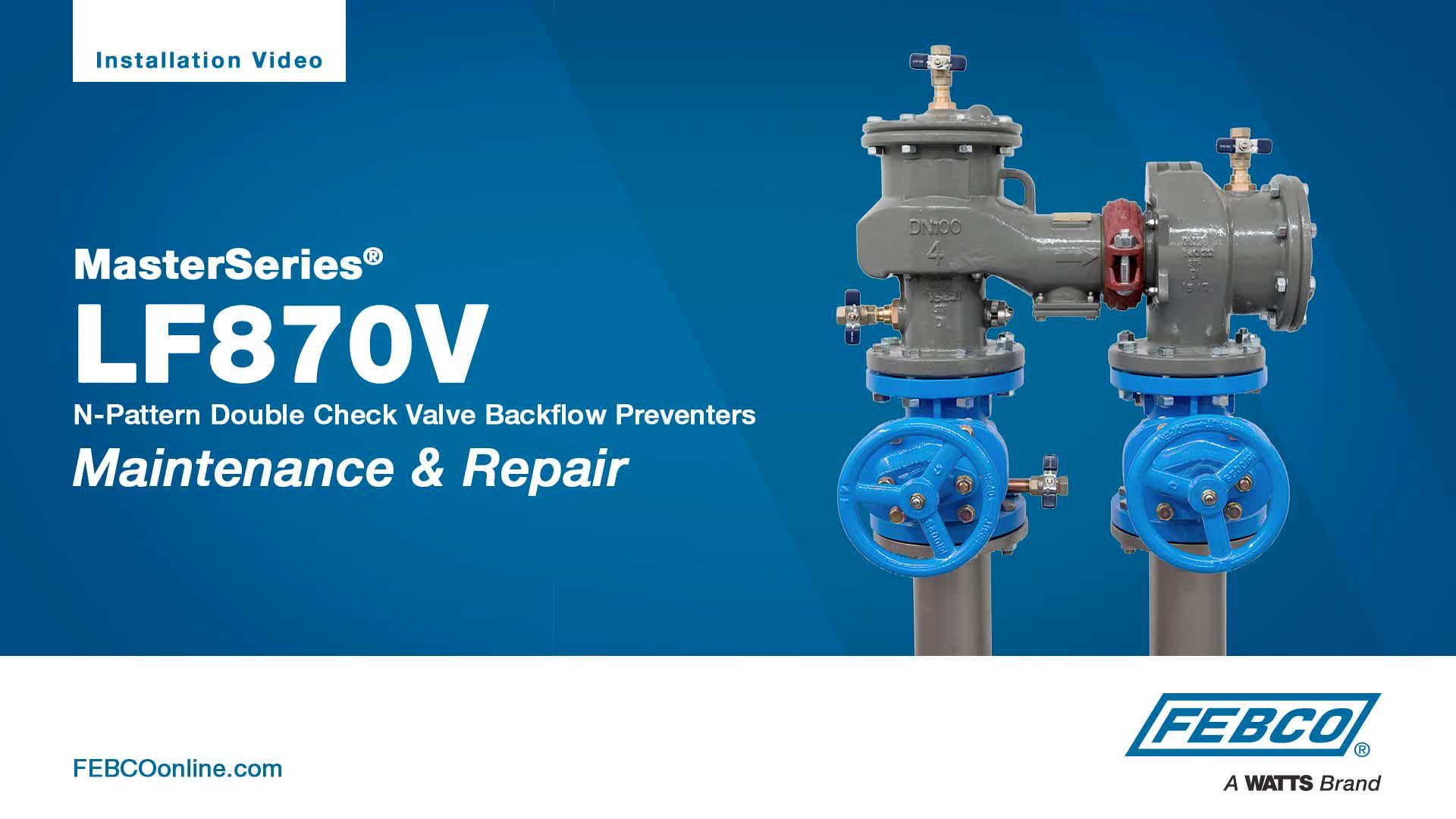

LF870V
Features
- Protects against possible backpressure and backsiphonage conditions for non-health hazard applications
- Primarily used on potable drinking water systems where code mandates protection from backpressure and backsiphonage conditions
- Utilizes advanced ArmorTek coating technology to resist corrosion of internals
- The valve body shall utilize a coating system with built in electrochemical corrosion inhibitor and microbial inhibitor
- Inline serviceable assembly requires no special tools
- Sizes 2 1⁄2 in. - 10 in. (65mm - 250mm)

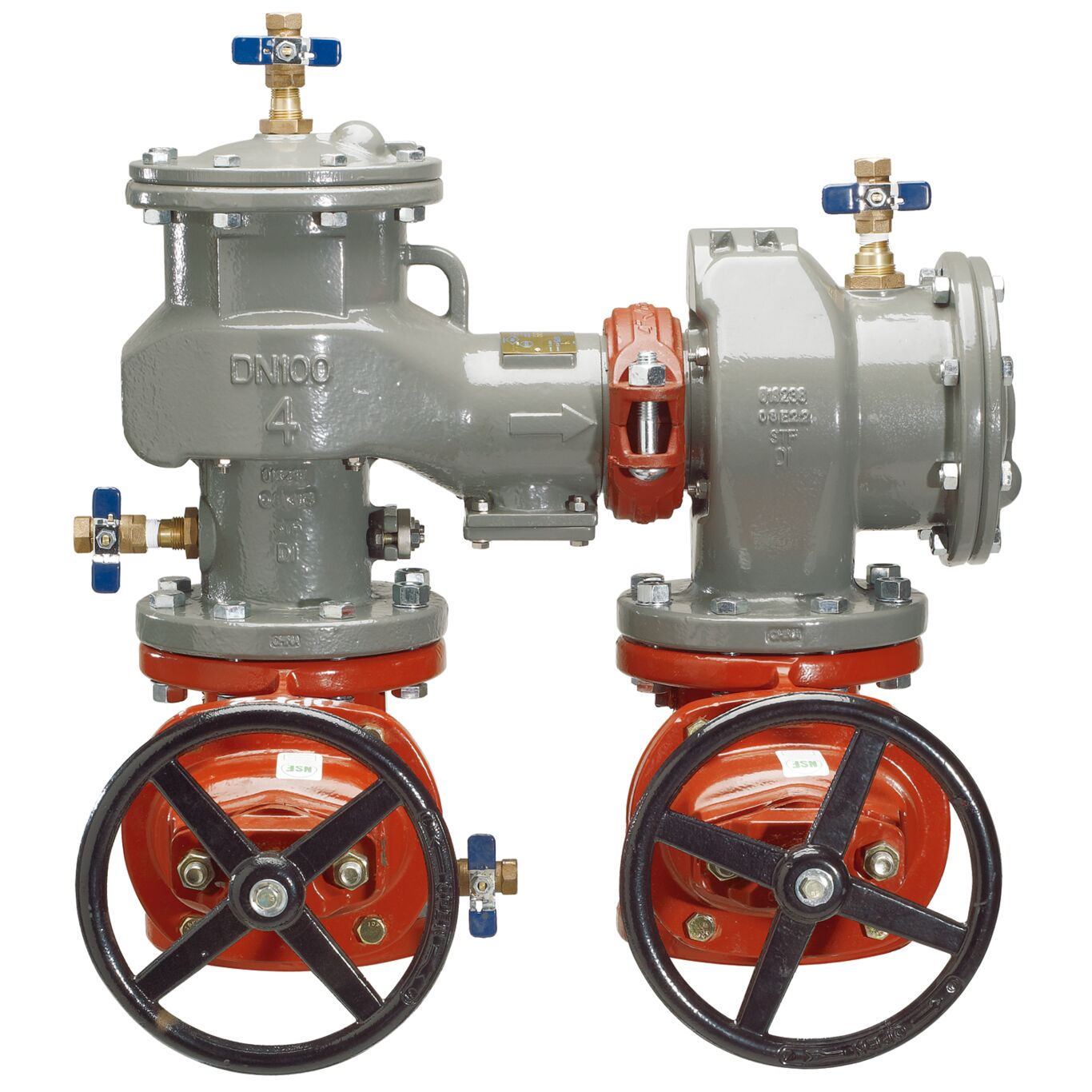

MasterSeries LF870V Lead Free* double check valve assemblies prevent the backflow of pollutants that are objectionable but not toxic, from entering into the potable water supply. This assembly consists of a fused epoxy coated ductile iron body using ArmorTek® epoxy coating technology for advanced corrosion resistance. Available with NRS or OSY resilient wedge gate valves. Maximum working pressure: 175 psi (12.1 bar).
The coating on this backflow assembly uses ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.
To learn more visit: https://www.watts.com/armortek
Literature
Select a Model
Select options below to identify the UPC, Order Code, and Repair Kit for a specific LF870V
No results found
| Model | Product Used On - Series or Model | Kit Contents |
|---|---|---|
|

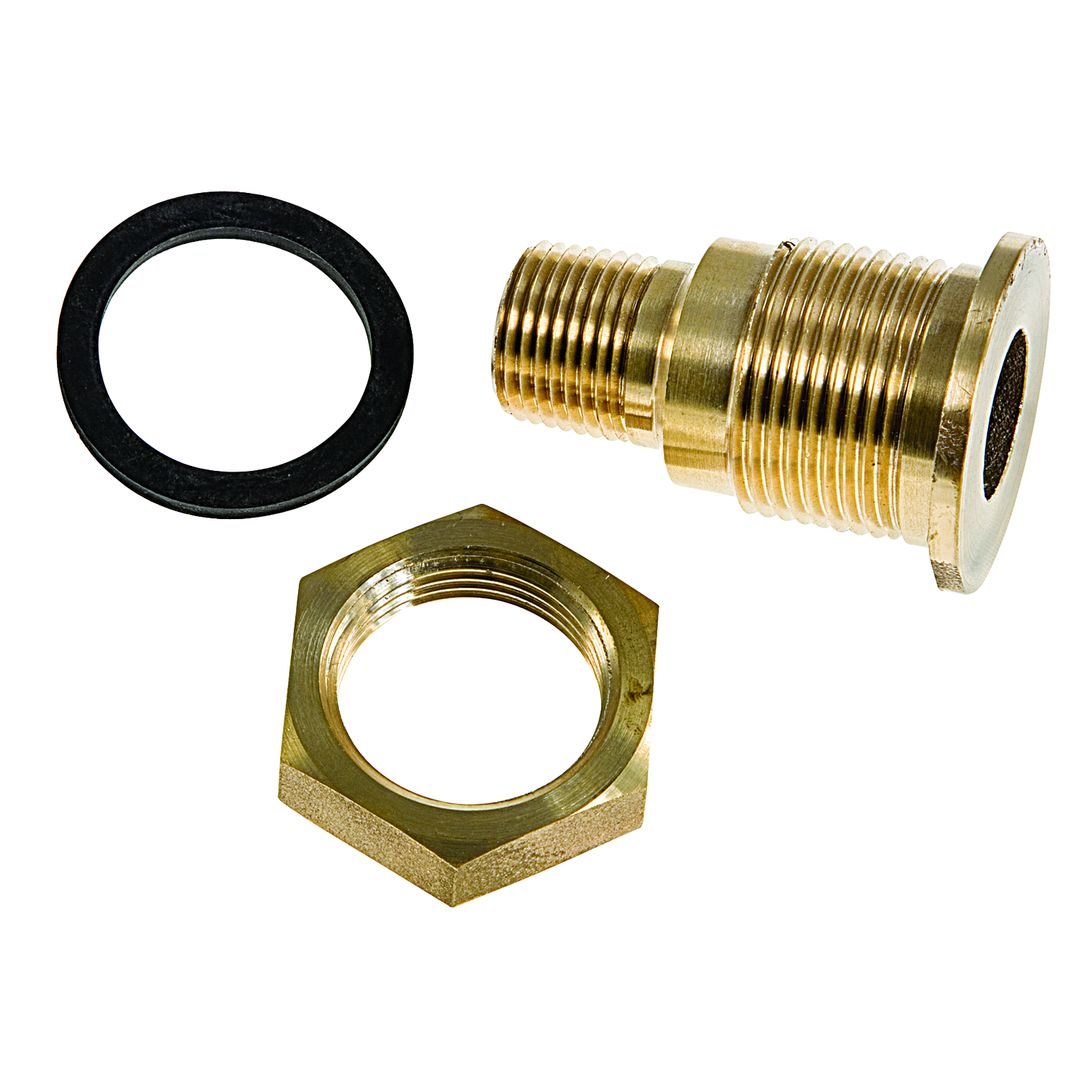

FRK 850/856/870V/880V-BFBC
Bulkhead Fitting Kit |
</br>850, 856, 870V, 880V</br> |
Bulk Head Fitting, Gasket, Nut</br> |
|

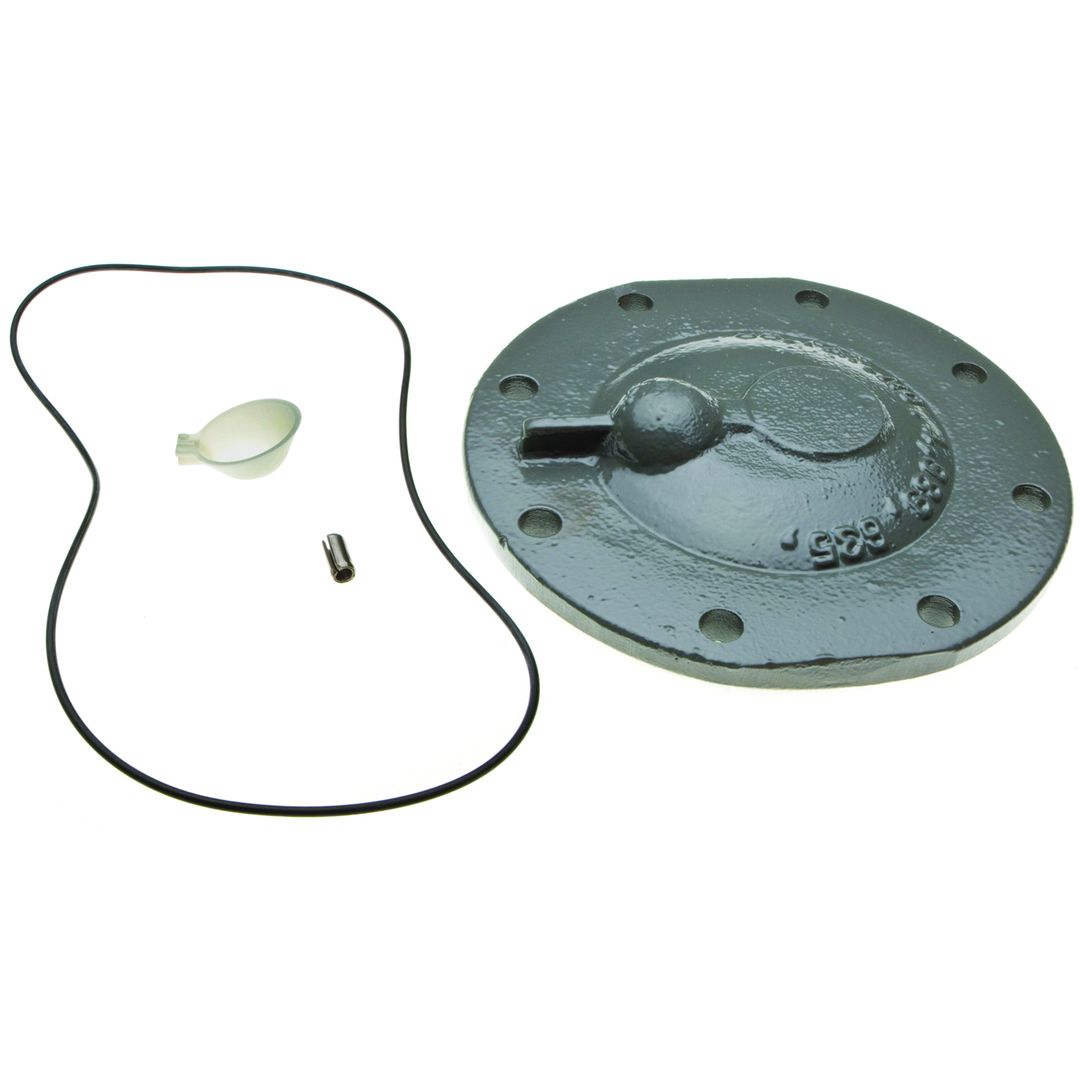

FRK 880-C2 10
Cover Kit |
</br>870V, 880</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|
FRK 880V
Relief Valve Rubber Parts Kit |
</br>8860, 880V</br> |
2 O-rings, Outer/Inner Diaphragm, Seat Disc, Sensing Line Gasket</br> |
|
FRK850/870-76/880-CBHF 10
Cover Assembly-Inlet |
</br>850, 870, 876, 880</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|
FRK 850/856/870V/880V-BFB
Bulkhead Fitting Kit |
</br>850, 856, 870V, 880V</br> |
Bulk Head Fitting, Gasket, Nut</br> |
|
FRK 850/856/870V/880V-BFC
Bulkhead Fitting Kit |
</br>850, 856, 870V, 880V</br> |
Bulk Head Fitting, Gasket, Nut</br> |
|

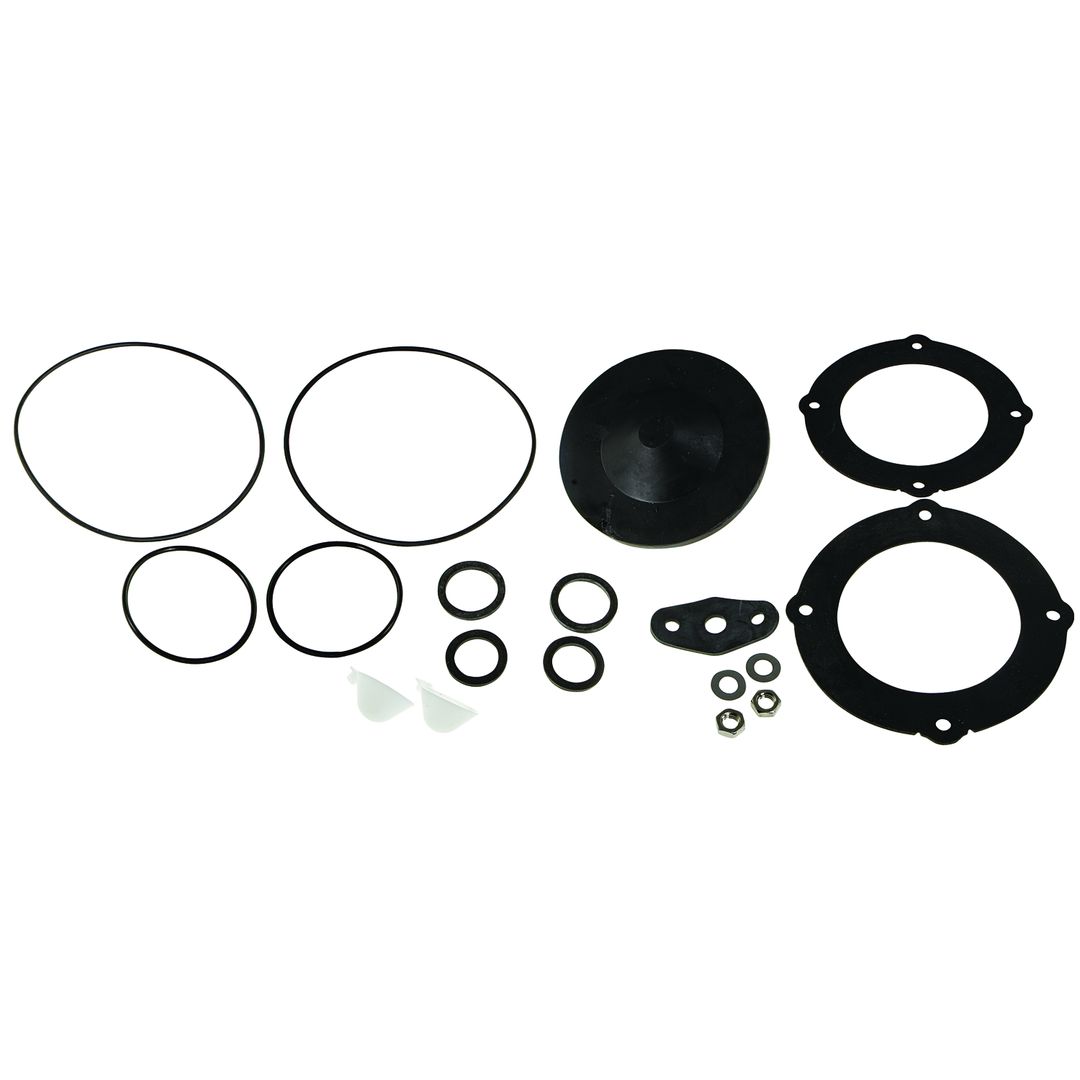

FRK 870/876V-RT 2 1/2-3
Complete Rubber Parts Kit |
</br>870, 876V</br> |
2 Seat Discs, 2 Seat Gaskets, 2 Cover O-rings, 2 Cover Bushings, Cover Plate Gasket and O-ring, 4 Bulk Head Gaskets</br> |
|
FRK 870/880 CBHF 2 1/2-3
Cover Assembly-Inlet |
</br>870, 880</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|

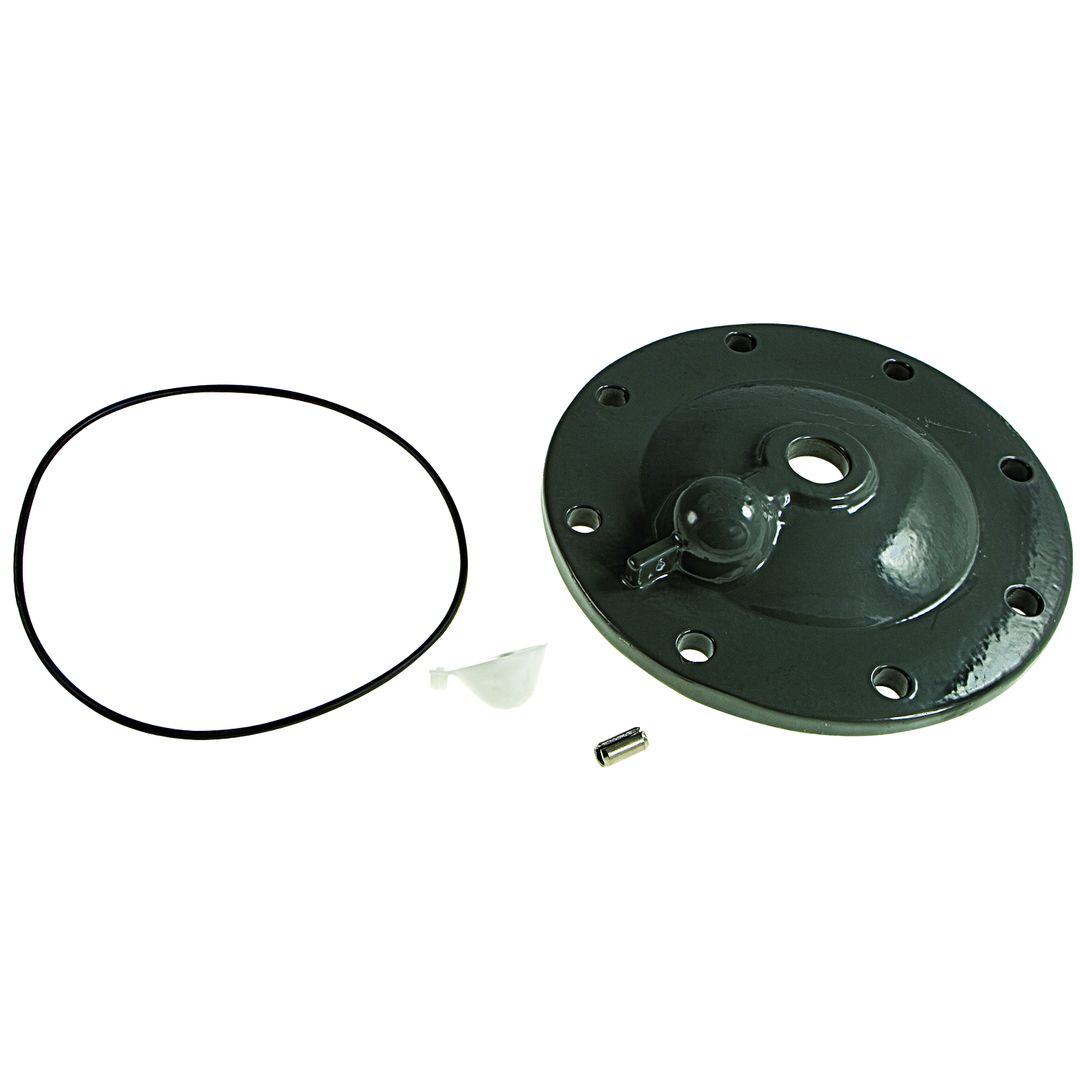

FRK 870V/876V/880V-C2 2 1/2-3
Cover Assembly-Outlet |
</br>870V, 876V</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|
LFFRK 85X/87X-RT 2 1/2-3
Complete Rubber Parts Kit |
</br>856ST, 876VST, LF860, LF886V</br> |
</br> |
|

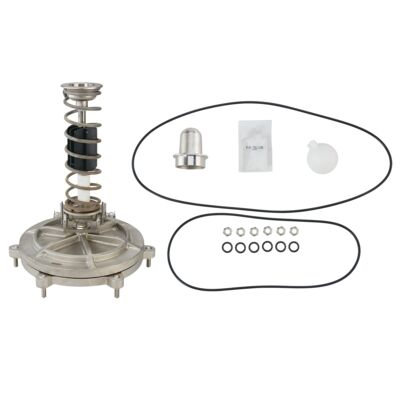

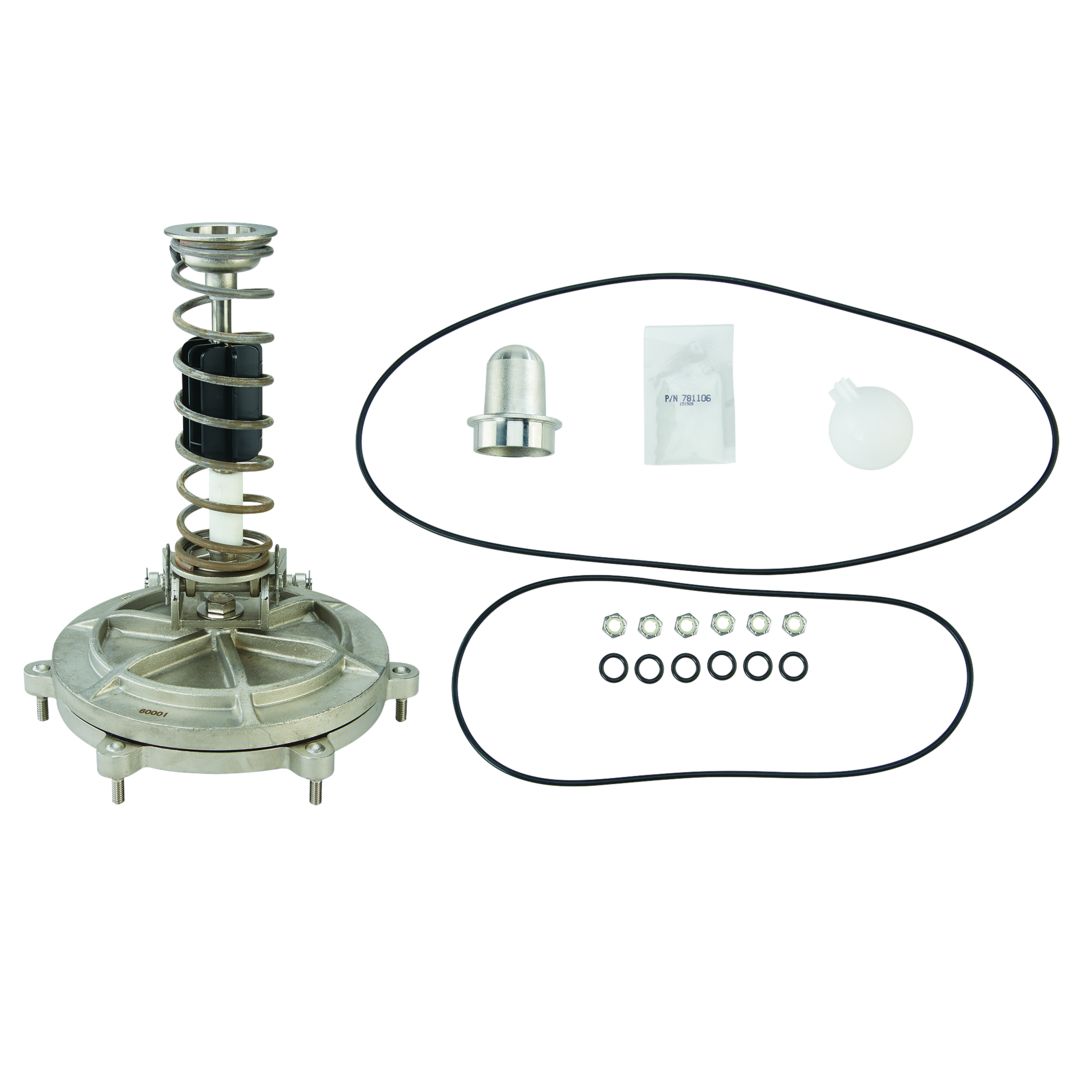

LFFRK 850/870-CK4 856/876 CK1 860/880 CK2 4
Check Replacement Kit-Inlet |
</br>850, 870</br> |
</br> |
|

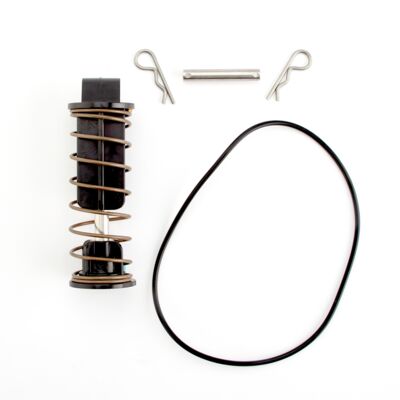

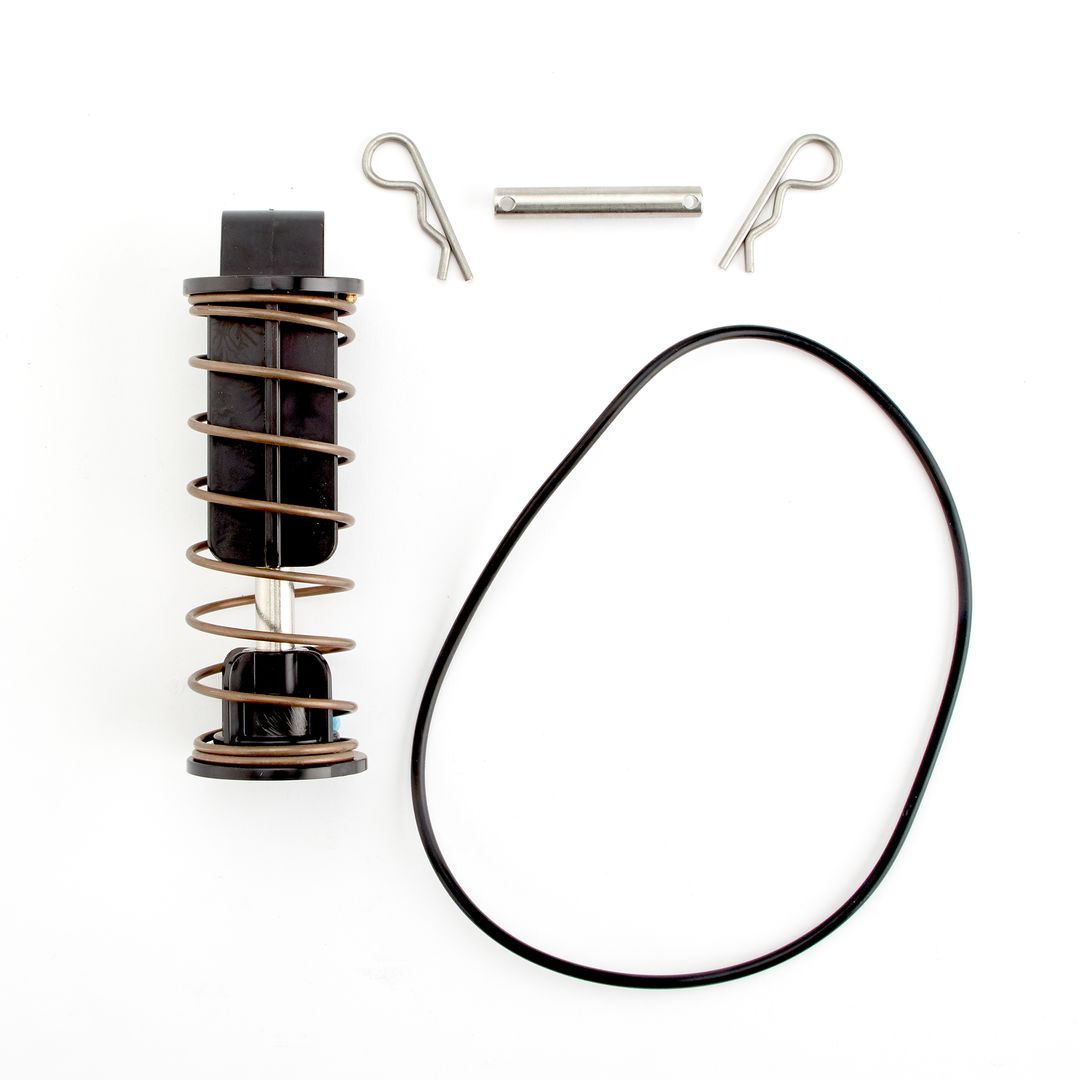

LFFRK 850-880-SM2 DCDA 2 1/2-3
Check Spring Kit |
</br>850, 880</br> |
</br> |
|
LFFRK 850-886V-D 2 1/2-3
Disc Kit |
</br>850, 856ST, 886V</br> |
</br> |
|
LFFRK 850-886V-S 2 1/2-3
Seat Ring/Arm Kit |
</br>856ST, 876VST, LF860, LF886</br> |
</br> |
|
FRK 850/856/870/876-RT 4
Complete Rubber Parts Kit |
</br>850, 856, 870, 876</br> |
2 Seat Discs, 2 Seat Gaskets, 2 Cover O-rings, 2 Cover Bushings, Cover Plate Gasket and O-ring, 4 Bulk Head Gaskets</br> |
|
FRK 850/856/870V/876V-D 4
Disc Kit |
</br>850, 856, 870V, 876V</br> |
Seat Disc Assembly, Cover O-ring, Nut, Washer, Lube</br> |
|
FRK 870/880 CBHF 4
Cover Assembly-Inlet |
</br>870, 880</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|

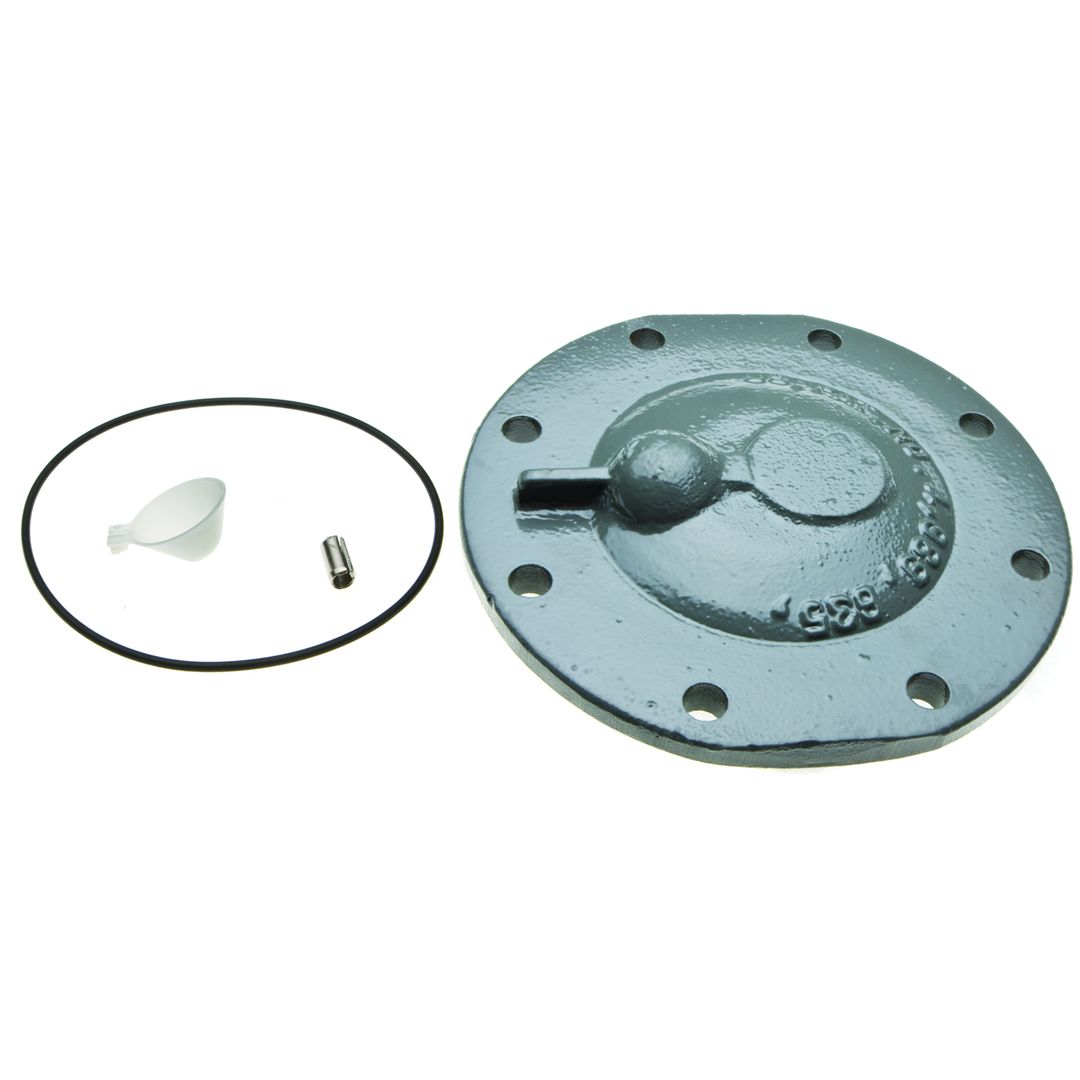

FRK 870V/876V/880V-C3 4
Cover Assembly-Outlet |
</br>870V, 876V</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|
LFFRK 85X/87X-RT 4
Complete Rubber Parts Kit |
</br>856ST, 876VST, LF860, LF886V</br> |
</br> |
|
LFFRK 850-880-SM2 DCDA 4
Check Spring Kit |
</br>850, 880</br> |
</br> |
|
LFFRK 850-886V-D 4
Disc Kit |
</br>850, 856ST, 886V</br> |
</br> |
|
LFFRK 850-886V-S 4
Seat Ring/Arm Kit |
</br>856ST, 876VST, LF860, LF886</br> |
</br> |
|
FRK 850/856/870/876-RT 6
Complete Rubber Parts Kit |
</br>850, 856, 870, 876</br> |
2 Seat Discs, 2 Seat Gaskets, 2 Cover O-rings, 2 Cover Bushings, Cover Plate Gasket and O-ring, 4 Bulk Head Gaskets</br> |
|
FRK 850/856/870V/876V-D 6
Disc Kit |
</br>850, 856, 807V, 876V</br> |
Seat Disc Assembly, Cover O-ring, Nut, Washer, Lube</br> |
|
FRK 870V/876V/880V-C4 6
Cover Assembly-Outlet |
</br>870V, 876V</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|
LFFRK 85X/87X-RT 6
Complete Rubber Parts Kit |
</br>856ST, 876VST, LF860, LF886V</br> |
</br> |
|
LFFRK 850/870-CK4 856/876 CK1 860/880 CK2 6
Check Replacement Kit-Inlet |
</br>850, 870</br> |
</br> |
|
LFFRK 850-880-SM2 DCDA 6
Check Spring Kit |
</br>850, 880</br> |
</br> |
|
LFFRK 850-886V-D 6
Disc Kit |
</br>850, 856ST, 886V</br> |
</br> |
|
LFFRK 850-886V-S 6
Seat Ring/Arm Kit |
</br>856ST, 876VST, LF860, LF886</br> |
</br> |
|
FRK 870/880 CBHF 8-10
Cover Assembly-Inlet |
</br>870, 880</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|
FRK 870V/876V/880V-C5 8-10
Cover Assembly-Outlet |
</br>870V, 876V</br> |
Cover Assembly, O-ring, Socket Bearing</br> |
|
LFFRK 85X/87X-RT 8-10
Complete Rubber Parts Kit |
</br>856ST, 876VST, LF860, LF886V</br> |
</br> |
|
LFFRK 850-866V-D 8-10 870-886 8
Disc Kit |
</br>850, 856ST, 886V</br> |
</br> |
|
LFFRK 850-880-SM2 DCDA 8-10
Check Spring Kit |
</br>850, 880</br> |
</br> |
|
LFFRK 850-886V-S 8-10
Seat Ring/Arm Kit |
</br>856ST, 876VST, LF860, LF886</br> |
</br> |
|
LFFRK 850-CK4 8-10 870 CK4 8
Check Kit |
</br>856ST, 876VST, LF860, LF880V</br> |
</br> |
